Home >> Kia >> 2004 >> Sedona EX >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Troubleshooting

3.5L Engine: Troubleshooting

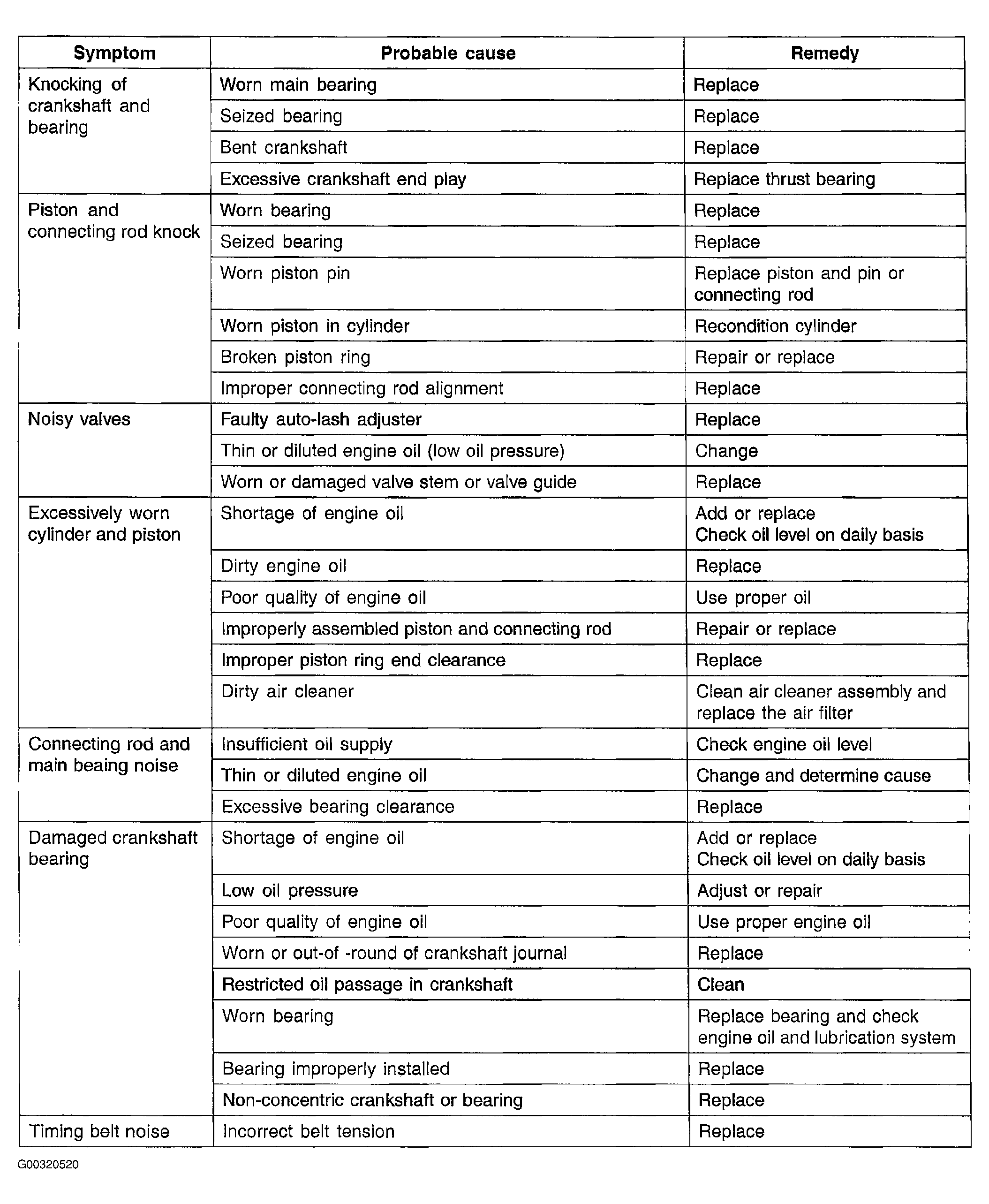

Fig 1: Troubleshooting (1 Of 3)
G00320520Courtesy of KIA MOTORS AMERICA, INC.

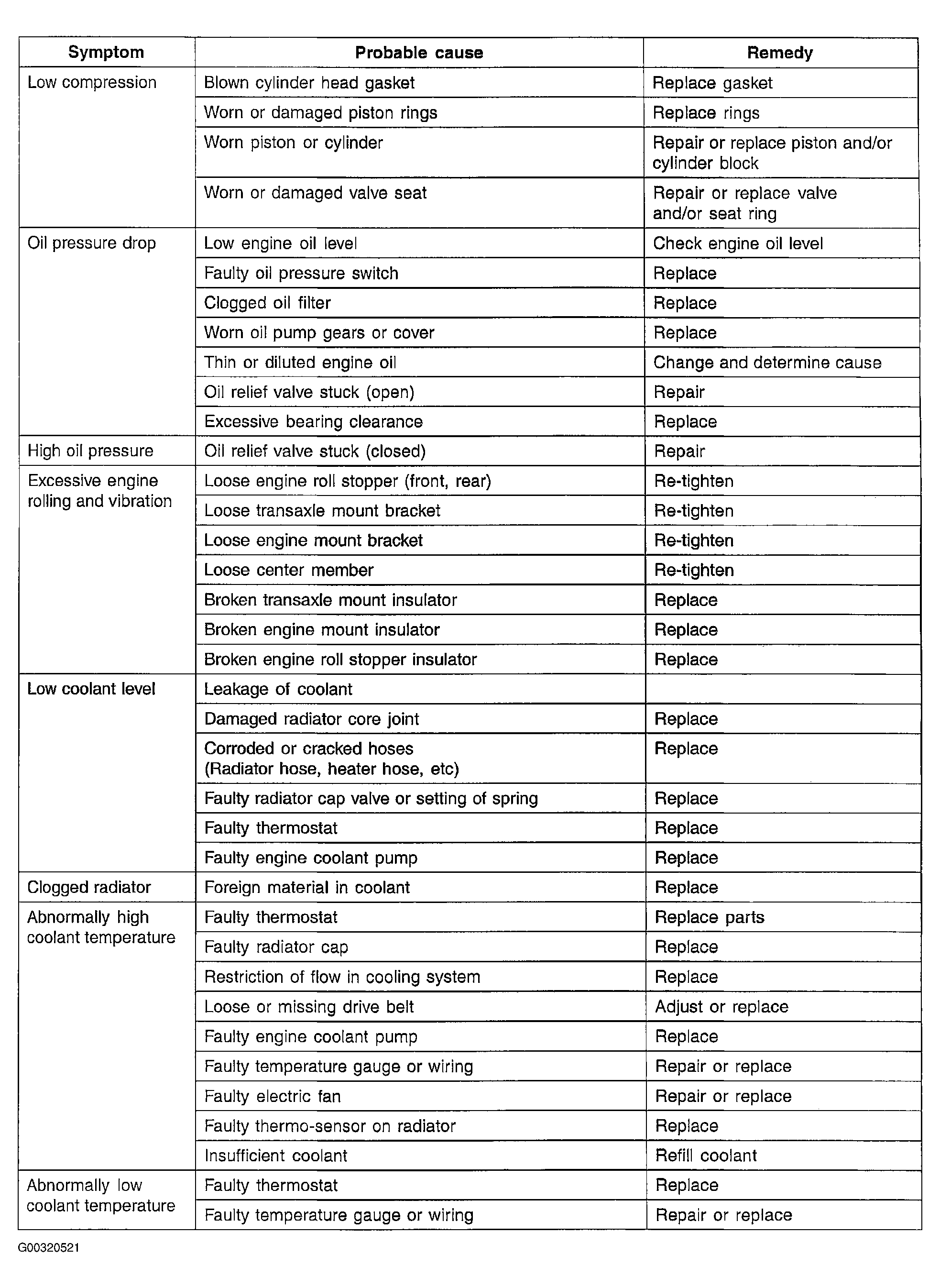

Fig 2: Troubleshooting (2 Of 3)
G00320521Courtesy of KIA MOTORS AMERICA, INC.

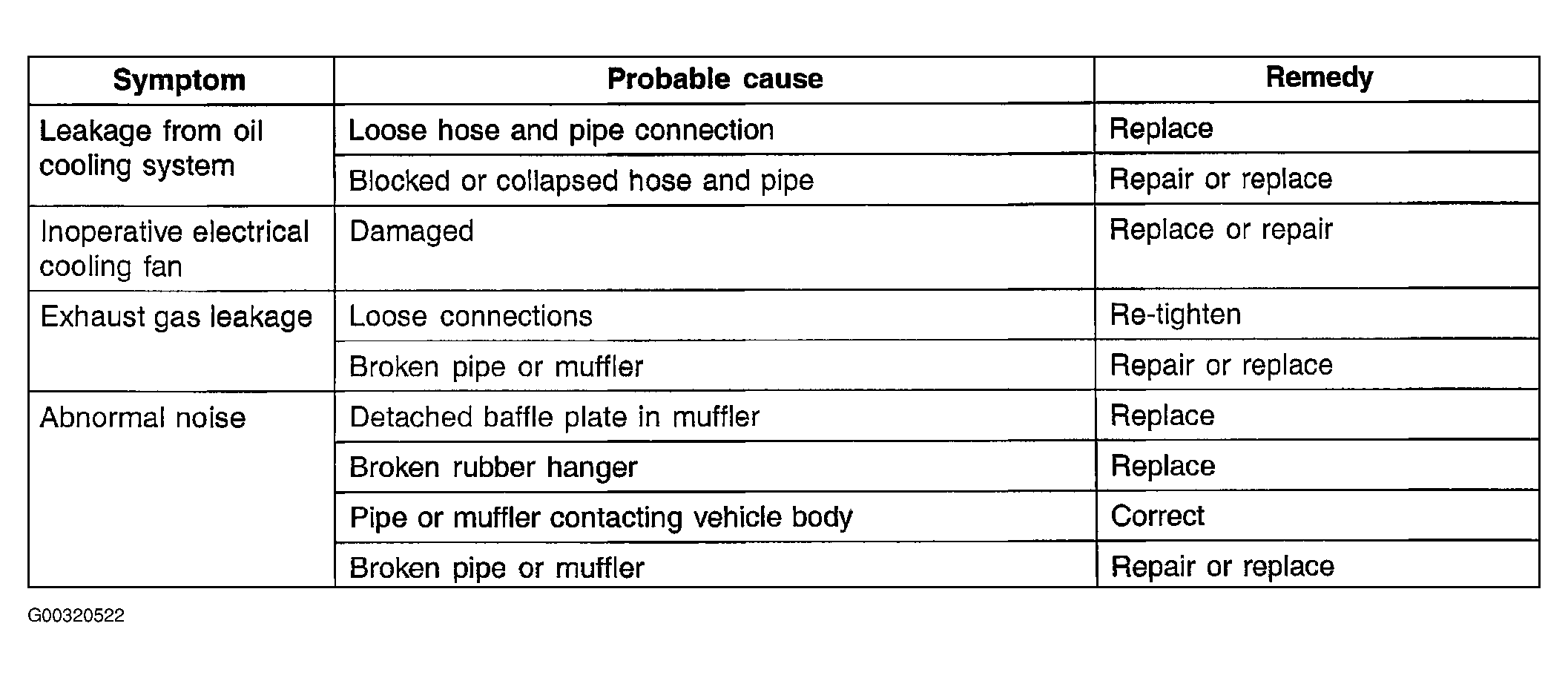

Fig 3: Troubleshooting (3 Of 3)
G00320522Courtesy of KIA MOTORS AMERICA, INC.
