Engine Mounts

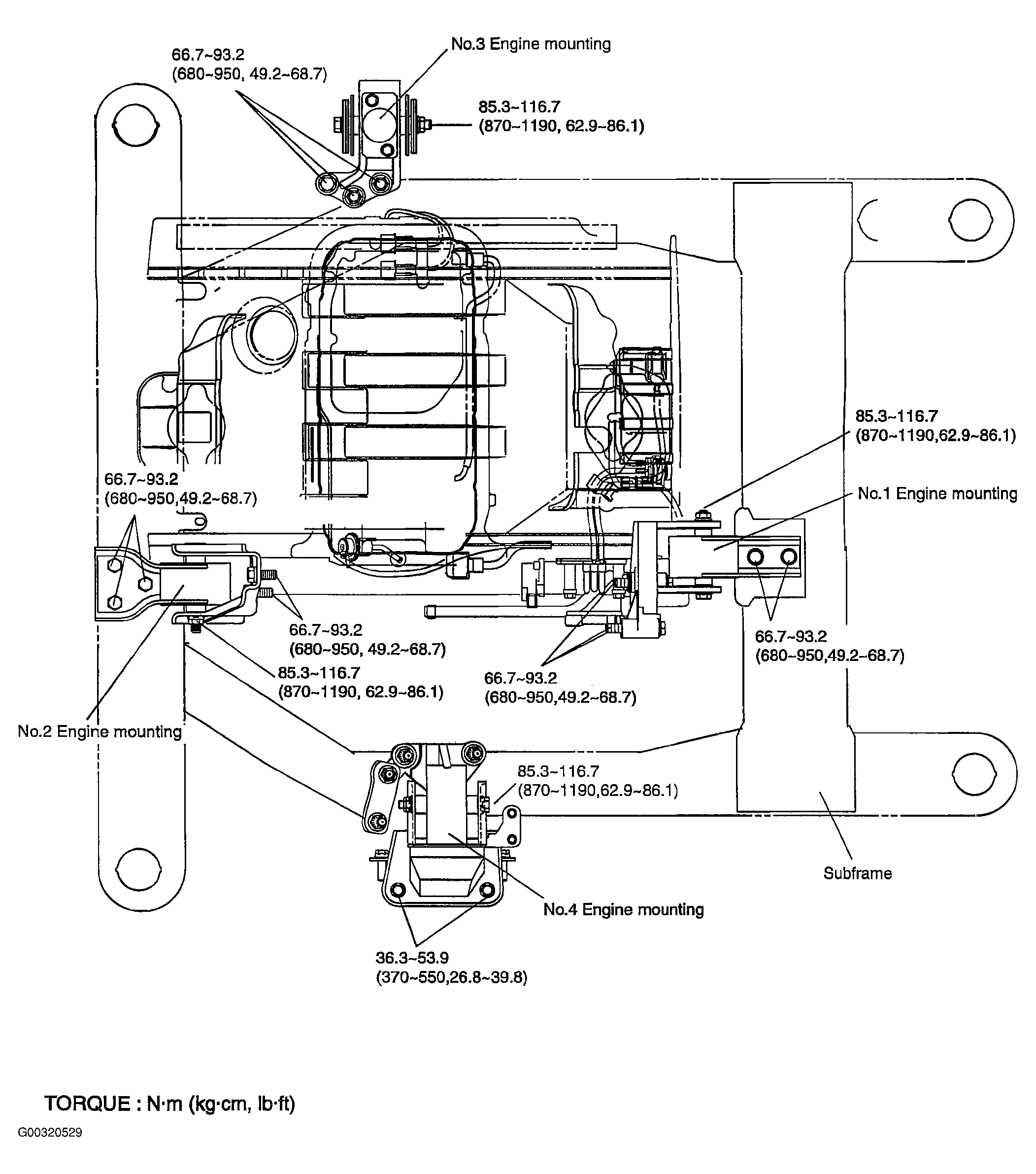

Fig 1: Engine Mounts Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

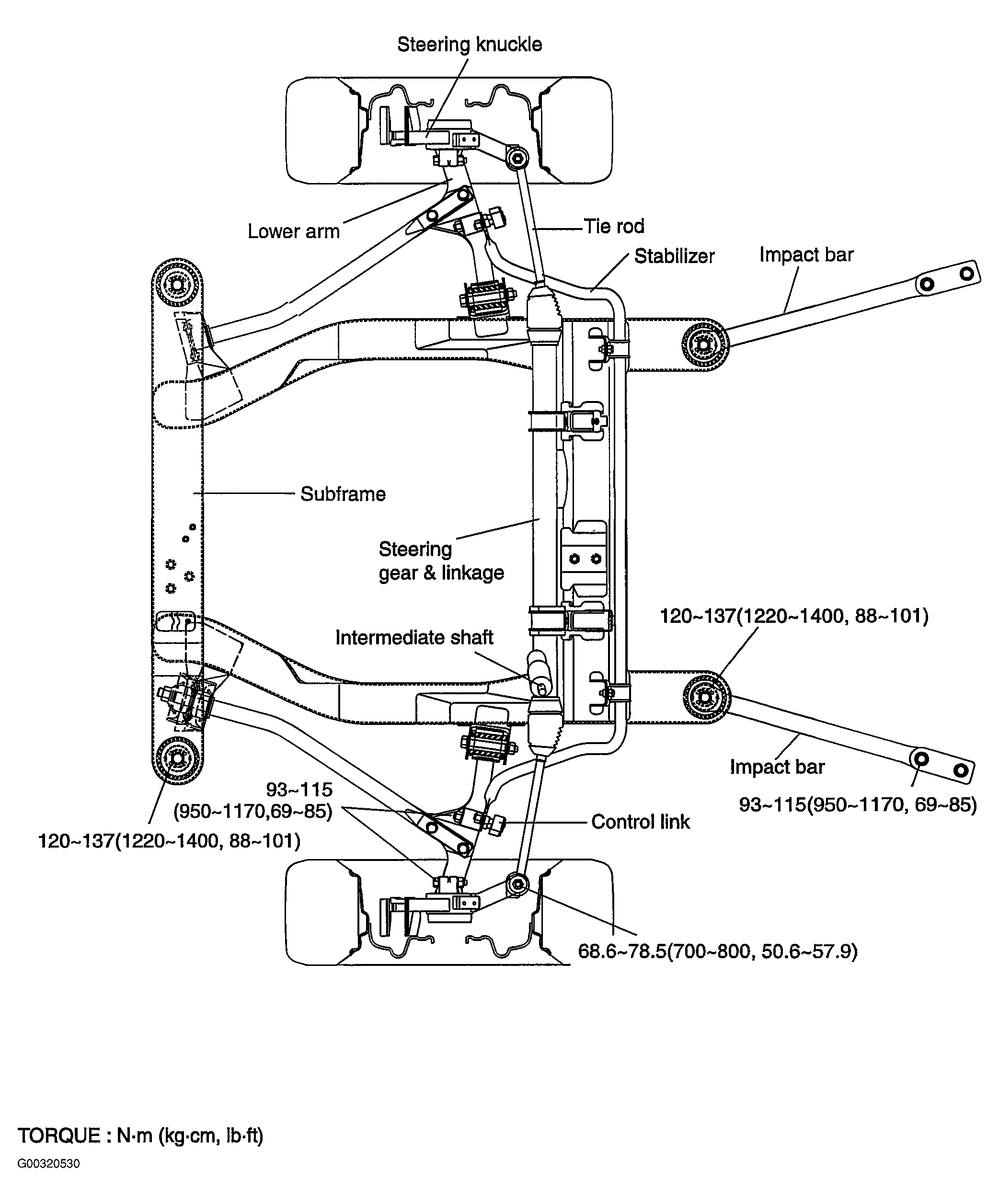

Fig 2: Engine Mounts Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
