Connecting Rod & Piston Disassembly & Inspection: Components

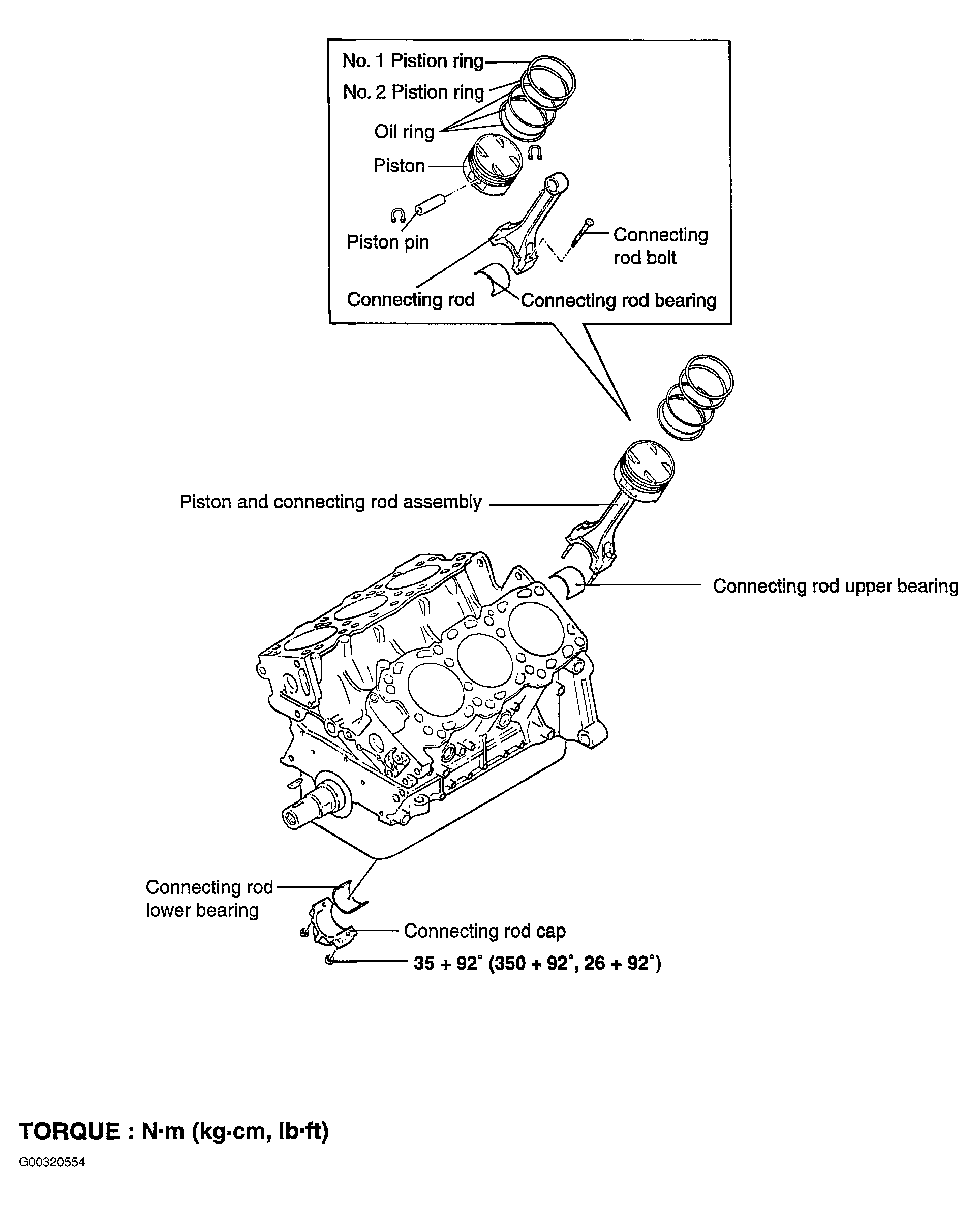

Fig 1: Connecting Rod & Piston Components

G00320554

Courtesy of KIA MOTORS AMERICA, INC.
