Home >> Kia >> 2004 >> Rio L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Component Connector Pinout Values

Component Connector Pinout Values

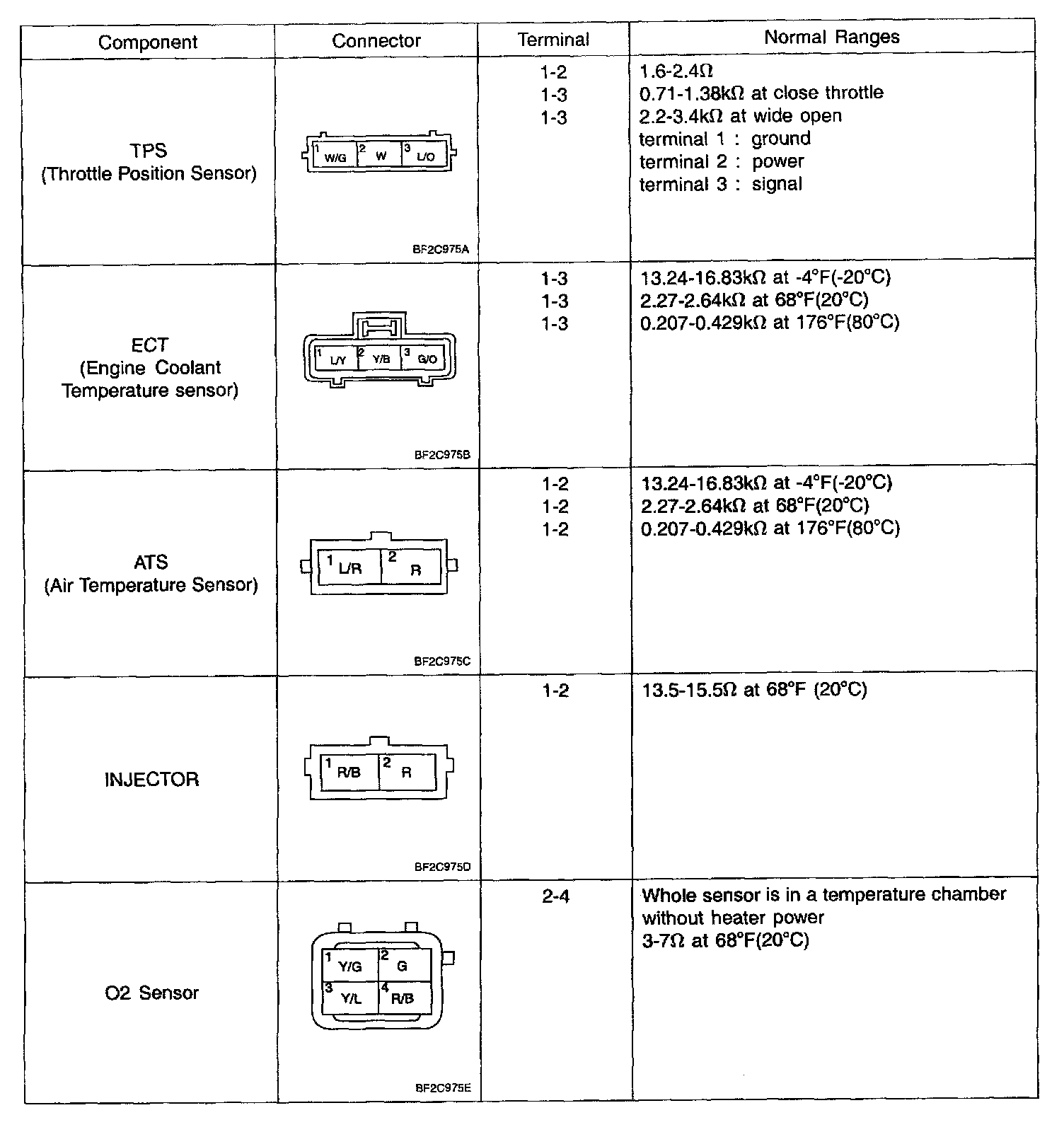

Component Inspection Part 1:

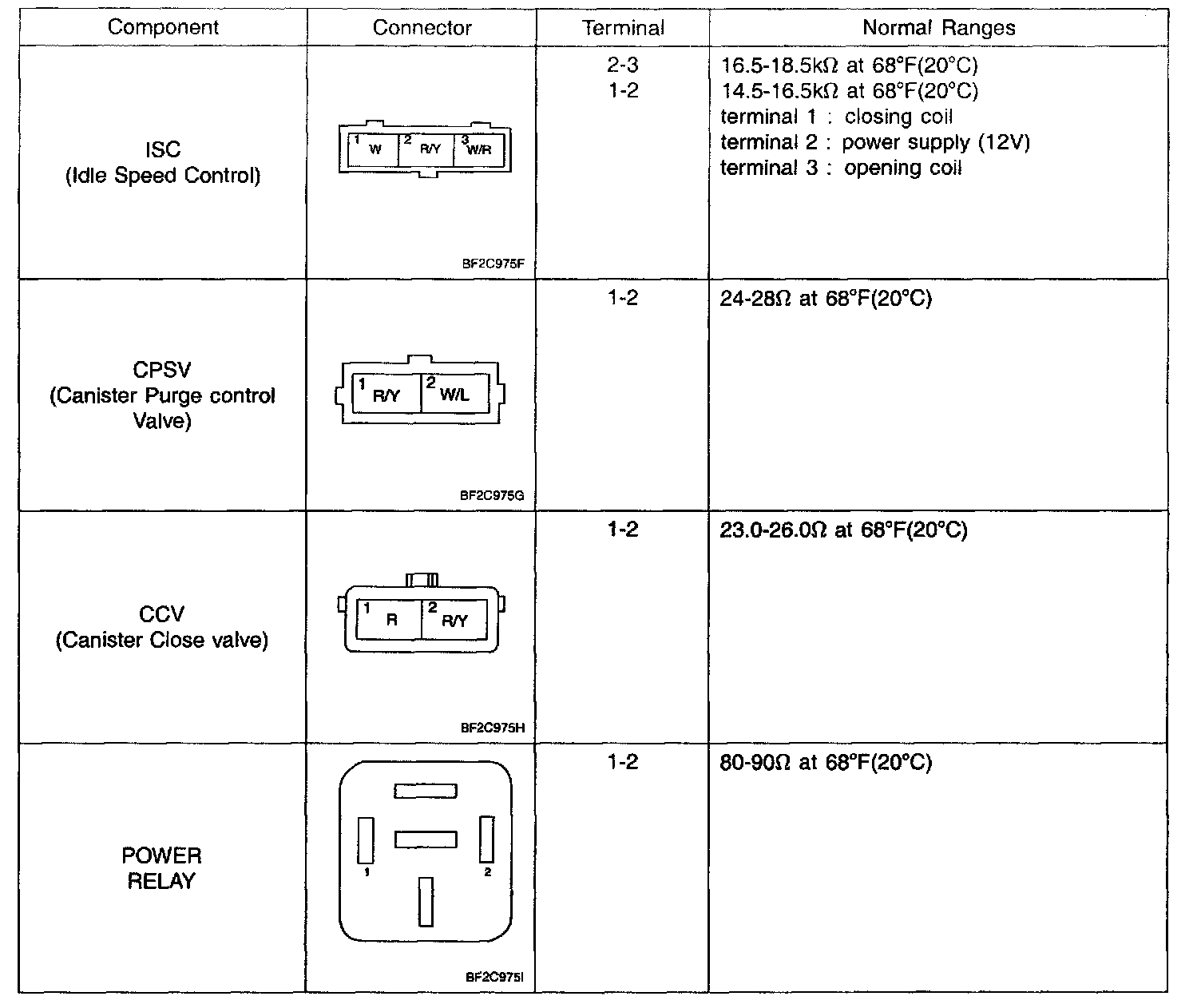

Component Inspection Part 2:
