Radiator Cooling Fan
>>
System Diagram
System Diagram

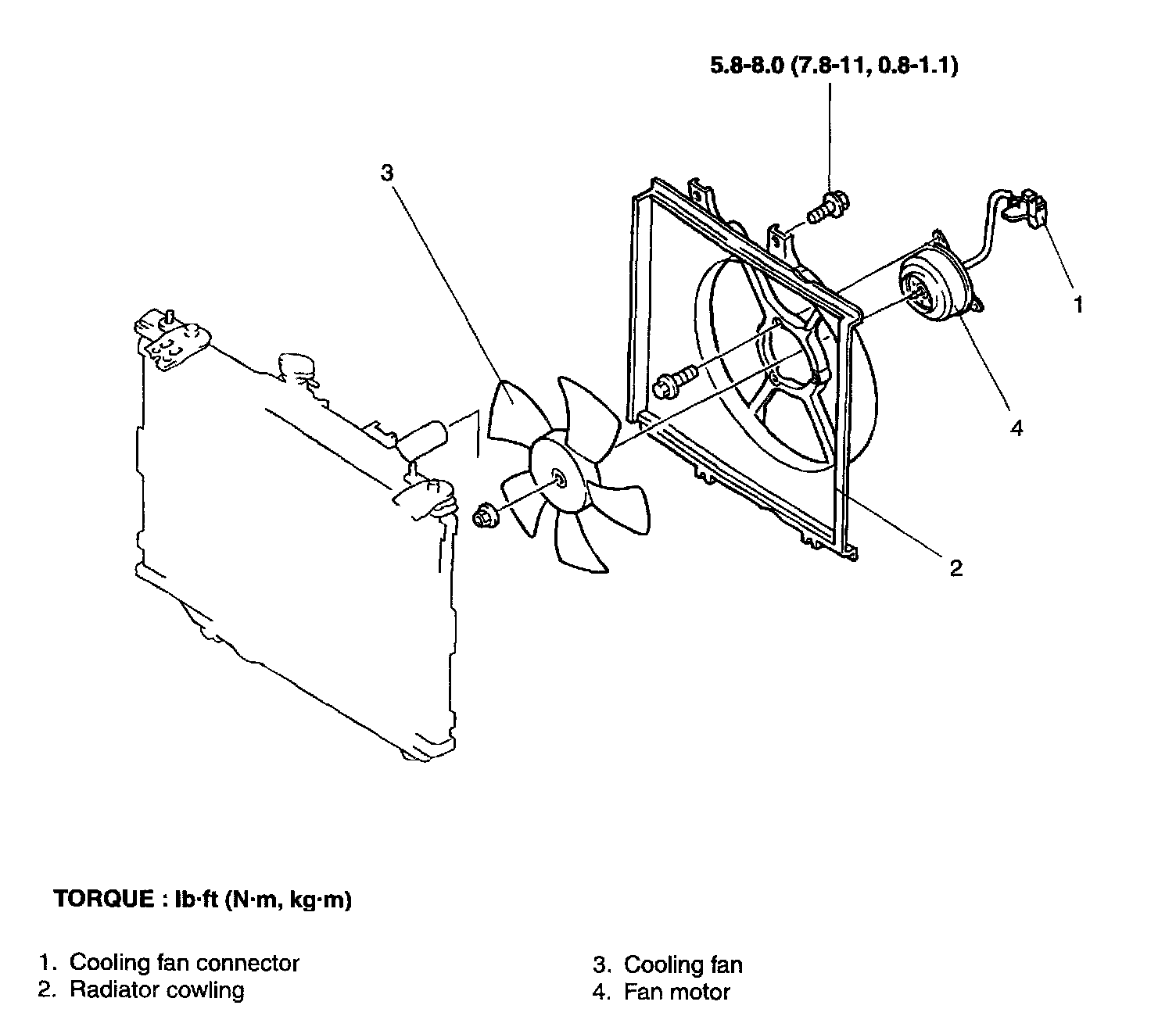

RADIATOR FAN MOTOR
COMPONENT
Remove components in the order shown in figure.
