Home >> Kia >> 2004 >> Rio L4-1.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection

Brakes and Traction Control: Testing and Inspection

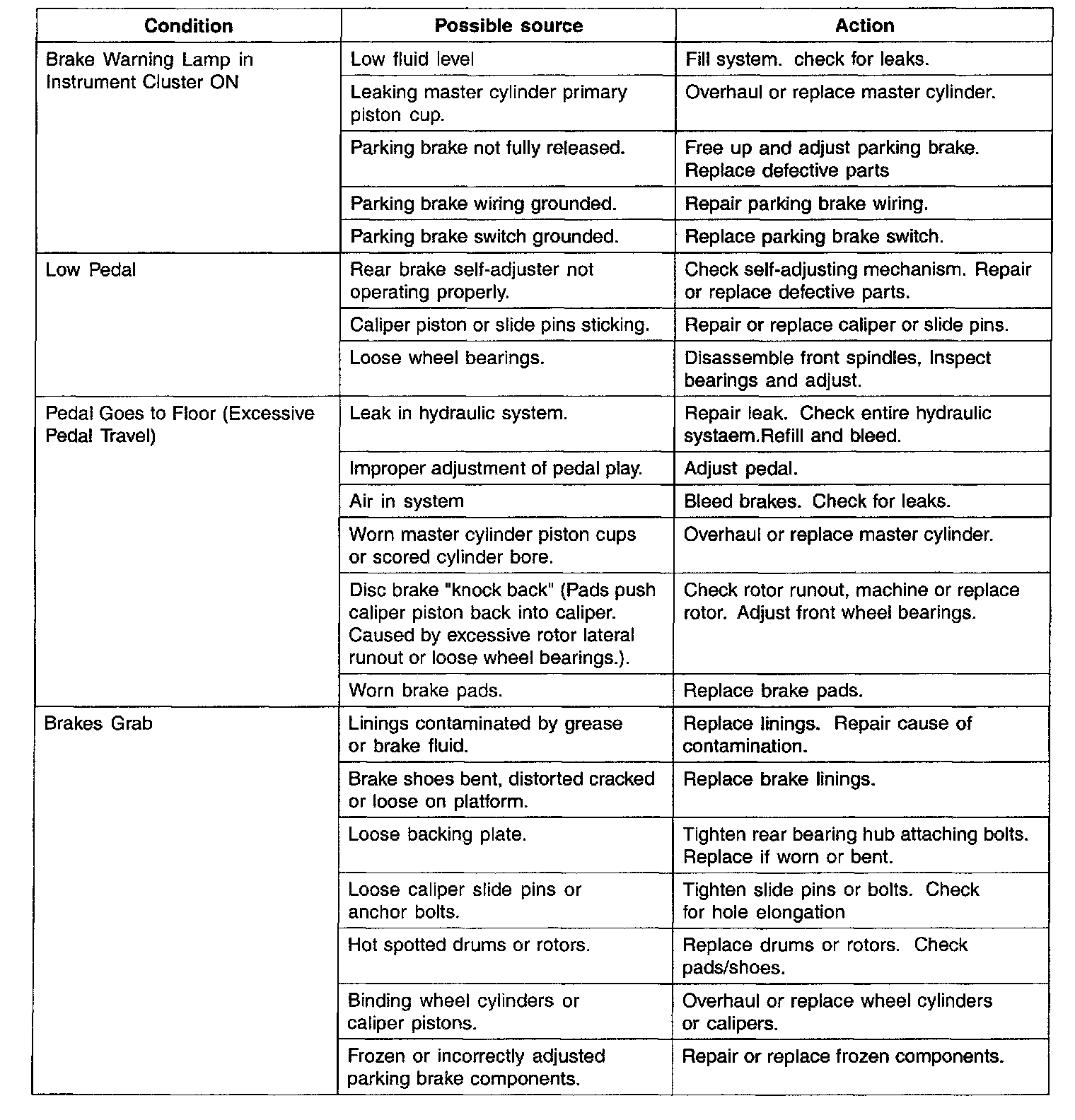

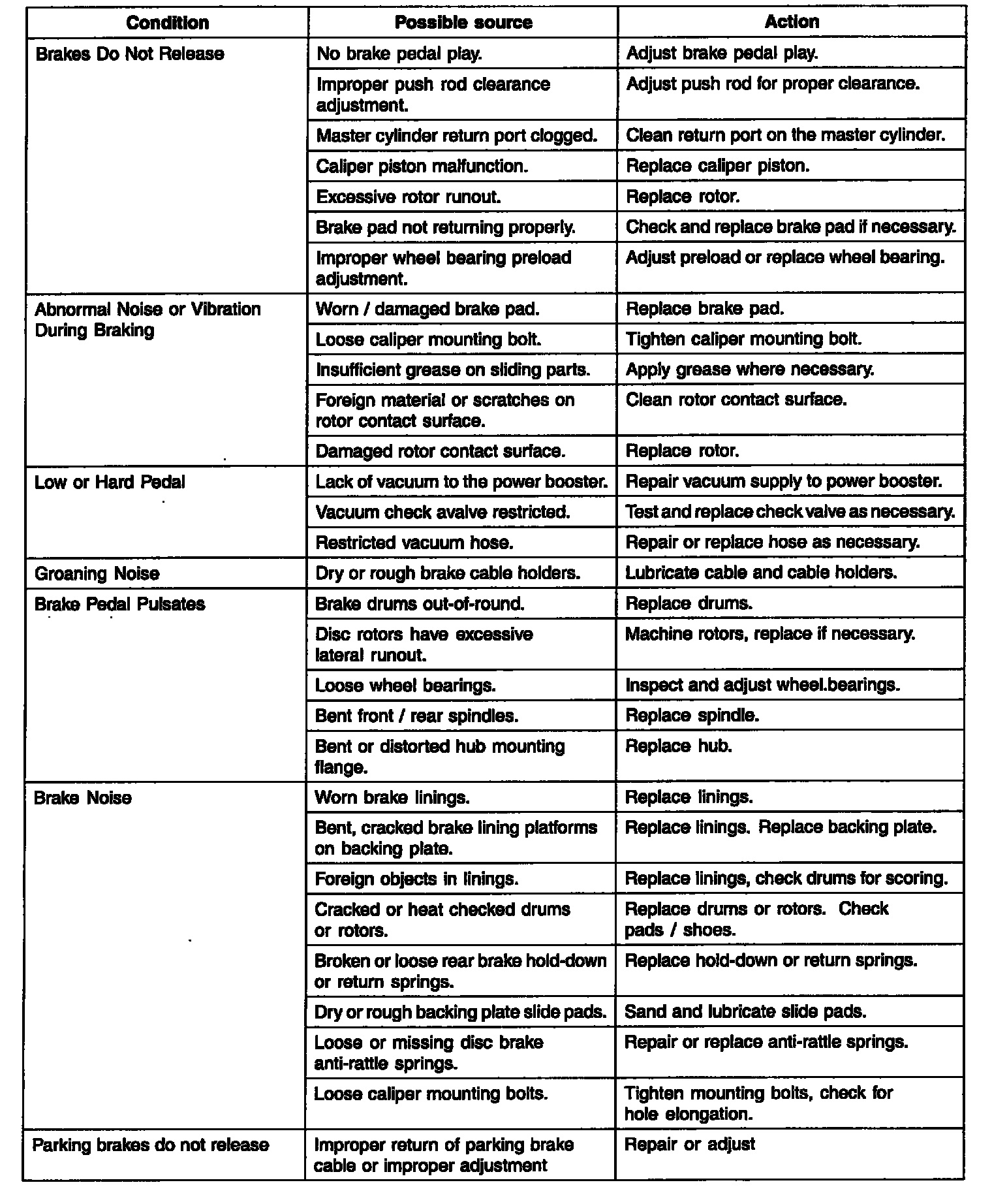

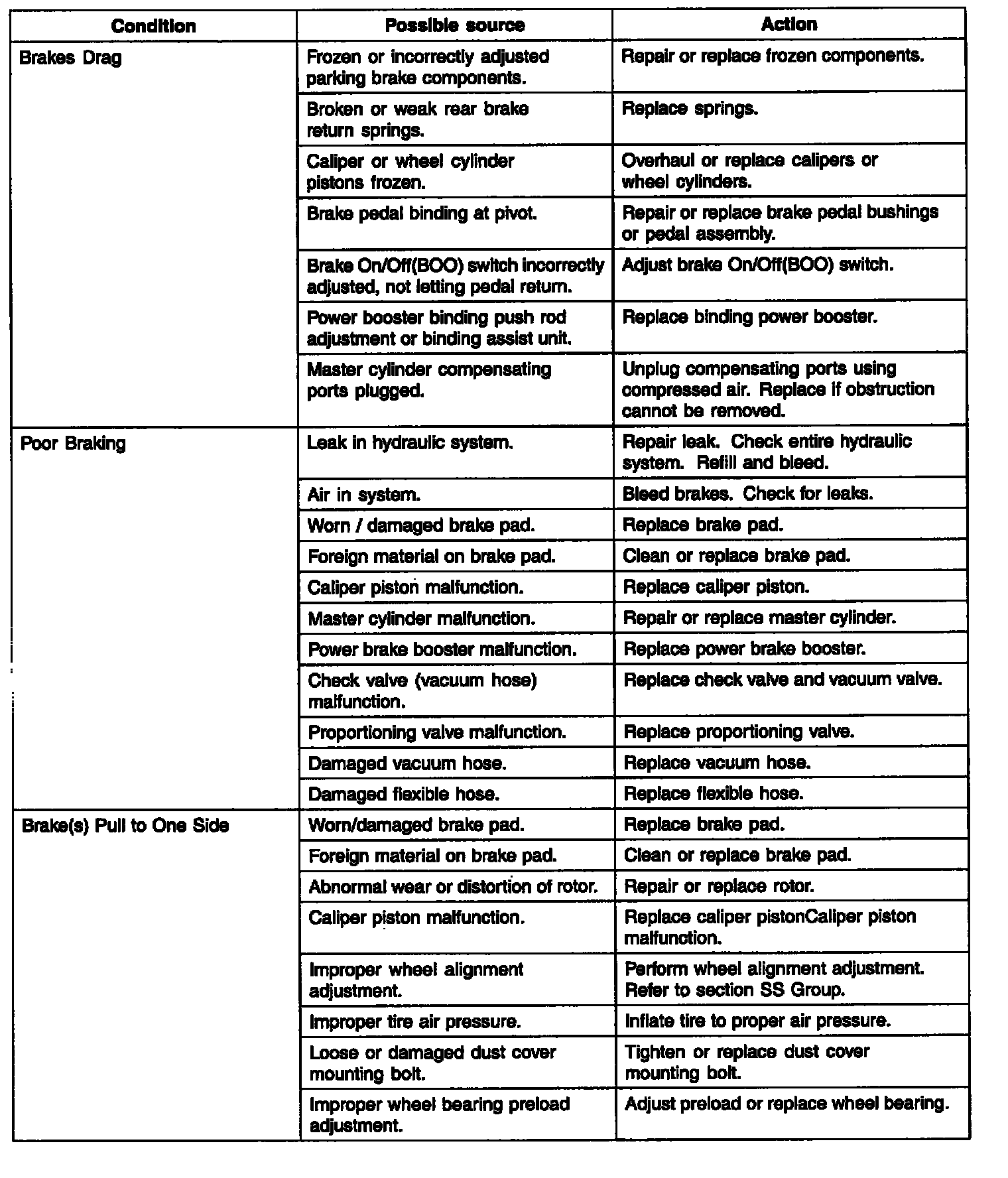

TROUBLESHOOTING GUIDE

Test 1 Of 4:




Test 2 Of 4:




Test 3 Of 4:




Test 4 Of 4:
