Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Windows and Glass >> Power Window Control Module >> Locations

Power Window Control Module: Locations

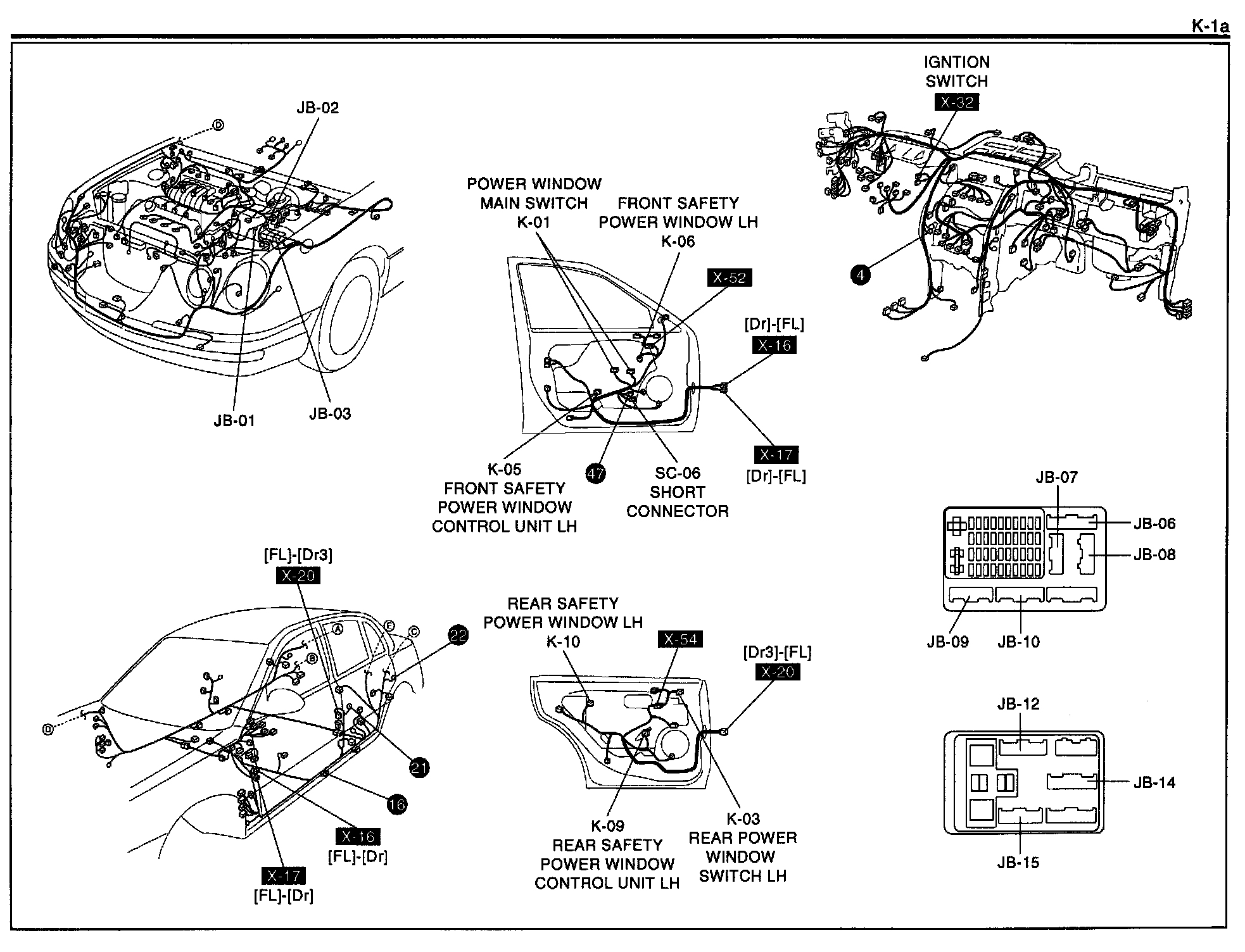

Routing View K-1a:

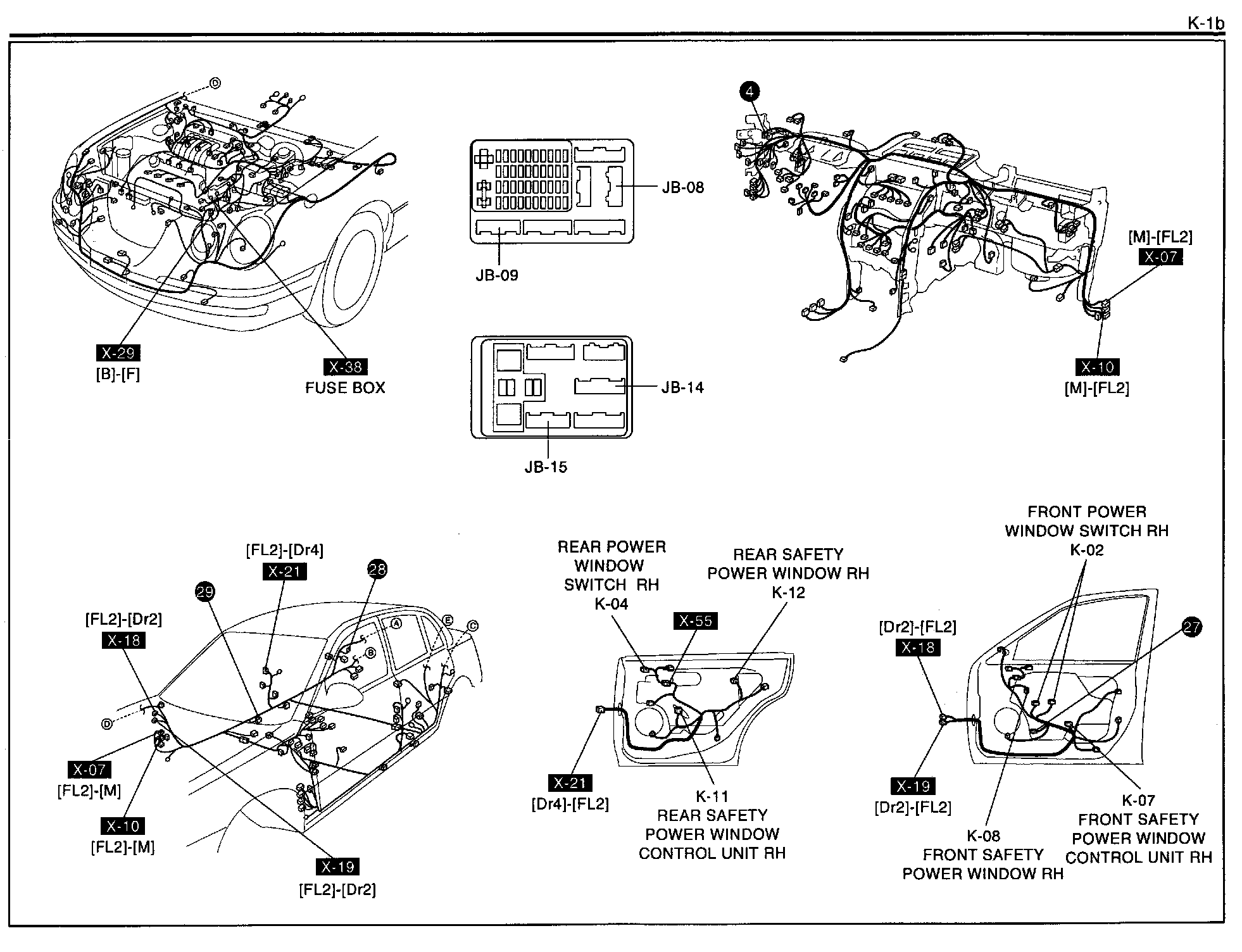

Routing View K-1b:
