Kia
>>
2004
>>
Amanti V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
Memory Positioning Systems

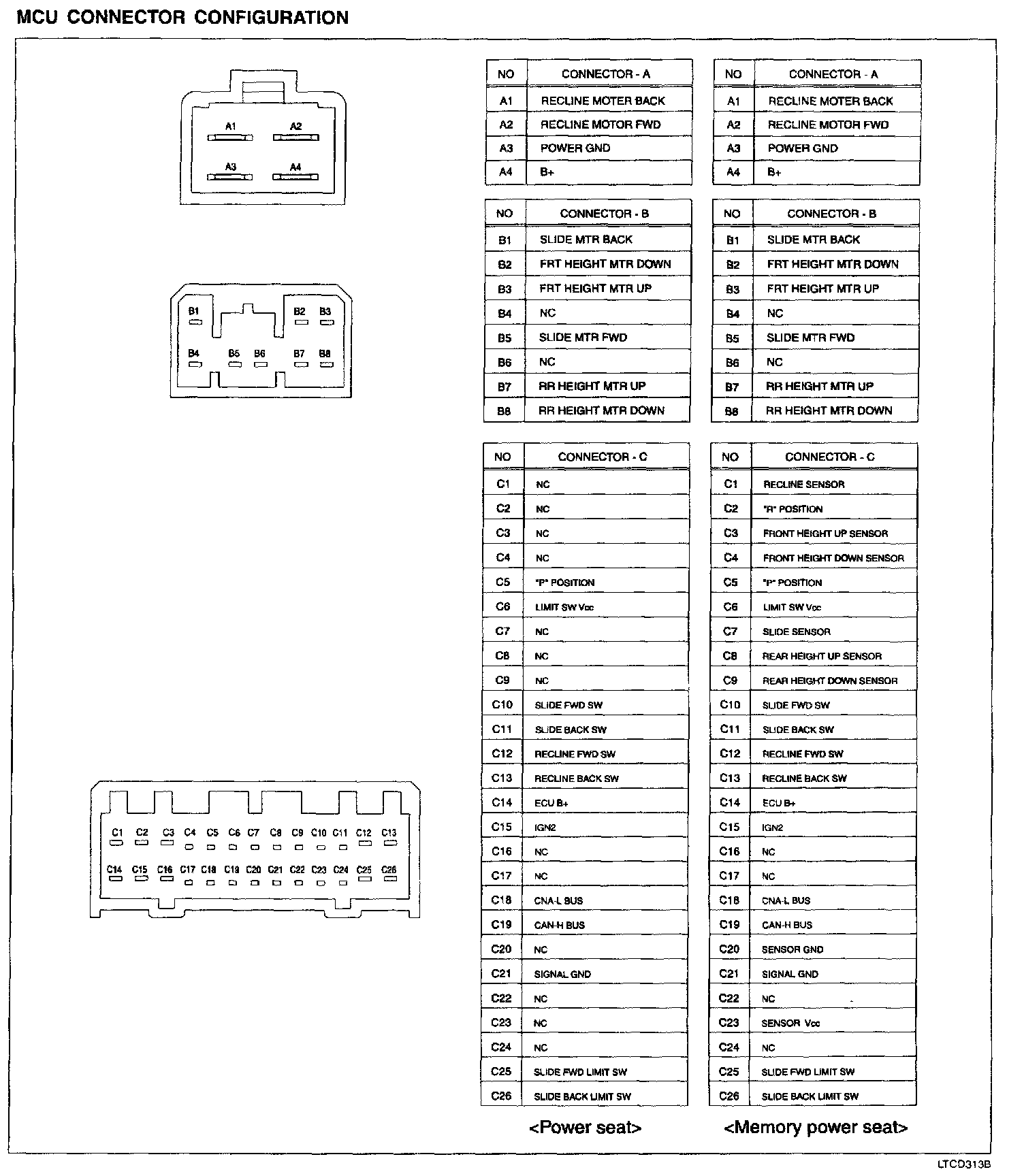

MCU Connector Configuration:
