SPECTRA HARD START

TECHNICAL SERVICE BULLETIN

SUBJECT

Spectra Hard Start

This bulletin provides information related to cold engine hard start. Some 2002 and 2003 Spectra models built before 2/4/03 may experience hard starting when the engine is cold. The condition usually occurs in ambient temperatures over 80°F. Once started, engine runs normally. To reduce incidence of cold engine hard start complaints, the ECM logic was revised from 2/4/03 production.

For 2002 and 2003 Spectra complaint vehicles produced before 2/4/03, reprogramming software has been made available for the Hi-Scan Pro for use as a field fix.

MY	Current ECM P/N	New ECM P/N	Current ROM No.	New ROM No.
02	0K2NA 18 881	No Change	F2D8NS1C	F2D8NS3C
	0K2NA 18 881A	No Change	F2D8NS2C	F2D8NS4C
03	39111 2Y600	39111 2Y610	F3D8NS0C	F3D8NS1C

Use the procedure on the following pages to reprogram the ECM.

REPROGRAMMING PROCEDURE

1. Connect OBDII cable to the Hi-Scan Pro.

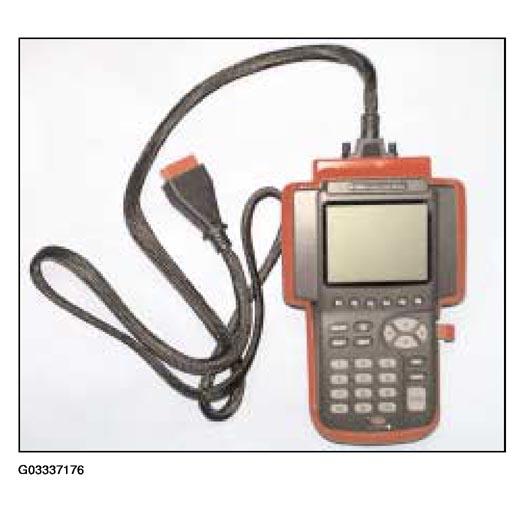

Fig 1: Identifying Hi-Scan Pro

2. Remove the program card from the upper slot on the Hi-Scan Pro and insert the reprogramming card.

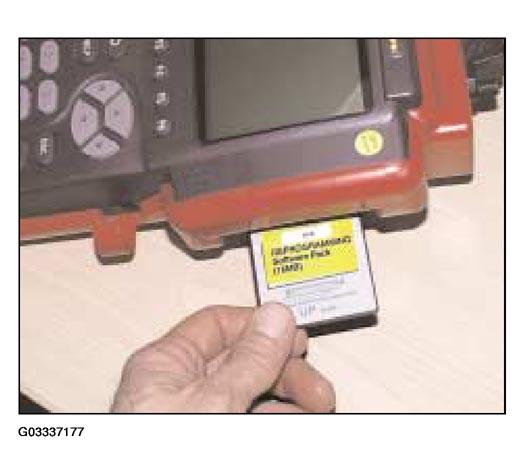

Fig 2: Inserting Reprogramming Card

3. Connect the Hi-Scan Pro to the OBDII connector located under the dash on the driver side.
   NOTE: Any interruptions will prevent proper reprogramming. Make sure connectors are securely and completely inserted. Leave ignition key in the on position during reprogramming.

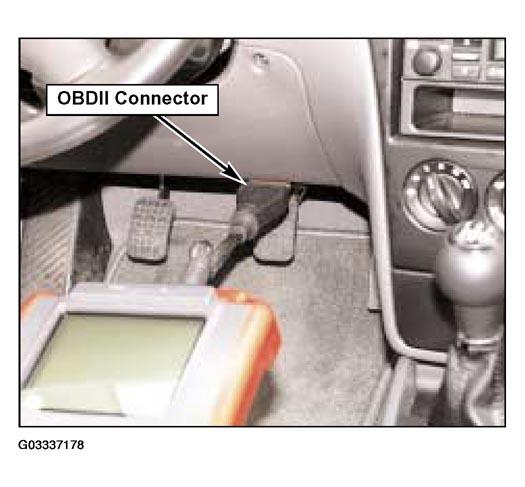

Fig 3: Connecting Hi-Scan Pro To OBDII Connector

4. Turn ignition key to the "on" position.
5. Turn Hi-Scan Pro on, select "09 SPECTRA 1.8D START ABILITY" and press the "ENTER" key.

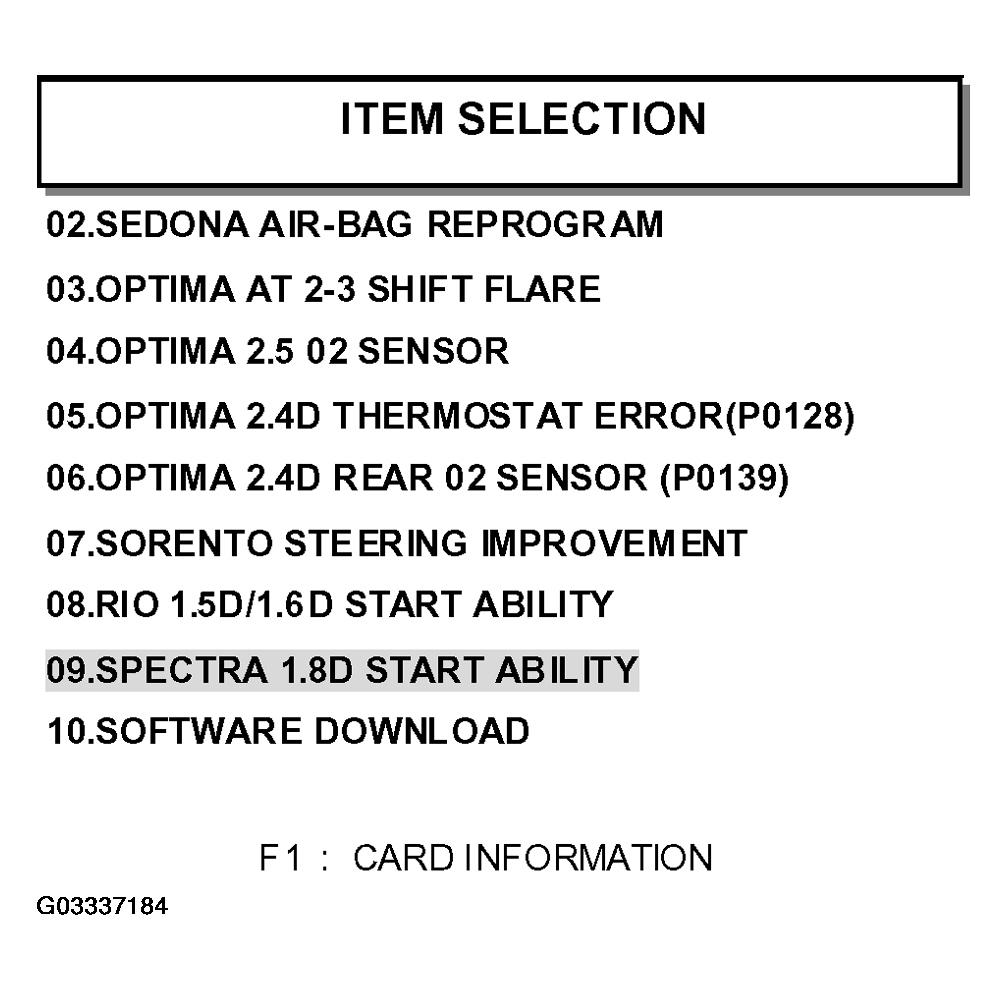

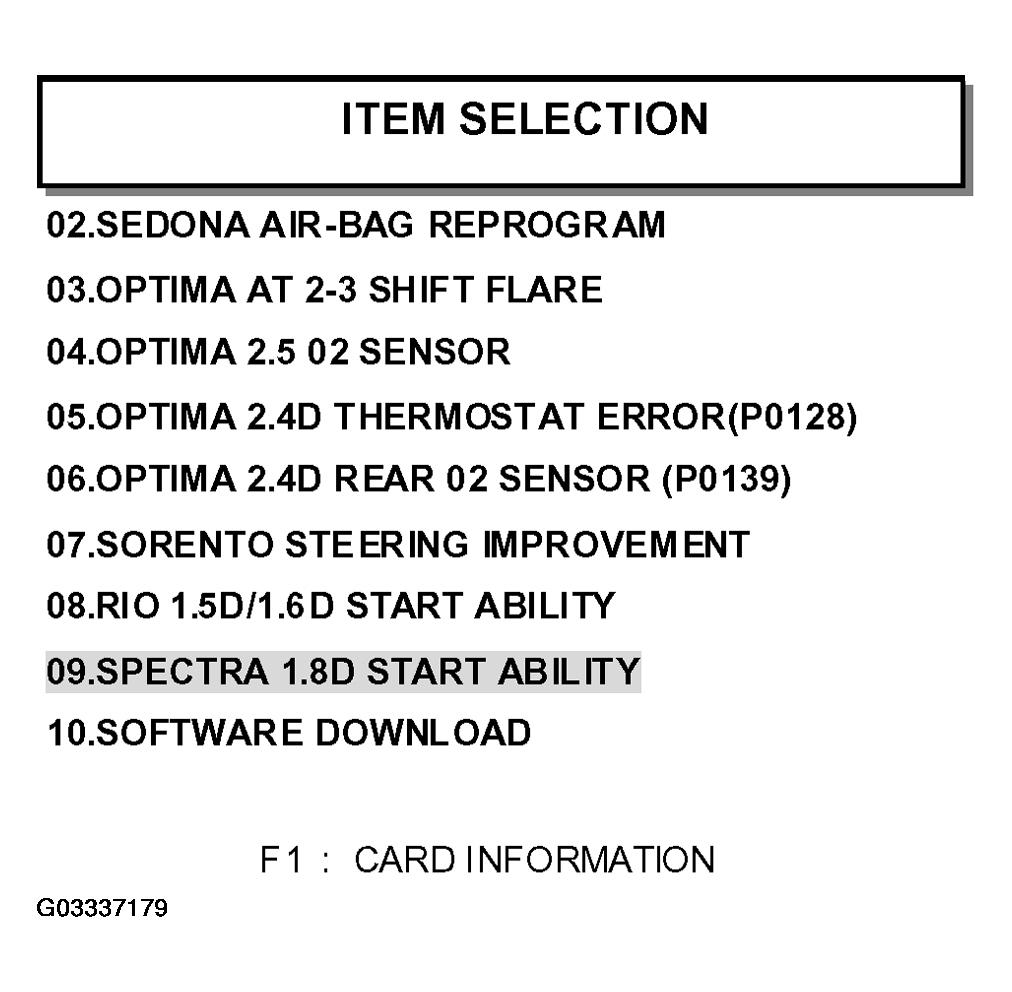

Fig 4: Selecting "09 SPECTRA 1.8D START ABILITY"

6. Select "01 SPECTRA 02/03MY [AUTO MODE]" and press the "ENTER" key.

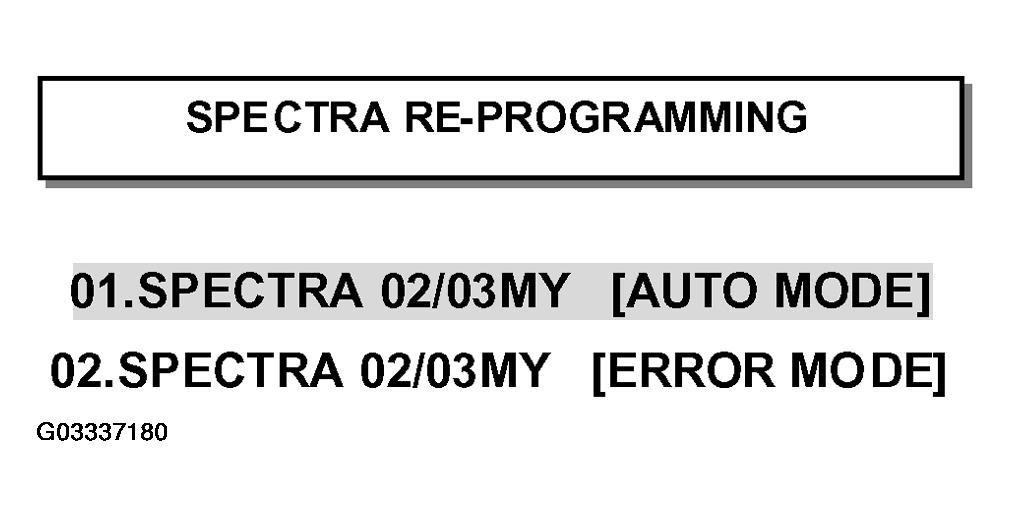

Fig 5: Selecting "01 SPECTRA 02/03MY [AUTO MODE]"

7. At the prompt, enter your password "0525" and press the "ENTER" key.

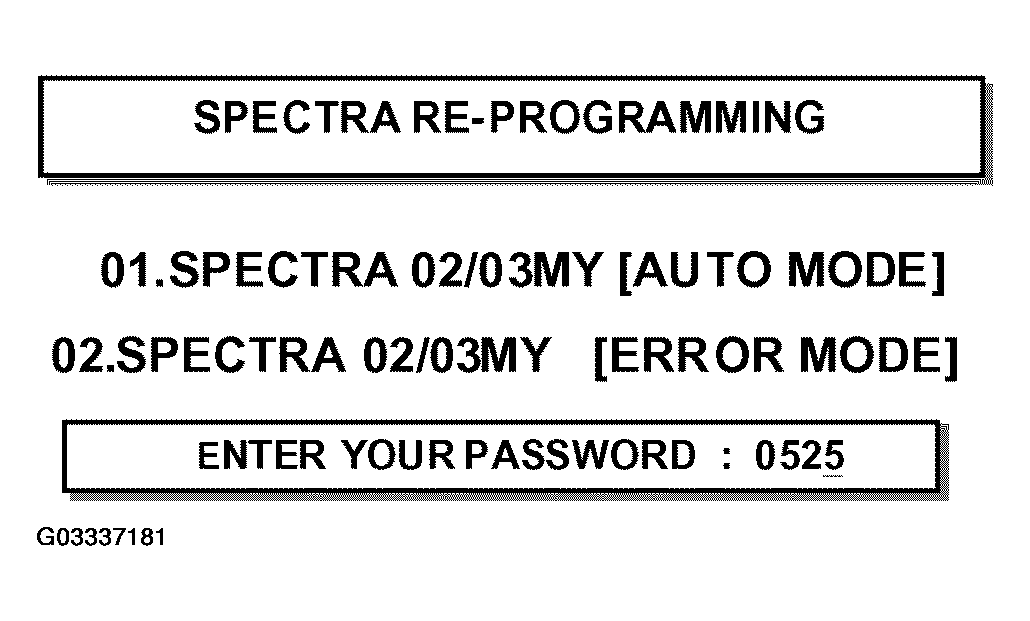

   Fig 6: Entering Password 0525



   Reprogramming will proceed automatically as shown.

   Fig 7: Reprogramming In Progress Display


   NOTE: Some 02MY vehicles have ROM ID F2D8NS0C and may give an error message "ECM is a different type". These ECMs will need to be reprogrammed in error mode as P/N 0K2NA 18 881. Password 8881.
8. When "REPROGRAMMING COMPLETED" message is displayed, turn ignition key to the "OFF" position and disconnect Hi-Scan Pro from the vehicle. Wait at least 20 seconds, start vehicle and verify normal operation.
   NOTE: If the reprogramming did NOT complete properly or was interrupted, repeat the process using the following procedure.
Fig 8: Reprogramming Completed Display

9. Turn ignition key to the "ON" position.
10. Turn Hi-Scan Pro on, select "09 SPECTRA 1.8D START ABILITY" and press the "ENTER" key.
Fig 9: Selecting "09 SPECTRA 1.8D START ABILITY"

11. Select "02 SPECTRA 02/03MY [ERROR MODE]" and press the "ENTER" key.

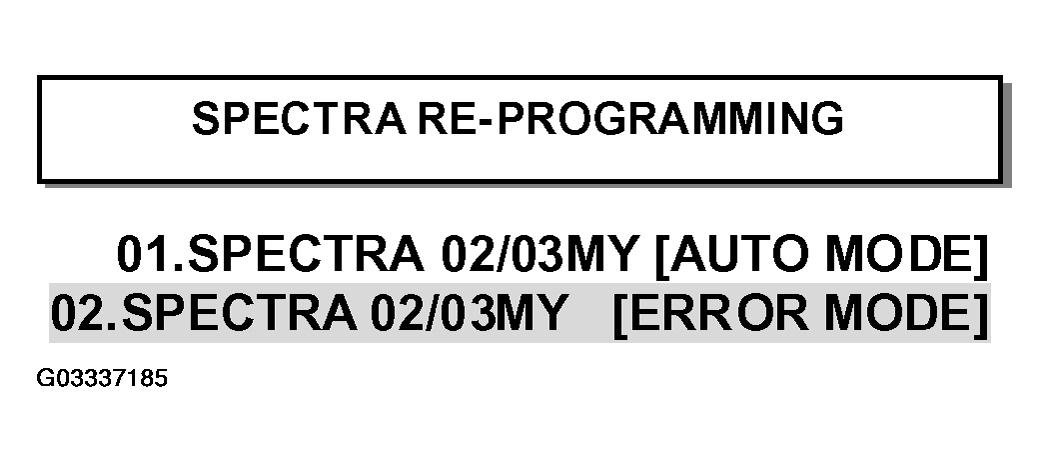

Fig 10: Selecting "02 SPECTRA 02/03MY [ERROR MODE]"

12. Select model year/ECM part number from the list and press the "ENTER" key.

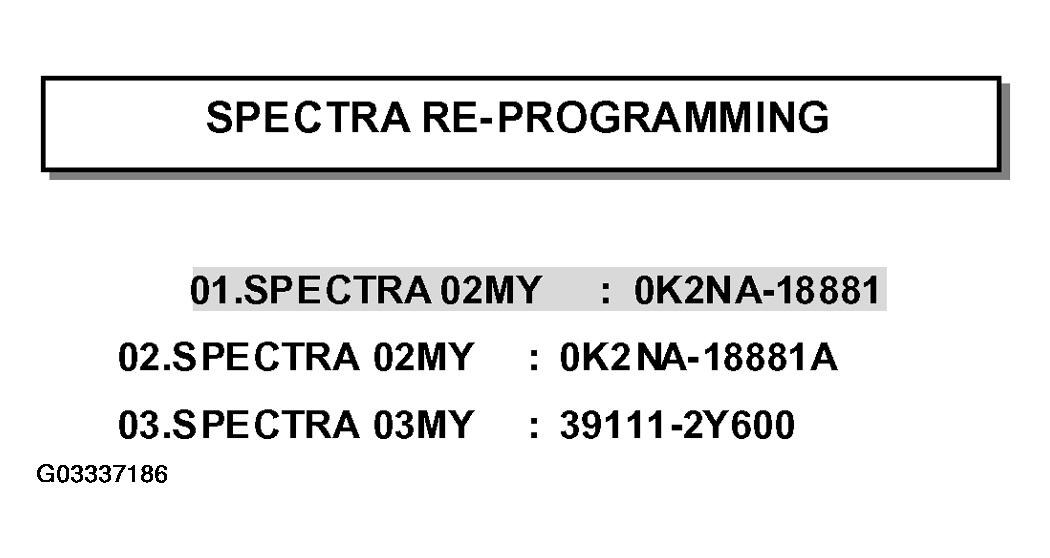

Fig 11: Selecting Model Year/ECM P/N

13. At the prompt, enter your password from the table below and press the "ENTER" key.
    Fig 12: Password Table

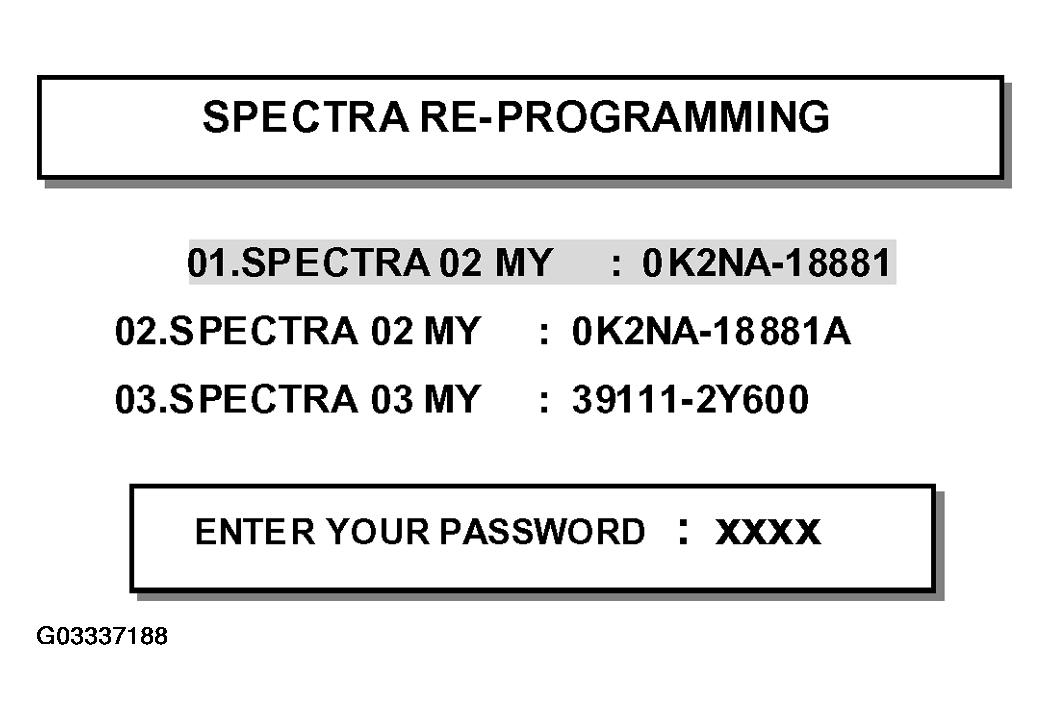

    Fig 13: Entering Password From Password Table



    Reprogramming will proceed as shown.

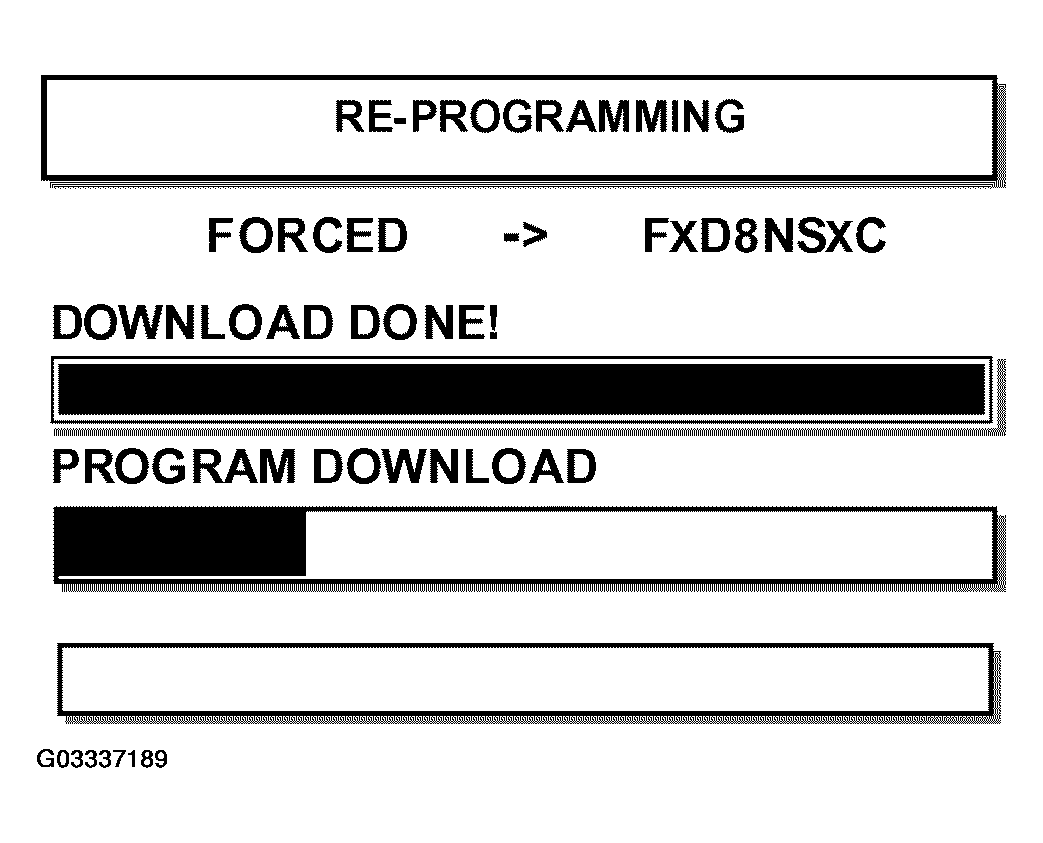

Fig 14: Re-Programming In Progress Display

14. When "REPROGRAMMING COMPLETED" message is displayed, turn ignition key to the "OFF" position and disconnect Hi-Scan Pro from the vehicle. Wait at least 20 seconds, start vehicle and verify normal operation.
Fig 15: Re-Programming Completed Display

AFFECTED PRODUCTION RANGE

2002 and 2003 Spectra models produced before 2/4/03.

WARRANTY CLAIM INFORMATION

Claim Type	Causal P/N	Qty.	Cond. Code	Cause Code	Repair Description	Labor OP Code	Time	Related Parts	Qty.
W	0K2NA 18 881	0	N01	C40	Reprogram ECM	95912A0F	0.3	None	0
