Home >> Kia >> 2003 >> Sedona V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

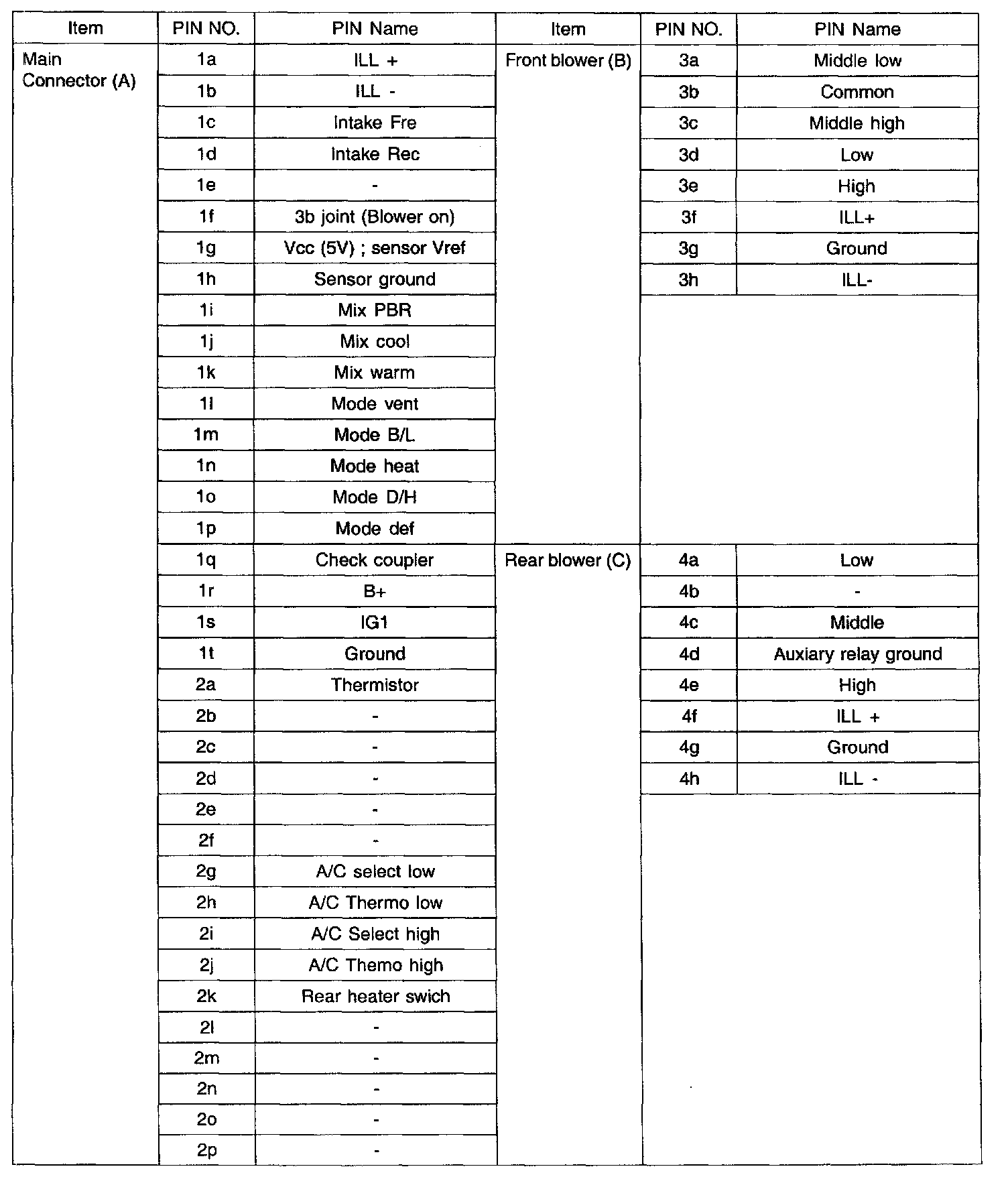

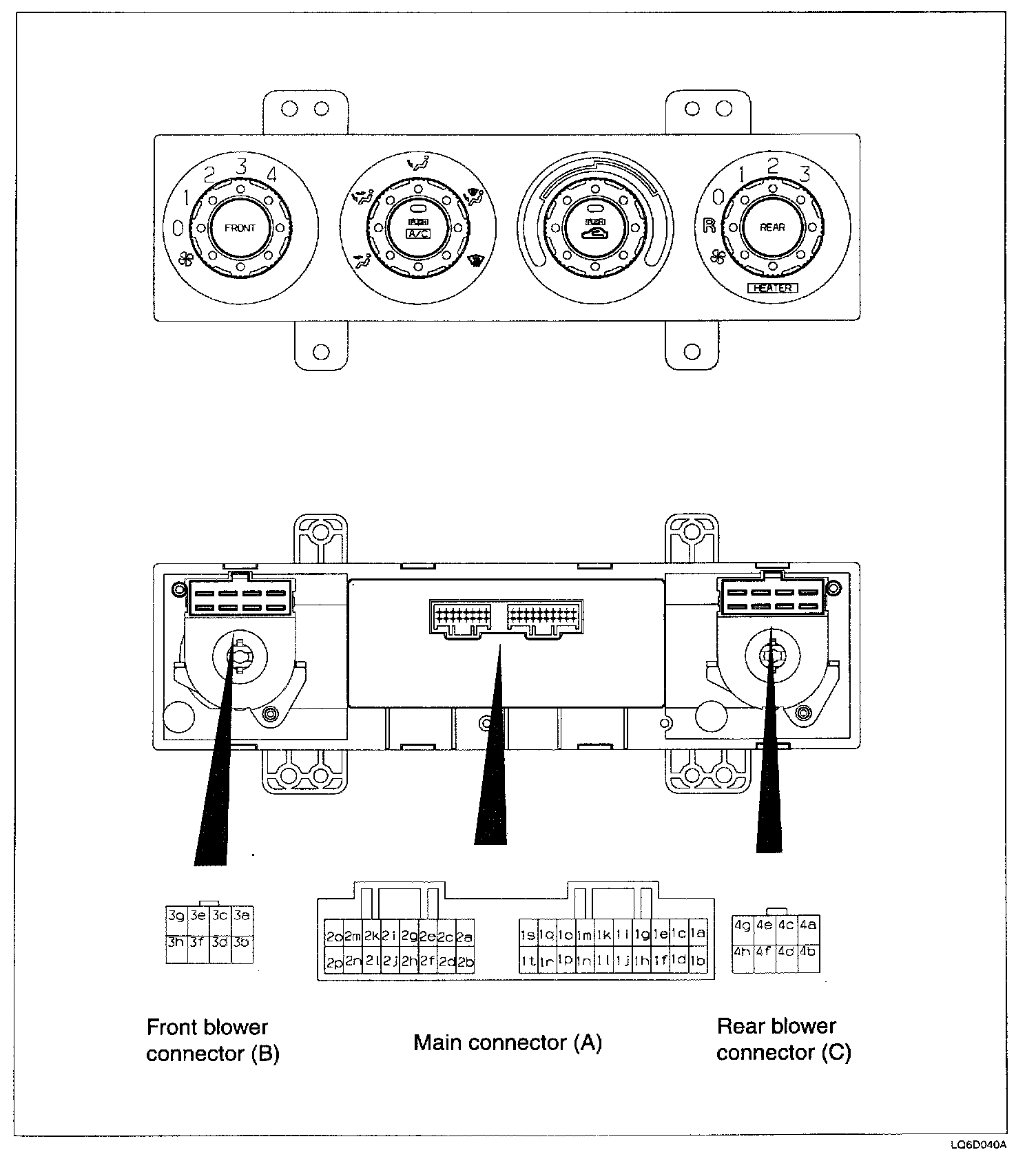

Blower And A/C Controls (Manual) Control Panel - Part 1:



Part 2:
