Cruise Control Module: Inspection

  1. Connect a voltmeter between cruise control unit terminals and ground.
  2. Turn ignition switch "ON" and check that terminal voltages are as described.
    Fig 1: Identifying Cruise Control Unit Terminals
    G01093044Courtesy of KIA MOTORS AMERICA, INC.

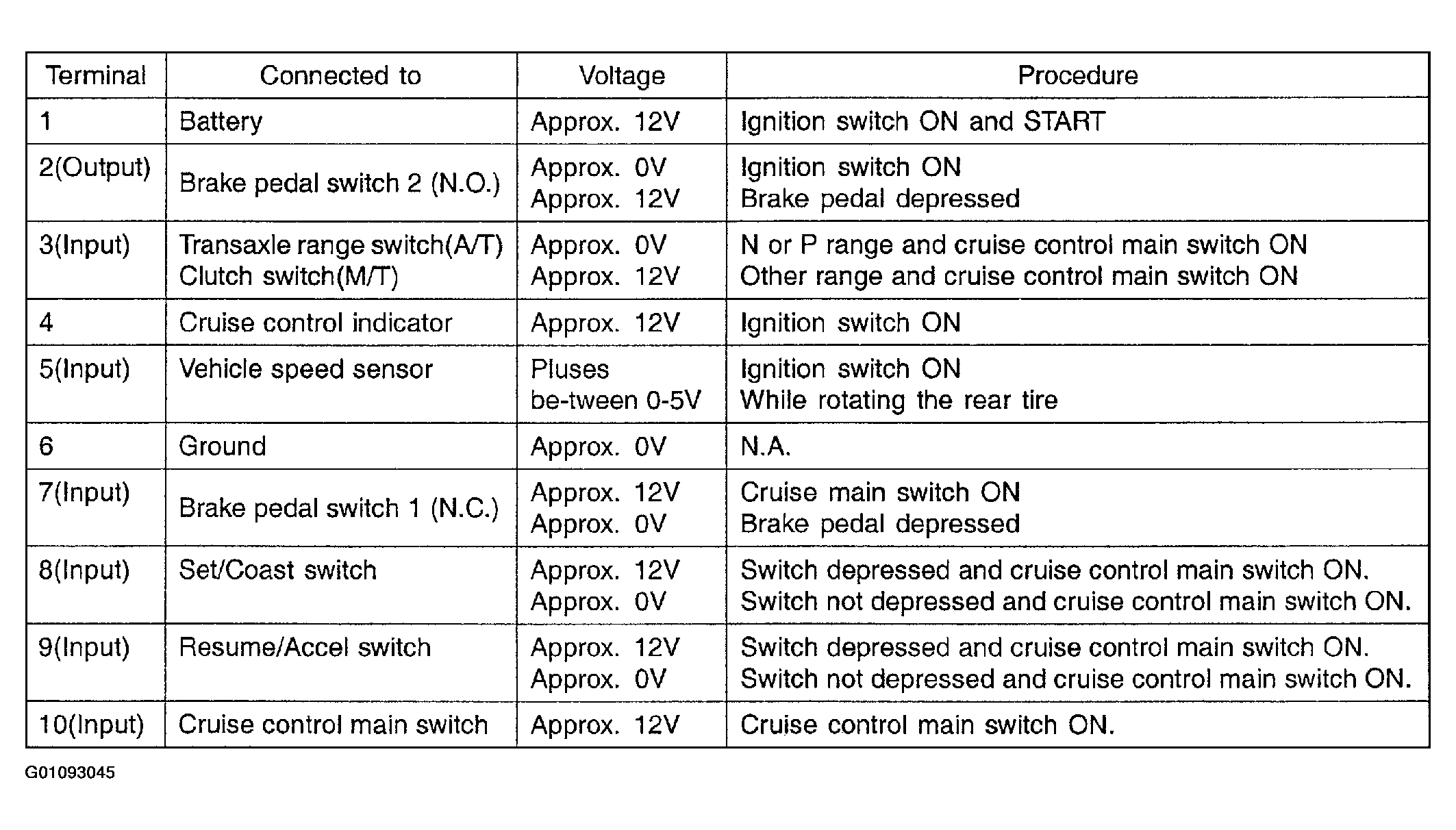

    Fig 2: Identifying Specified Terminals Voltage
    G01093045Courtesy of KIA MOTORS AMERICA, INC.
