Control Unit Outside Circuit Diagram

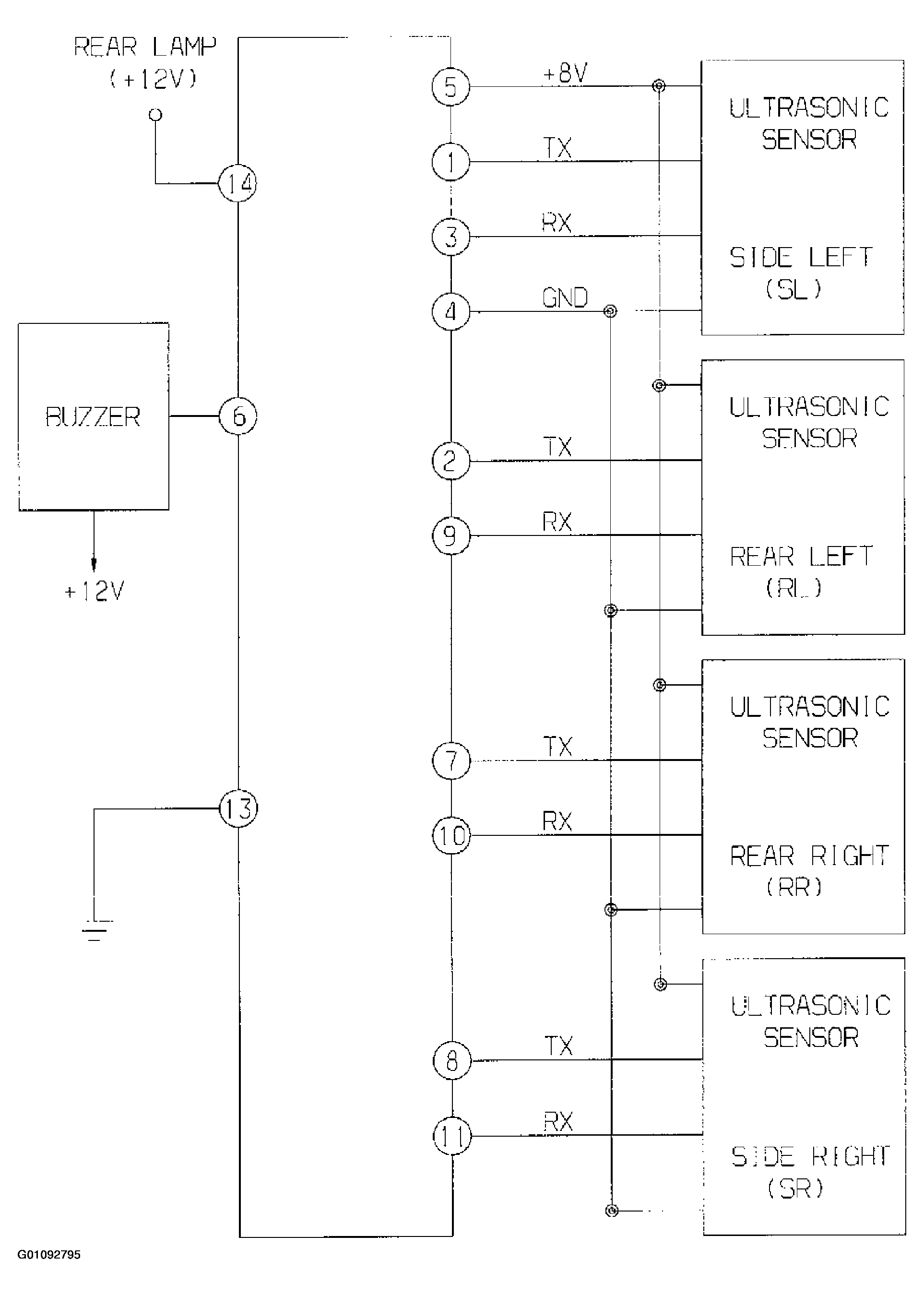

Fig 1: Control Unit Outside Circuit Diagram

G01092795

Courtesy of KIA MOTORS AMERICA, INC.
