Control Unit & Sensor Terminal Alignment

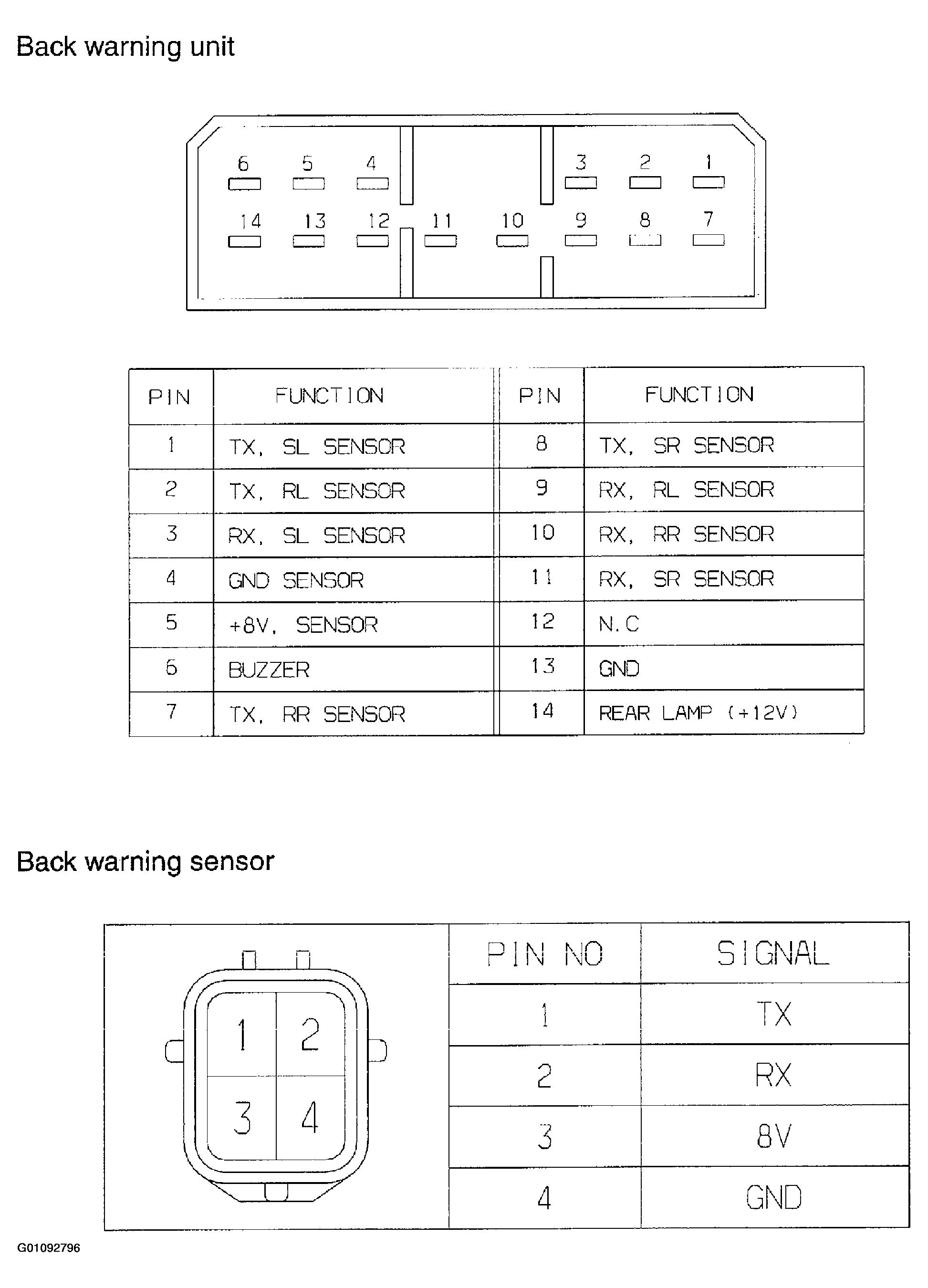

Fig 1: Control Unit & Sensor Terminal Alignment

G01092796

Courtesy of KIA MOTORS AMERICA, INC.
