Power Window Main Switch Connector End View

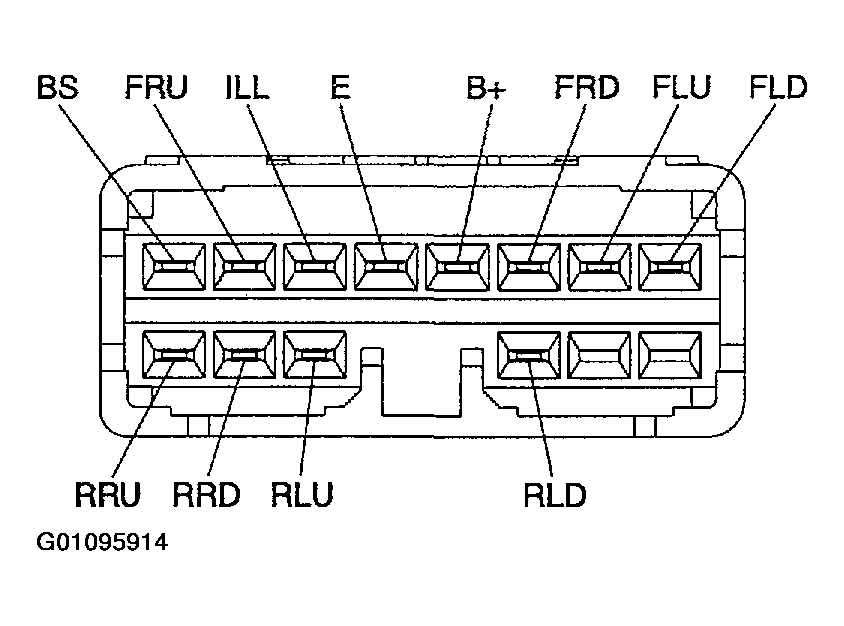

Fig 1: Power Window Main Switch Connector End View

G01095914

Courtesy of KIA MOTORS AMERICA, INC.
