Mechanical Specifications

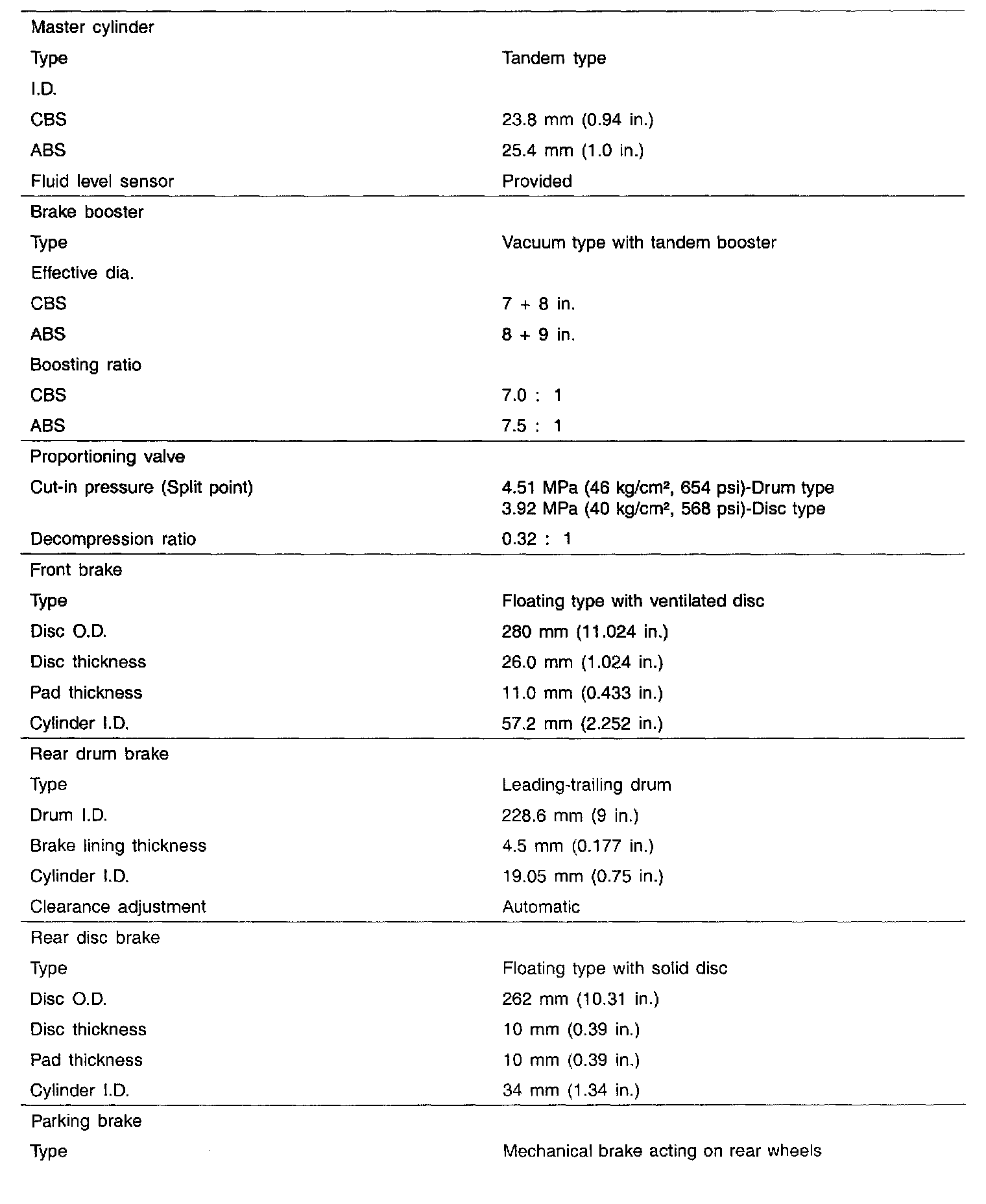

General Specifications (1 Of 2):




General Specifications (2 Of 2):

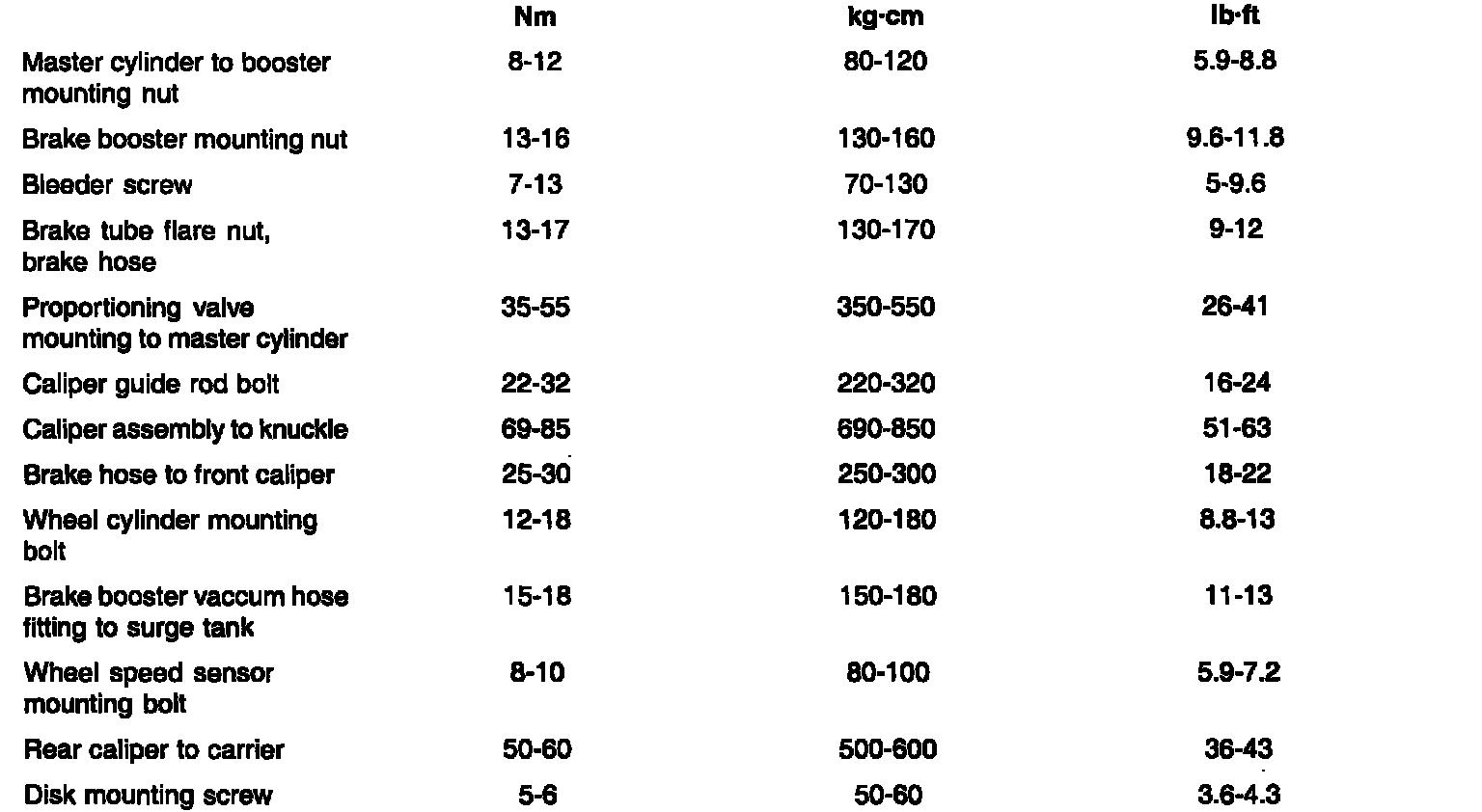

Tightening Torque:





WARNING: Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to the vehicle occupants.
