Locations
>>
Connector Locations
>>
H-1B - Automatic Transaxle Control System
H-1B - Automatic Transaxle Control System

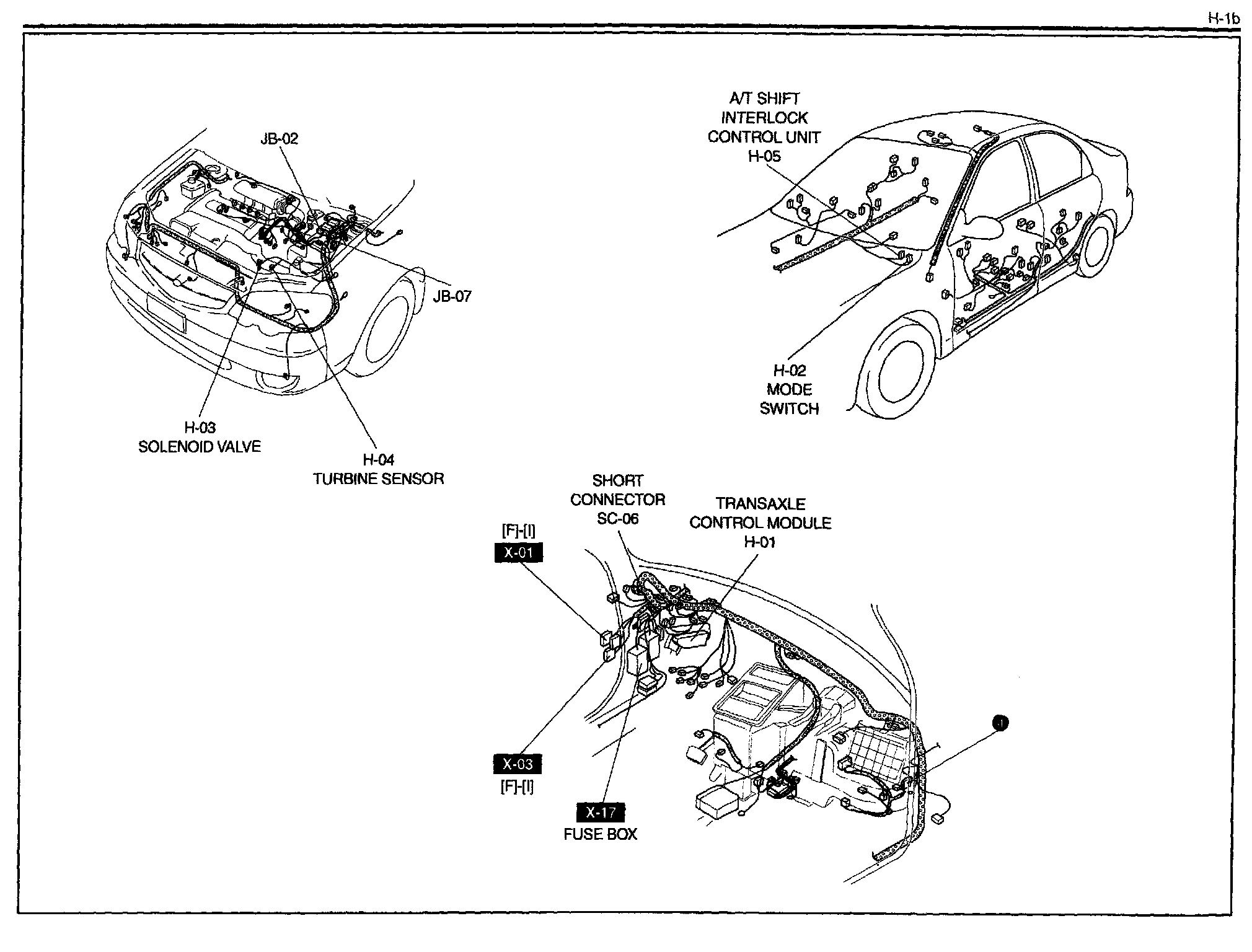

H-1b - Automatic Transaxle Control System, A/C Shift Interlock Control System Harness / Connectors Symbols:
