Home >> Kia >> 2002 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Locations >> Connector Locations >> H-1A - Automatic Transaxle Control System

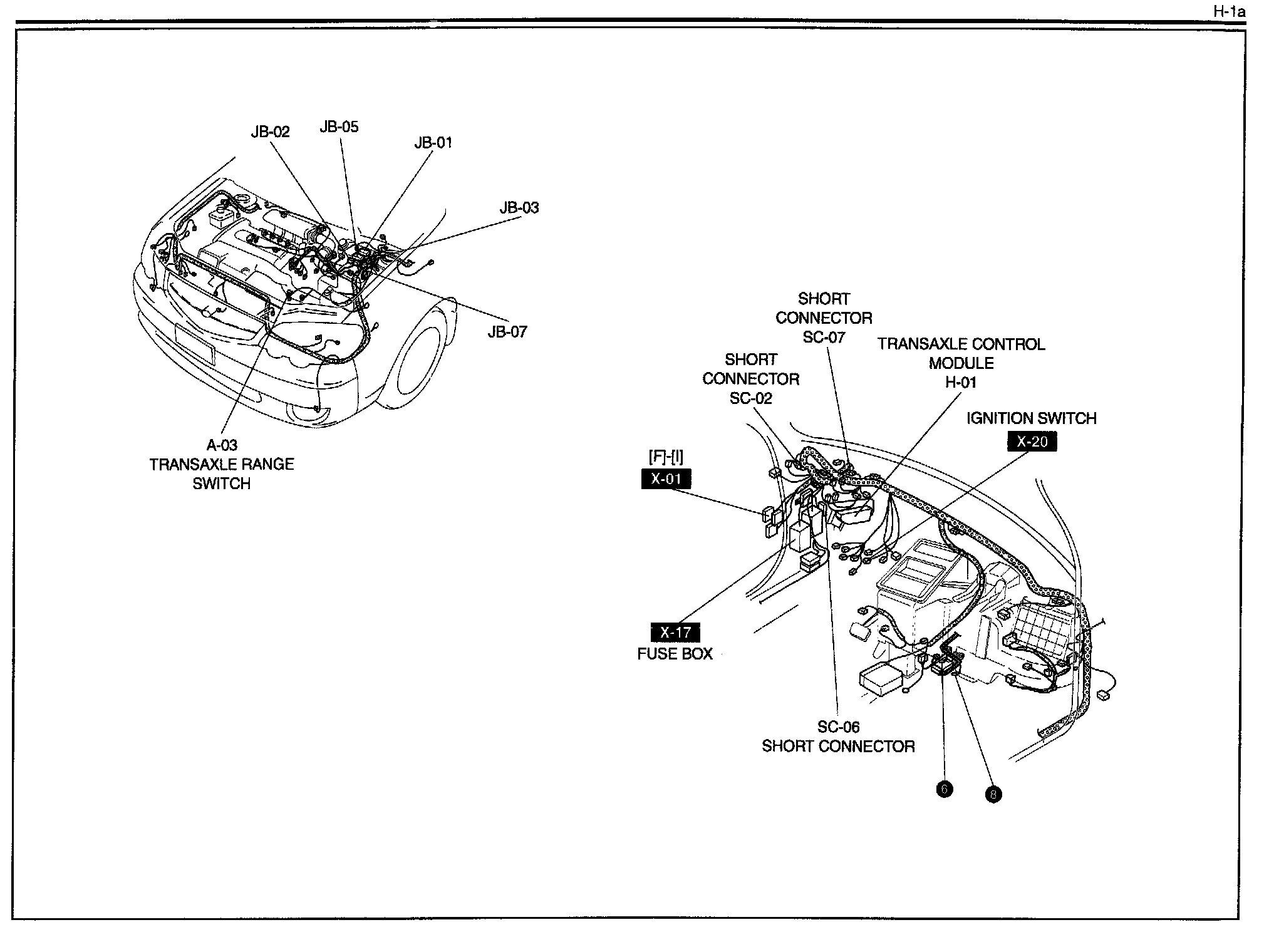

H-1A - Automatic Transaxle Control System

H-1a - Automatic Transaxle Control System Harness / Connectors Symbols:
