Diode Trio: Testing and Inspection

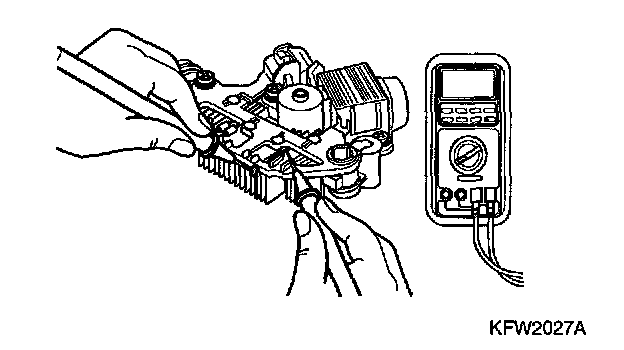

Diode trio test
Check the three diodes for continuity by connecting an ohmmeter to both ends of each diode. Each diode should have continuity in only one direction.

If continuity is present in both directions, a diode is defective and the heatsink assembly must be replaced.
