Engine Control System Circuit

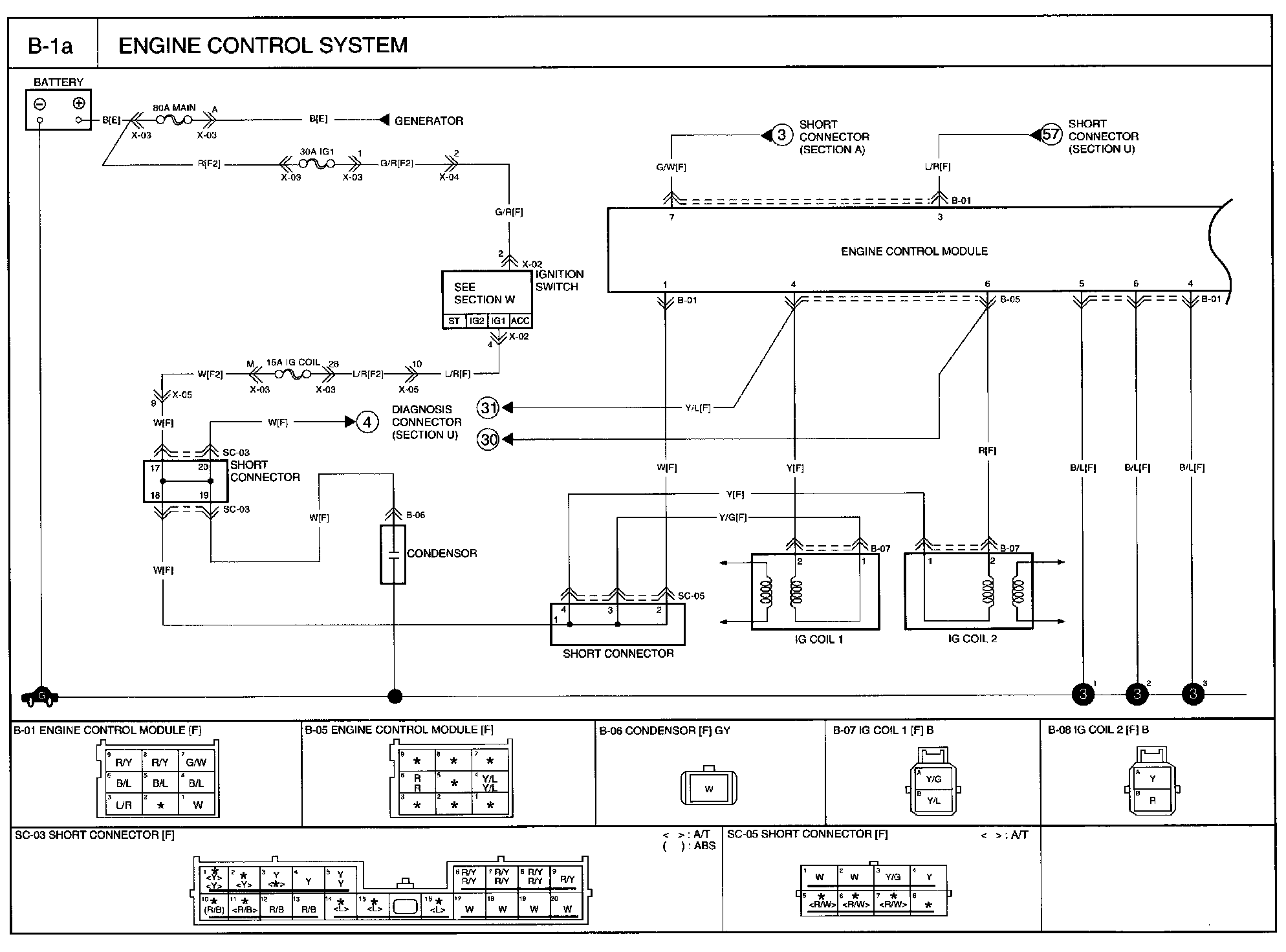

B-1a - Engine Control System Circuit:

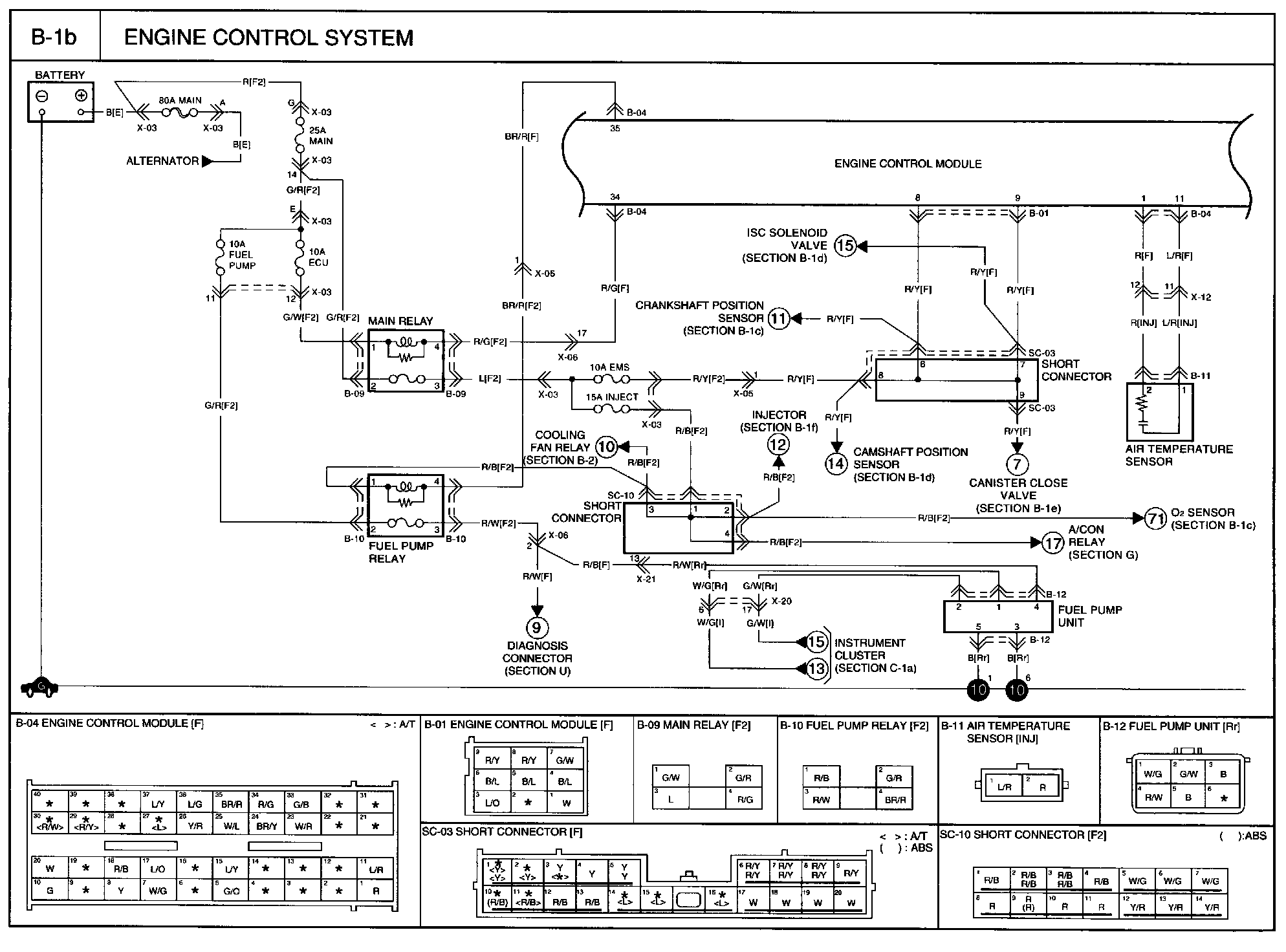

B-1b - Engine Control System Circuit:

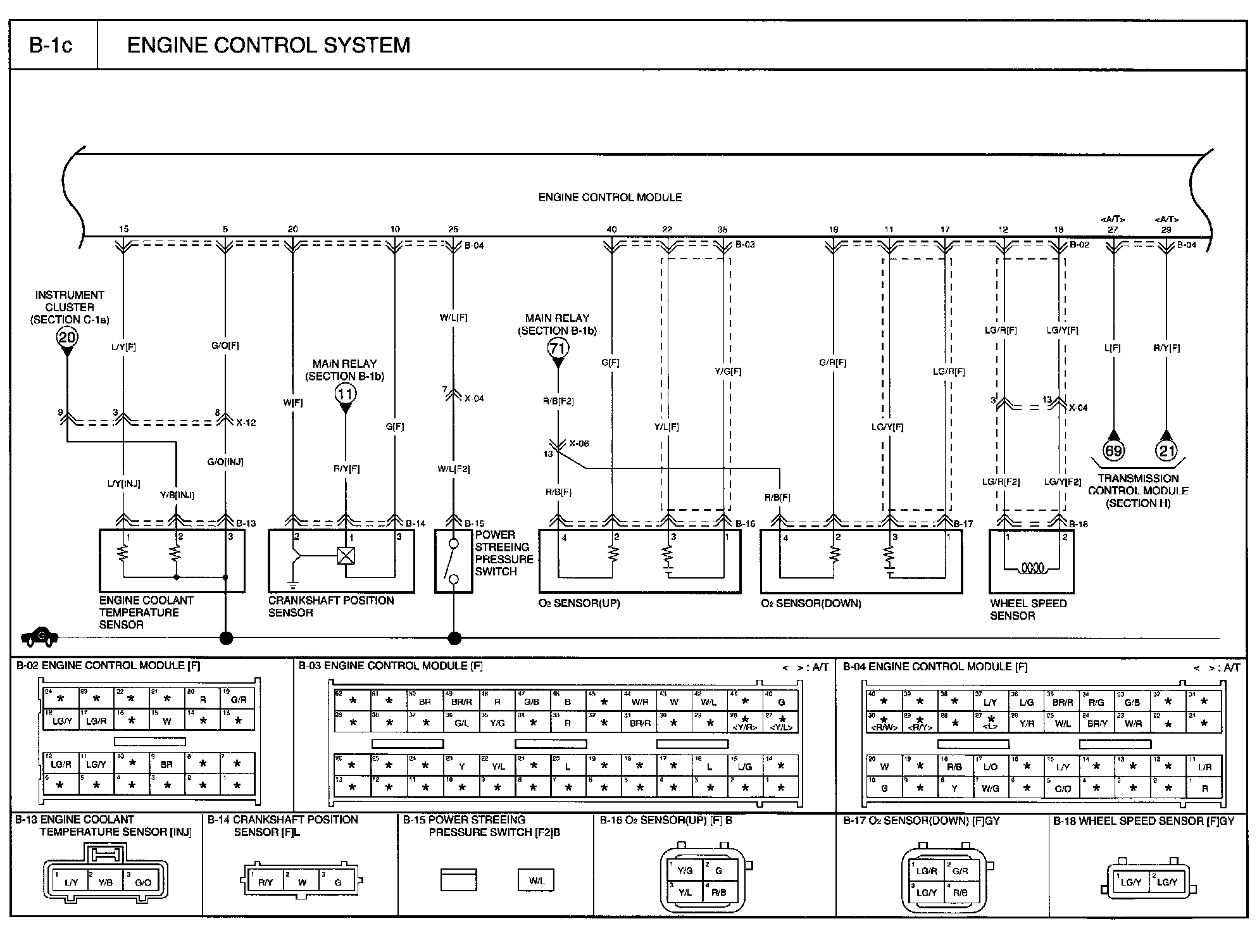

B-1c - Engine Control System Circuit:

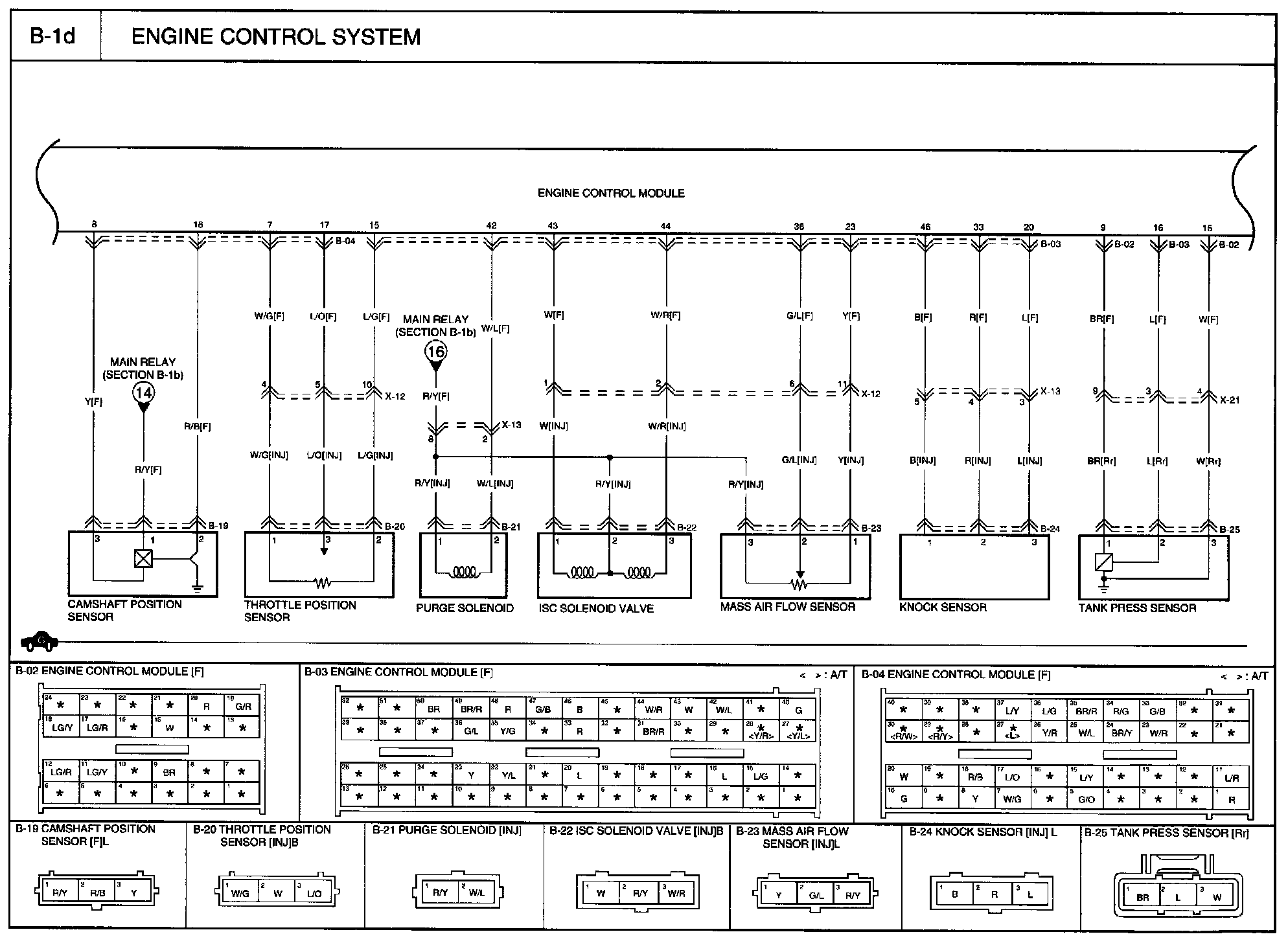

B-1d - Engine Control System Circuit:

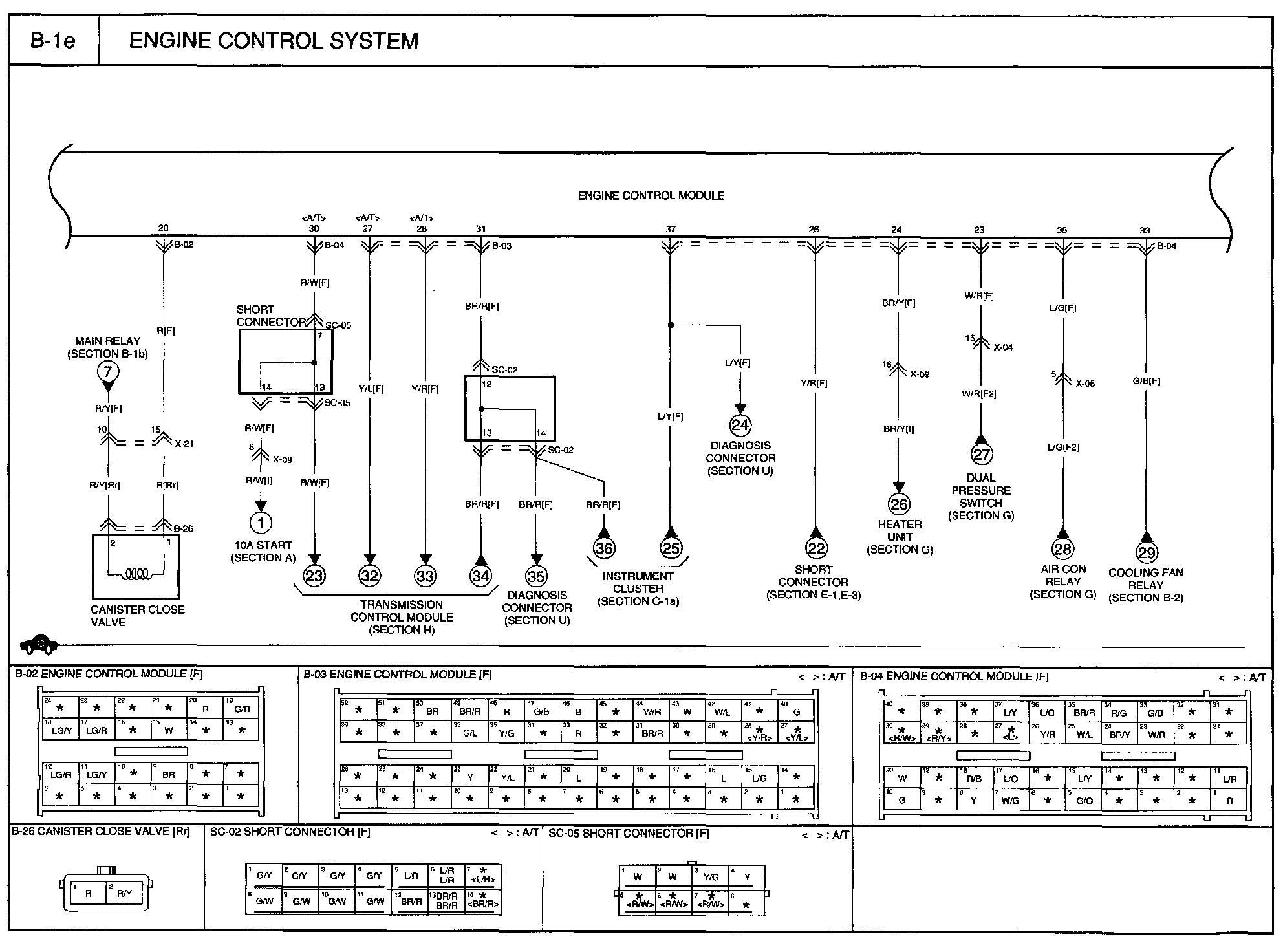

B-1e - Engine Control System Circuit:

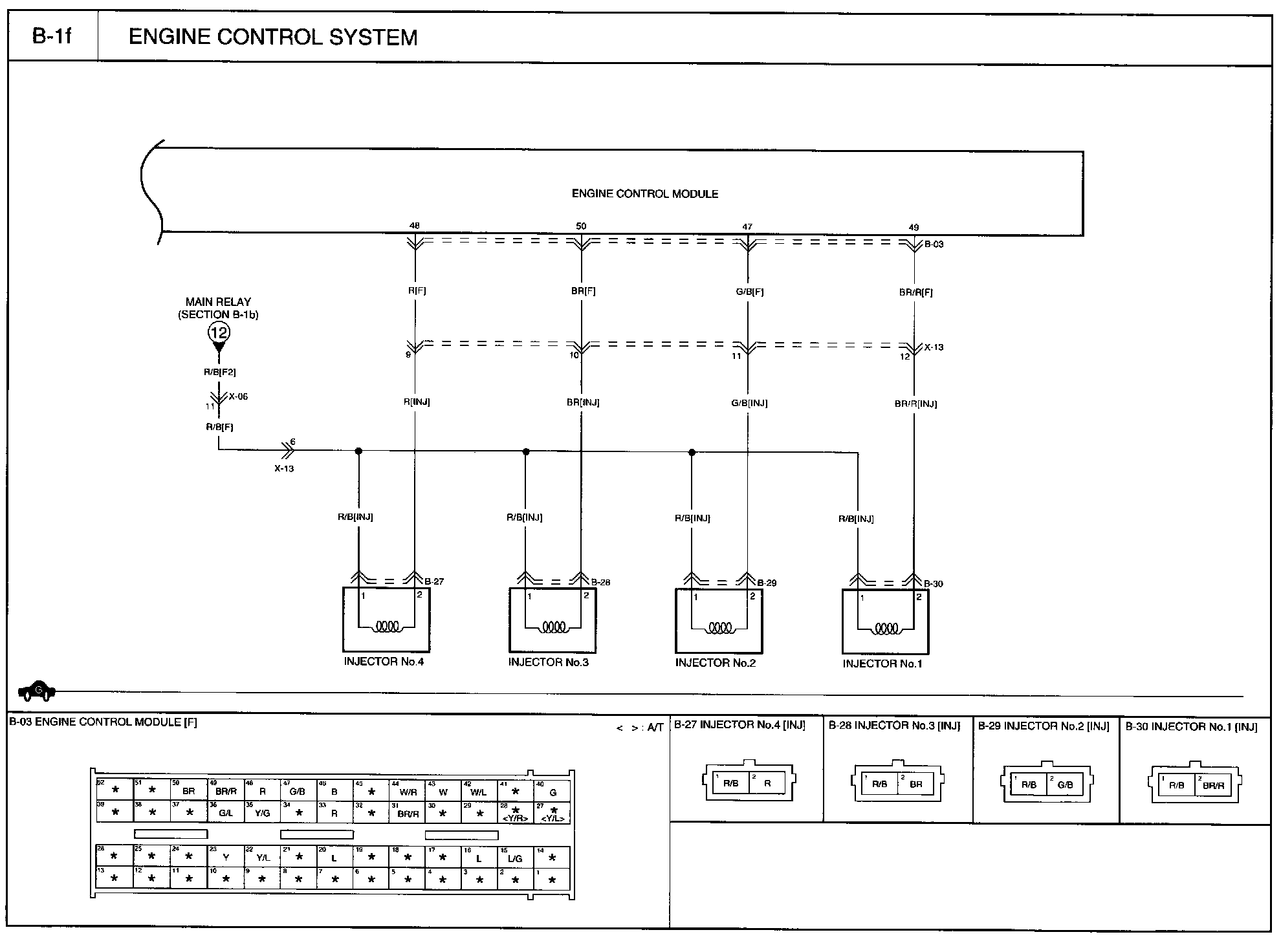

B-1f - Engine Control System Circuit:
