Home >> Kia >> 2002 >> Optima SE V6-2.7L >> Repair and Diagnosis >> Locations >> Connector Locations >> H-1B - Automatic Transaxle Control System

H-1B - Automatic Transaxle Control System

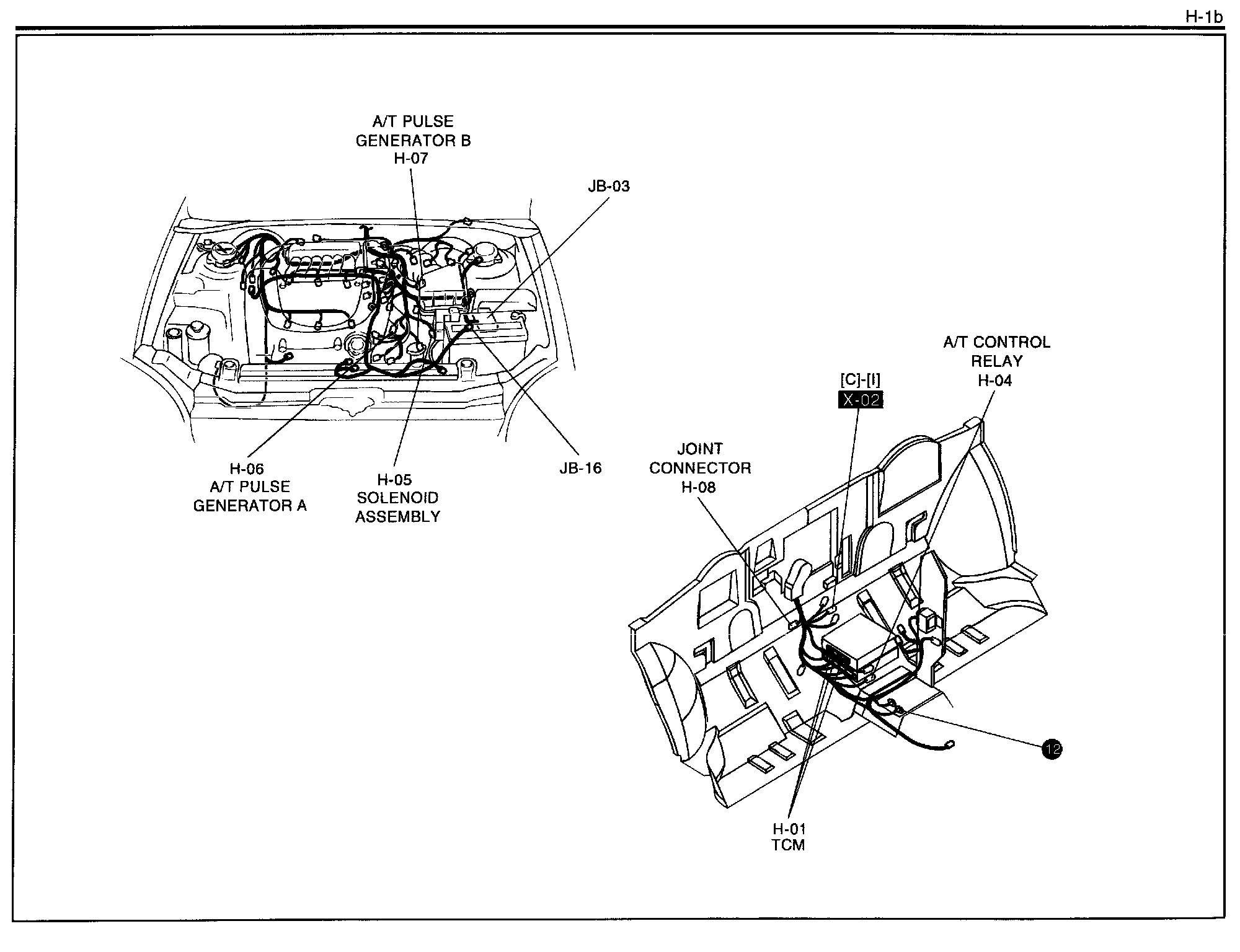

H-1b - Automatic Transaxle Control System Harness/Connector Symbols:
