Wheel Speed Sensor: Service and Repair

FRONT WHEEL SPEED SENSOR

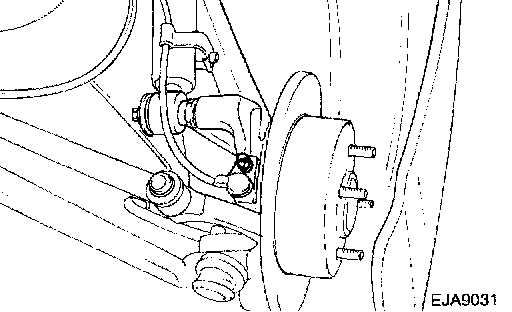

1. Remove the front wheel speed sensor mounting bolt.





2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

REAR WHEEL SPEED SENSOR





1. Remove the rear seat cushion.

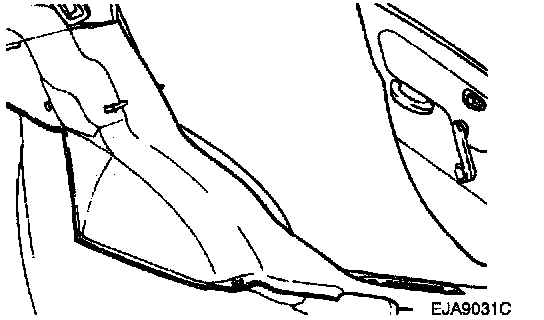

2. Remove the rear pillar trim assembly.
3. Remove the tire assembly.





4. Remove the rear wheel speed sensor after disconnection the wheel speed sensor connector.
