Powertrain Management: Description and Operation

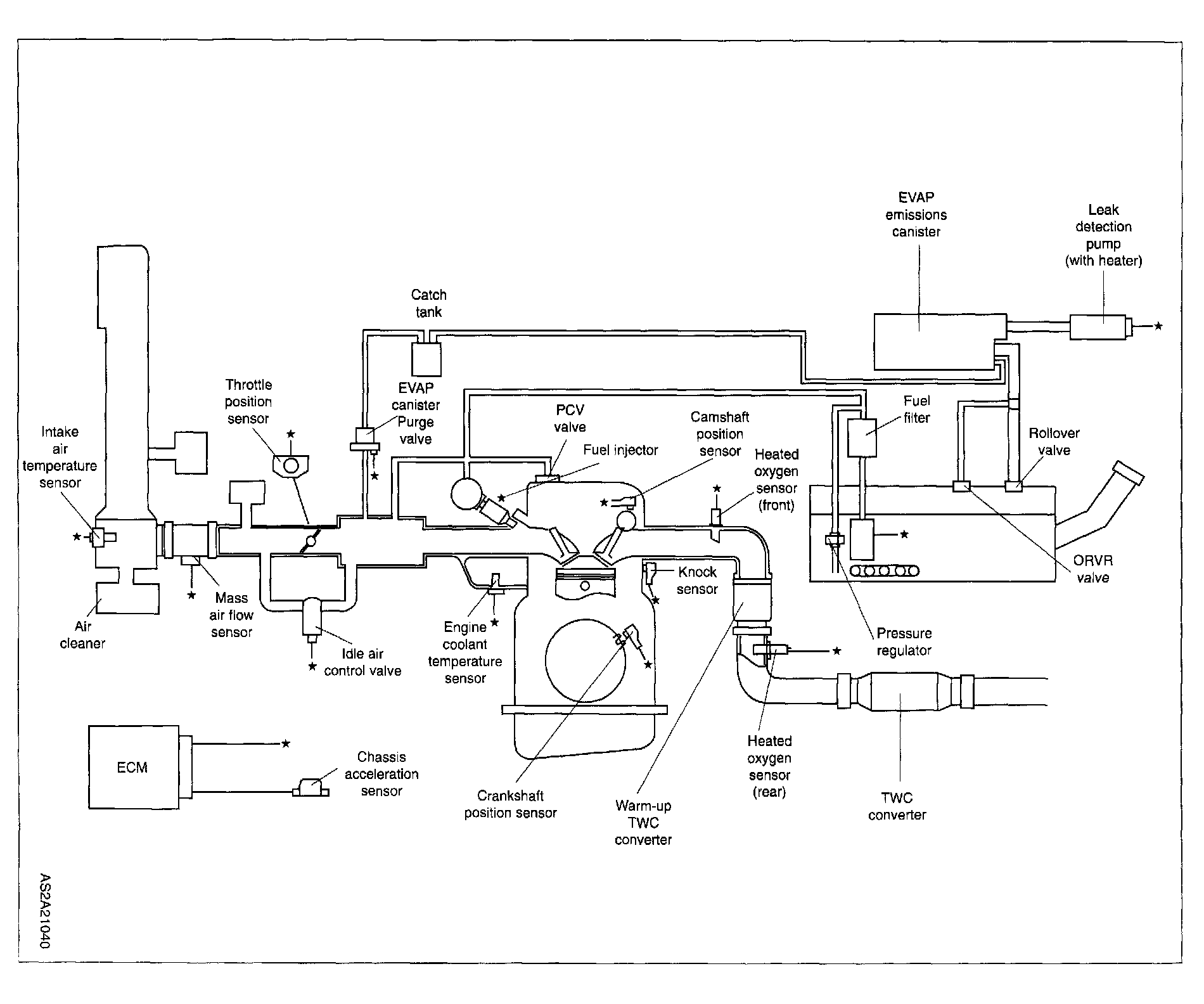

Functional Diagram:

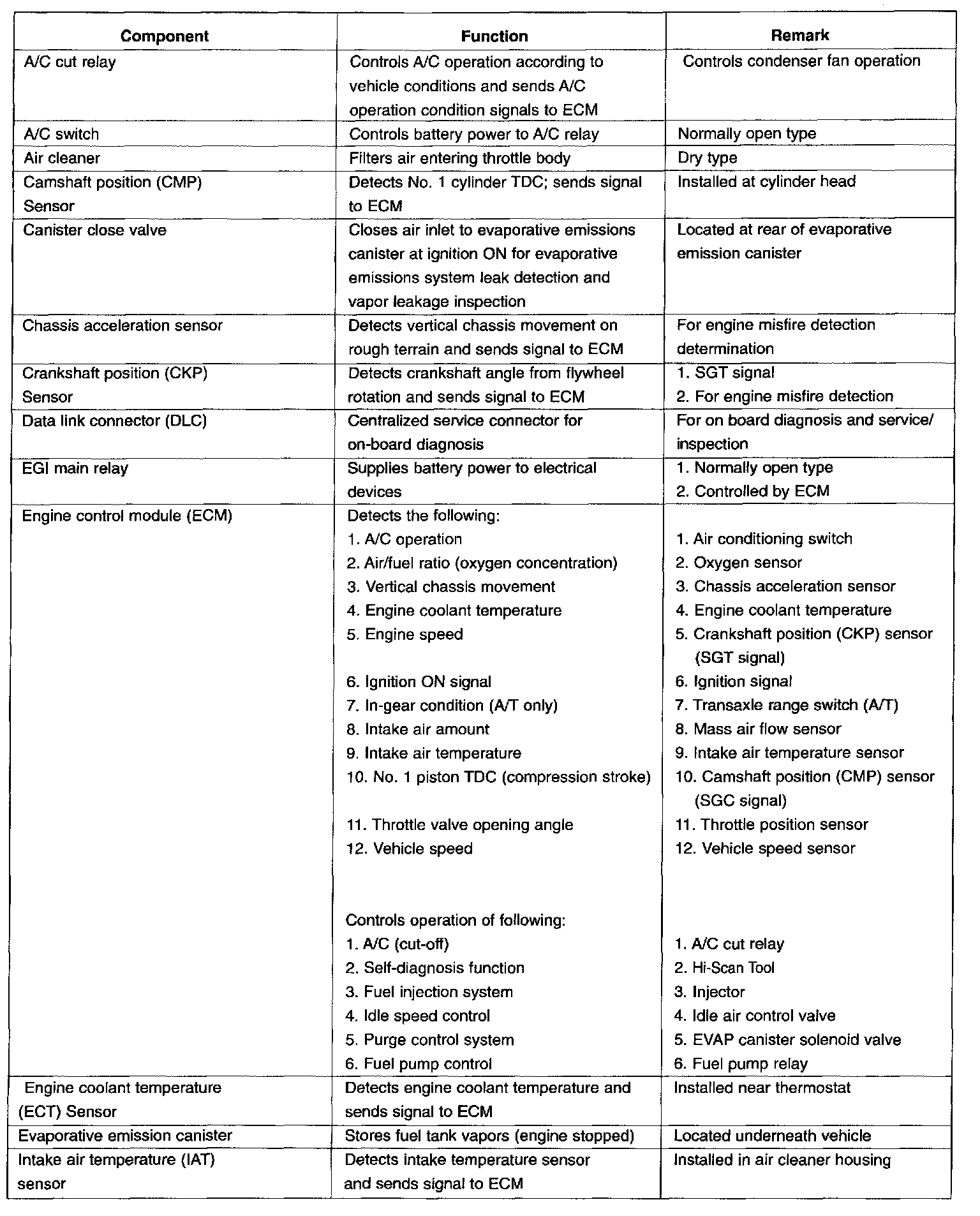

Component Description Table, Part 1:

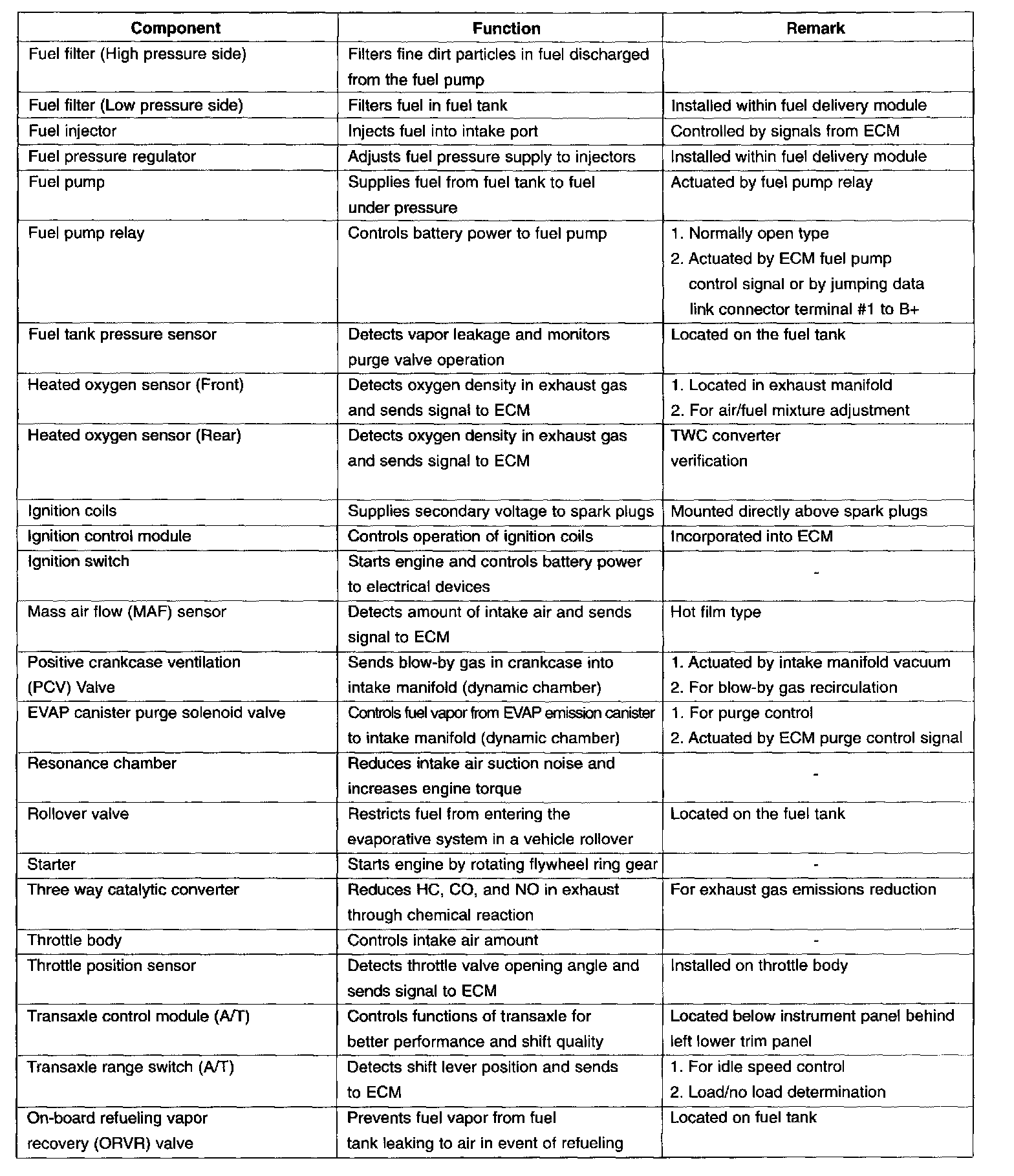

Component Description Table, Part 2:
