Connector Locations
>>
H-1B - Automatic Transaxle Control System
H-1B - Automatic Transaxle Control System

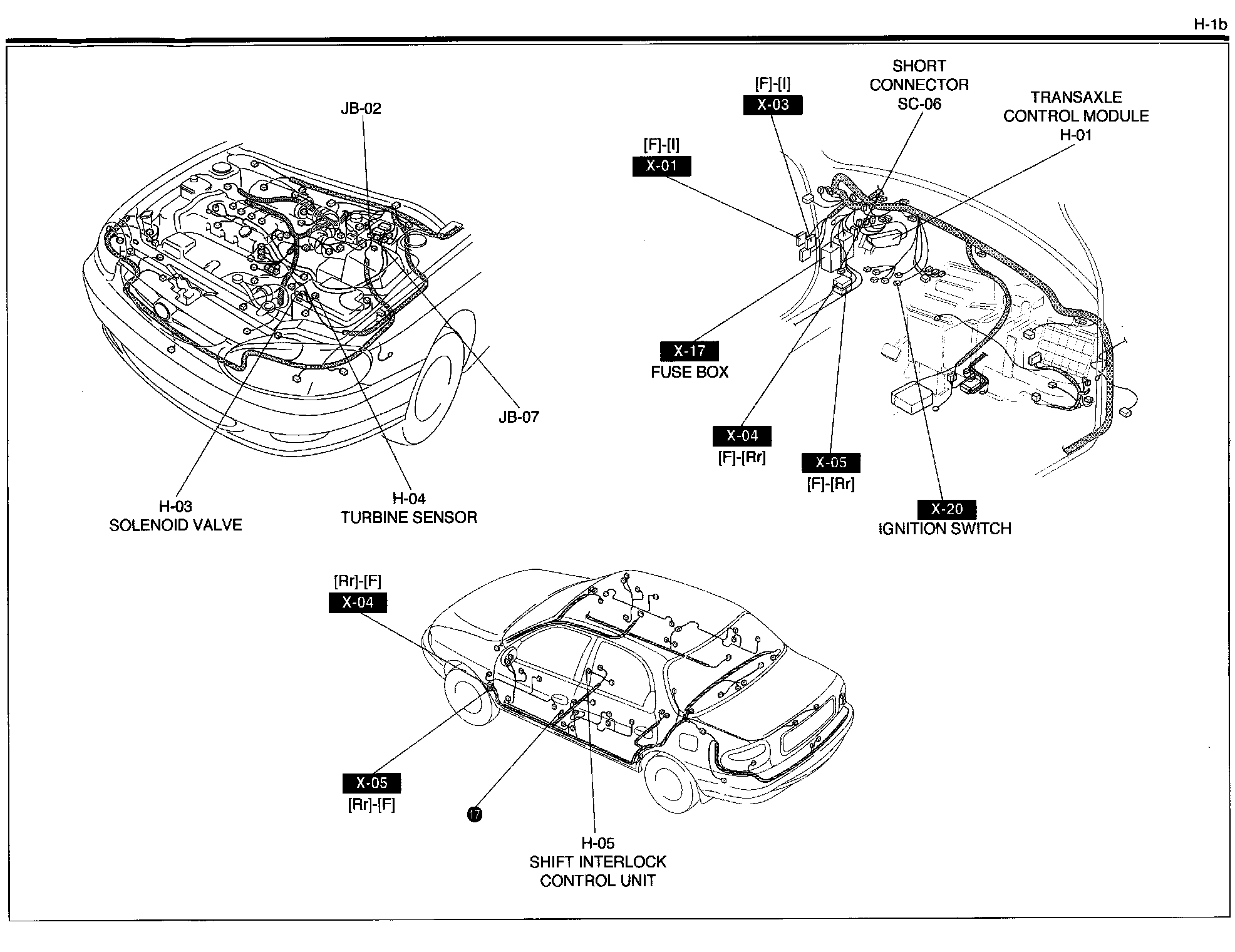

H-1b - Automatic Transaxle Control System, A/T Shift Interlock Control System Harness/Connector Symbols:
