Wiper Switch: Testing and Inspection

Circuit Testing




Wiper & washer switch
1. Disconnect the front wiper & washer switch

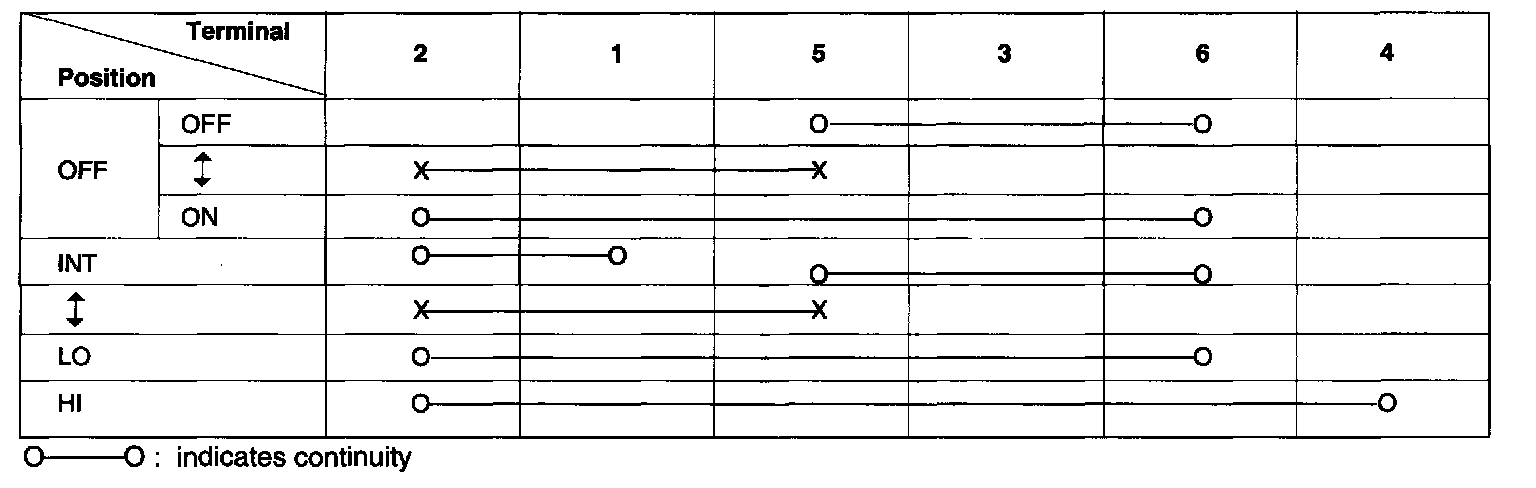

2. Check for continuity between terminal as indicated
3. If not as specified, replace the wiper/washer switch assembly.
