Blower Motor Switch: Testing and Inspection
Blower switch1. Disconnect blower switch.

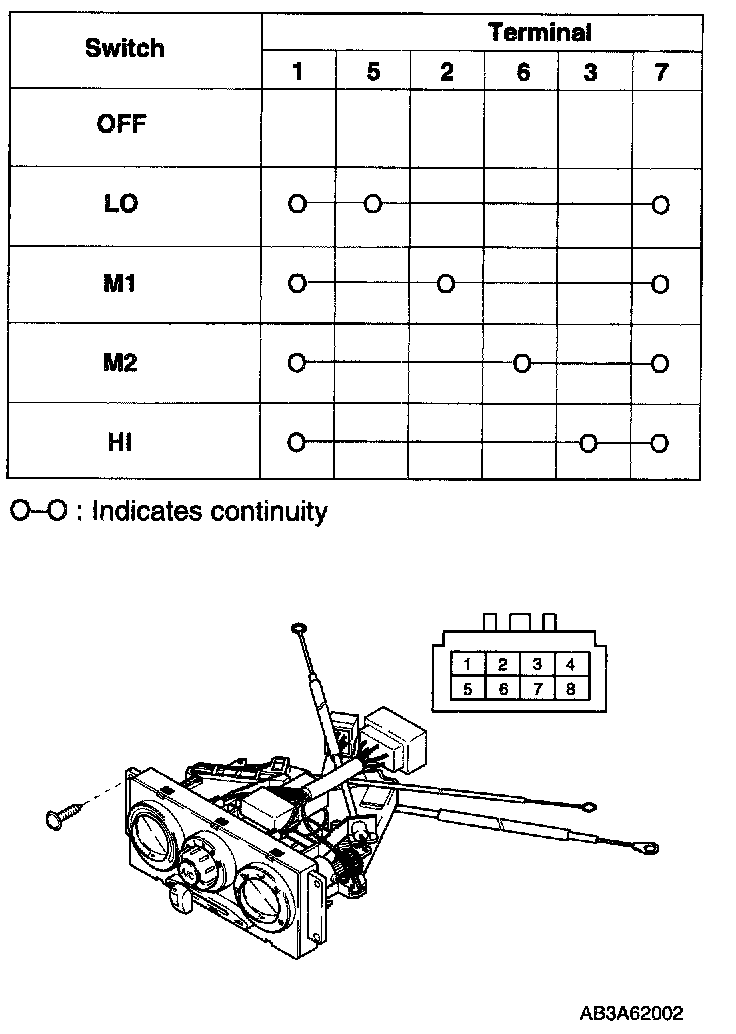

2. Check for continuity between following terminals of the blower switch.
3. If not as specified, replace the blower switch.
1. Check continuity between terminals of blower switch connector G-04
2. If not as specified, replace blower switch.
