Power Mirror Switch: Testing and Inspection
Circuit TestingPower Mirror Switch
1. Disconnect the power mirror switch.

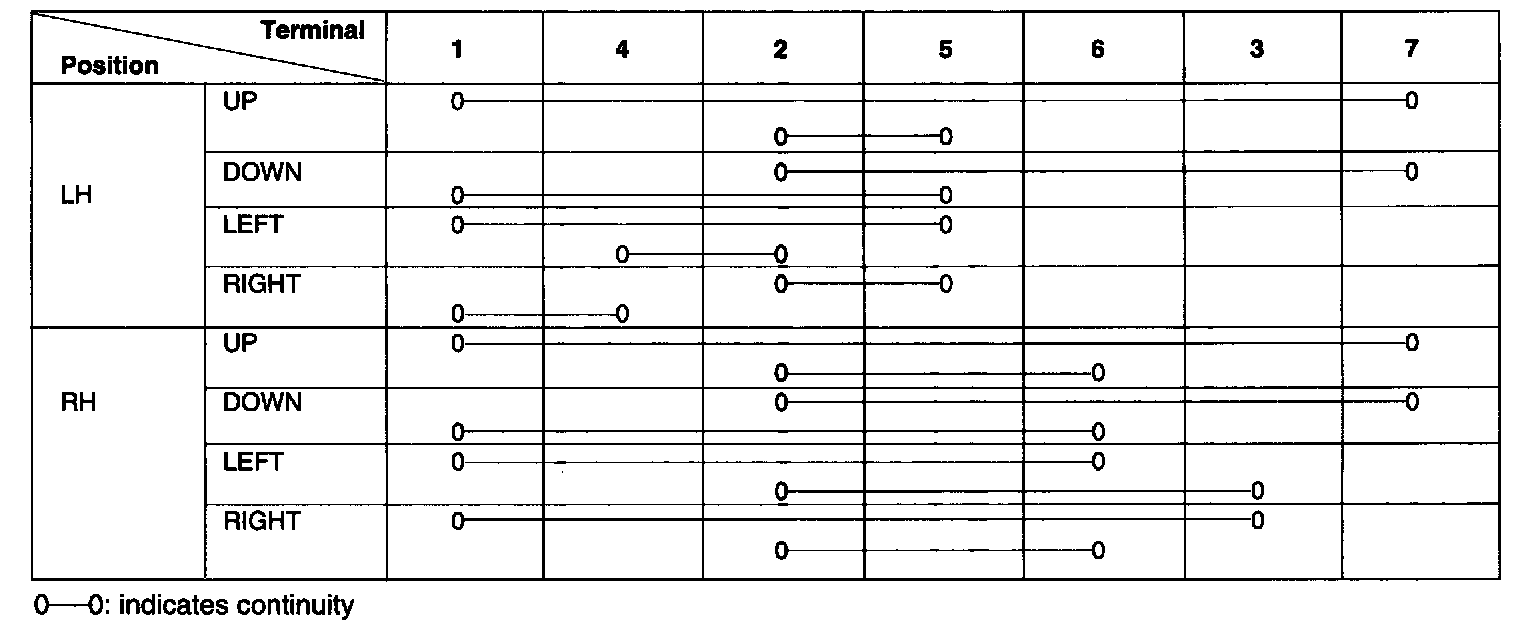

2. Check for continuity between terminal as indicated
3. If not as specified, replace the power window main switch assembly.
Power Mirror Switch
1. Disconnect the power mirror switch.
2. Check for continuity between terminal as indicated
3. If not as specified, replace the power window main switch assembly.
