Battery Cover Installation Procedure

* NOTICE
Battery cover will only fit OEM battery.





1. Remove both battery cables.

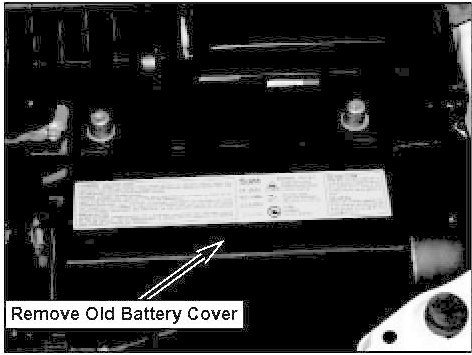

2. Loosen battery hold-down bolt if necessary, and remove old battery cover.

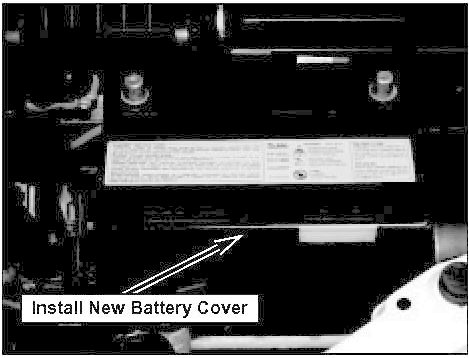

3. Install new battery cover over battery. Reconnect battery cables, positive cable first.
