Pinout Values and Diagnostic Parameters
ECM Terminal Pinouts:
Connector B-01 (V1 - V9):

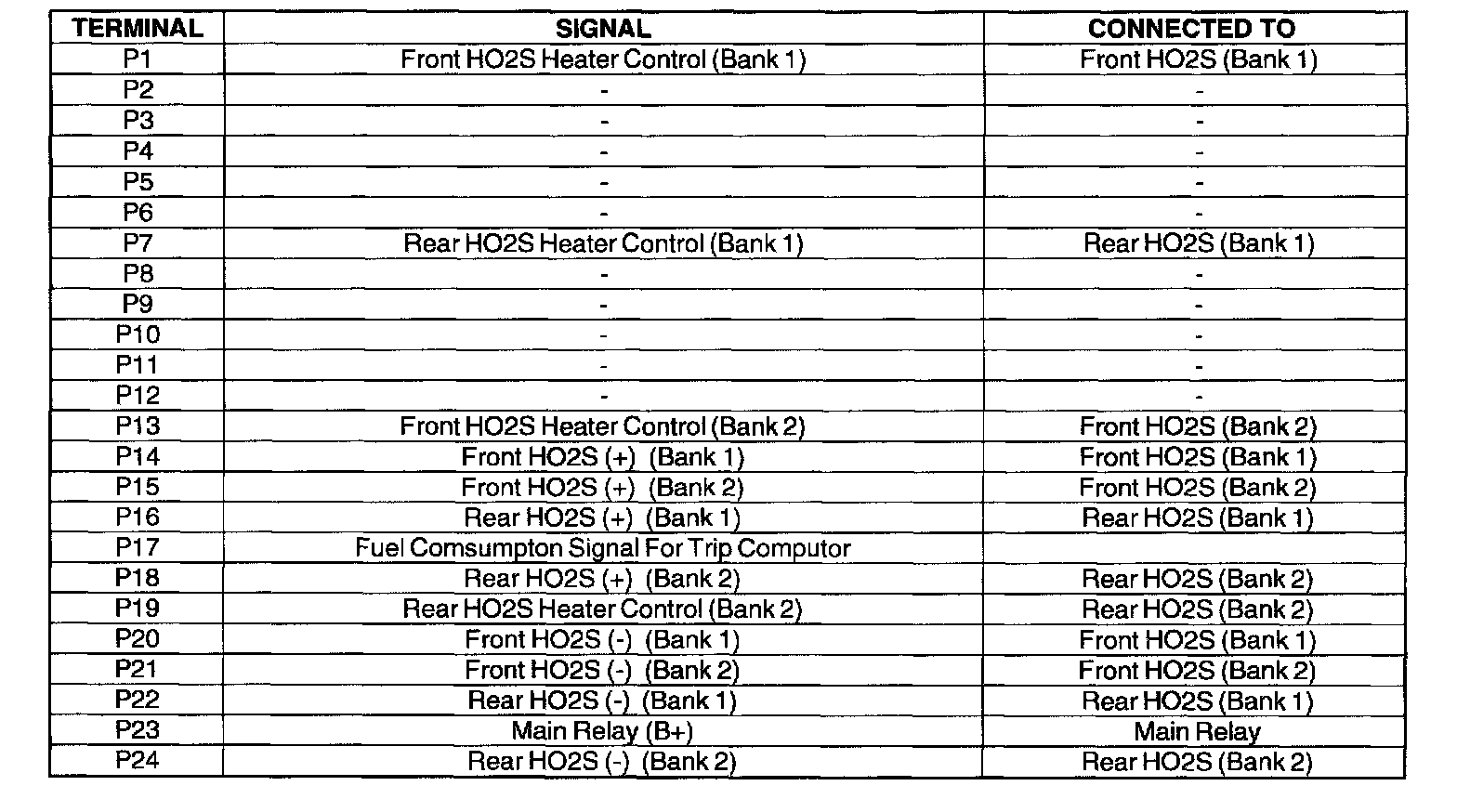

Connector B-01 P1 - P24:

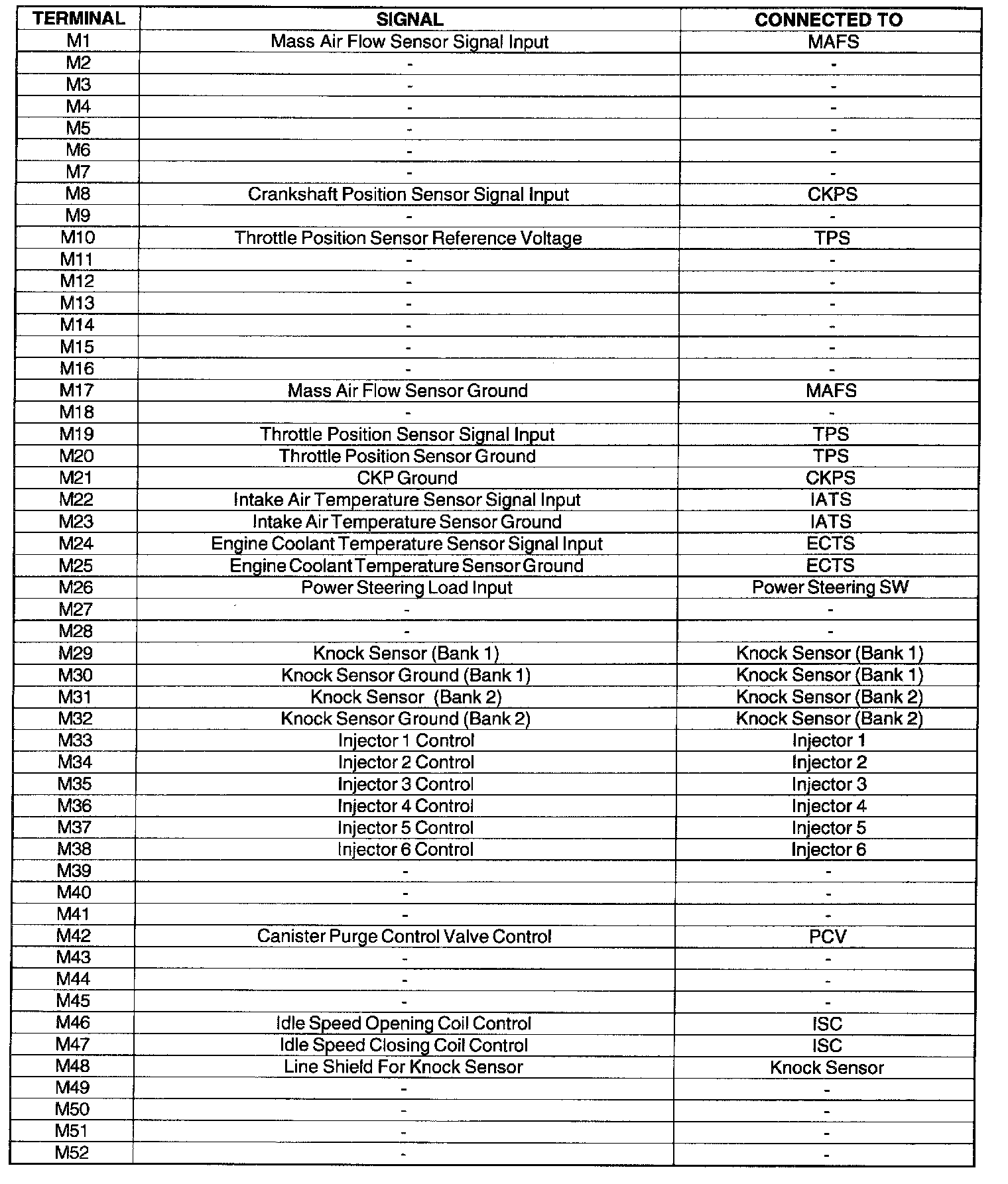

Connector B-01 M1 - M52:

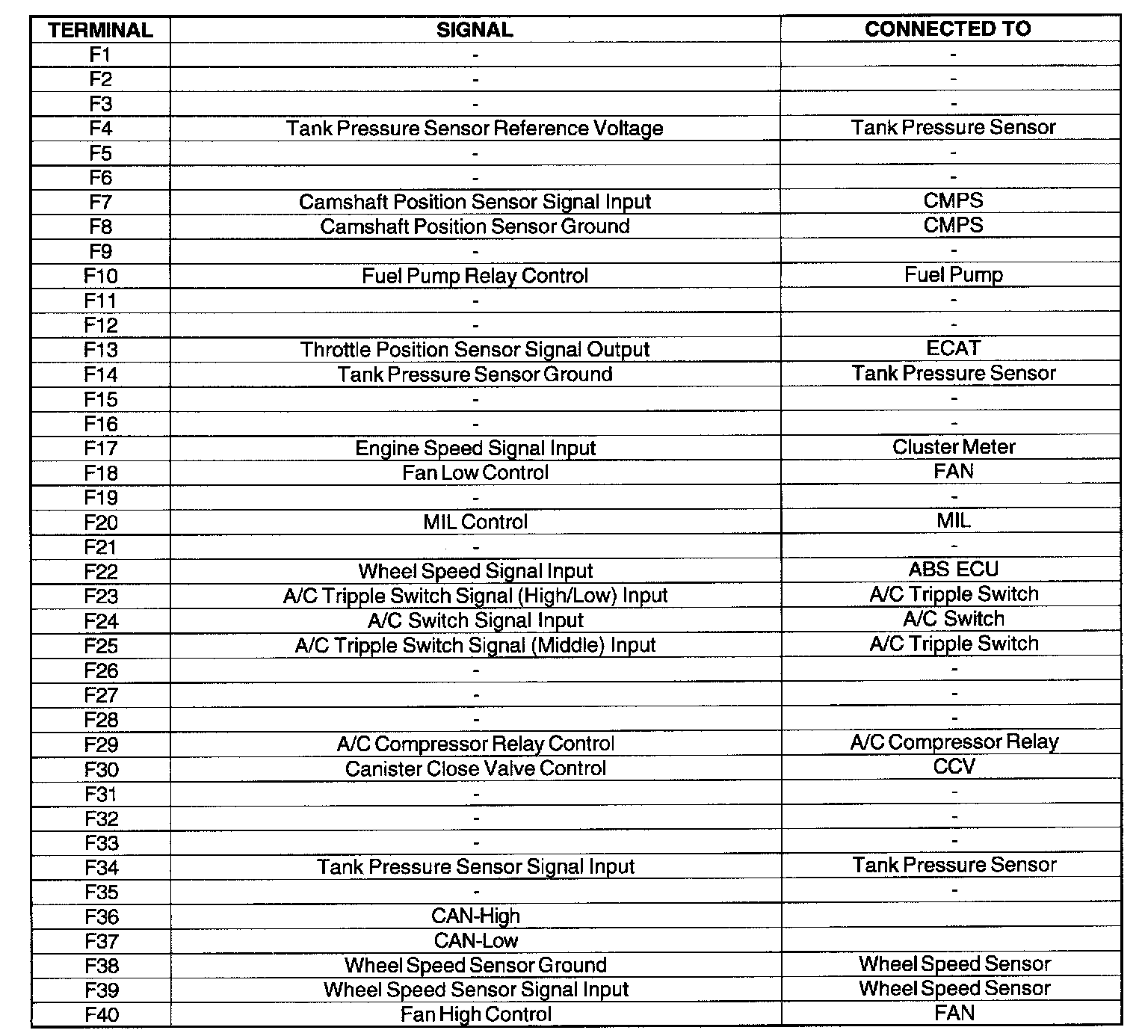

Connector B-01 F1 - F40:
Connector B-01 Z1 - Z9:
