Home >> Kia >> 1996 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> System Inspection

System Inspection

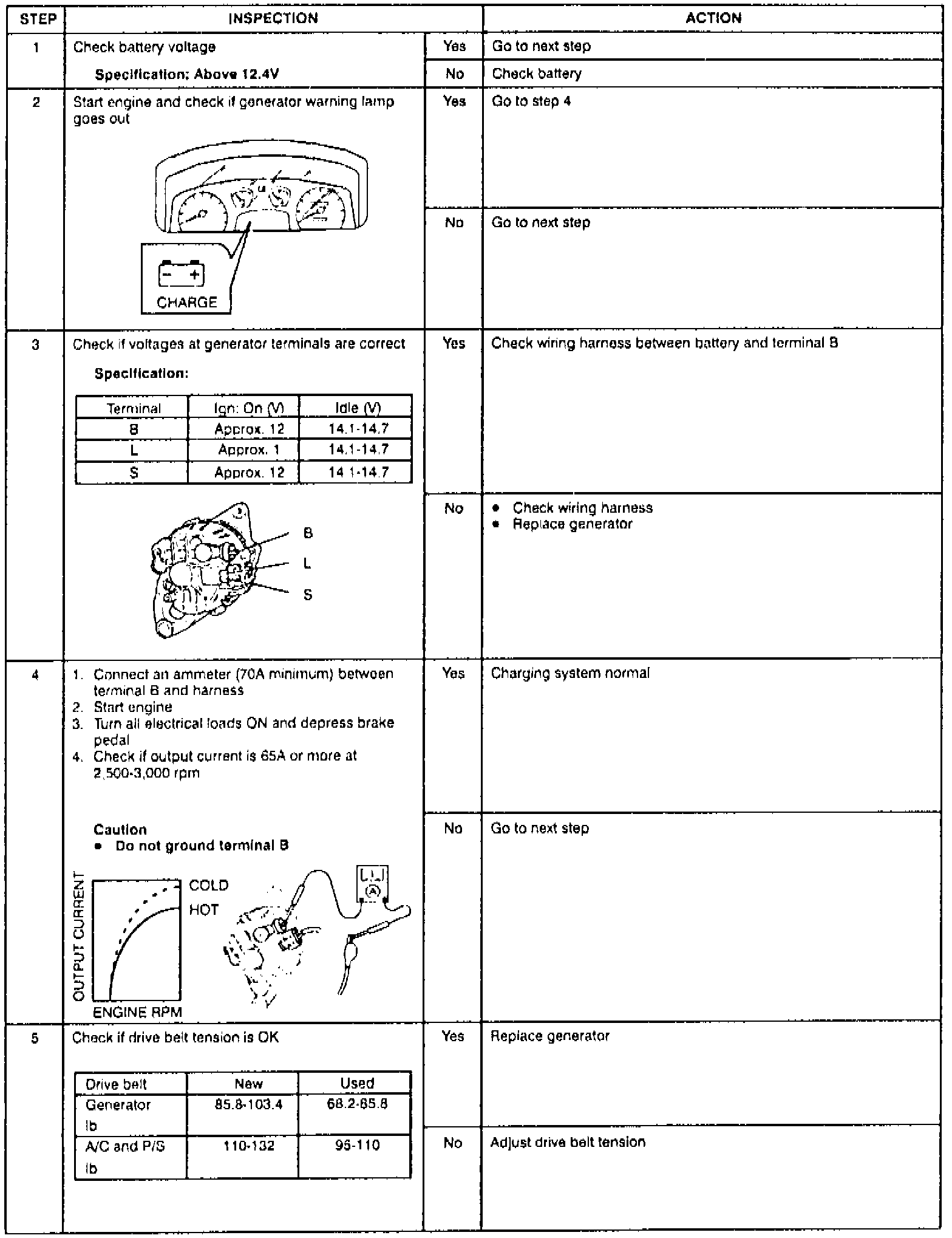

Fig. 1 Alternator Diagnosis:





Refer to Fig. 1 for alternator system diagnosis and testing.
