Heater, Engine Block: Installation: 3.2L

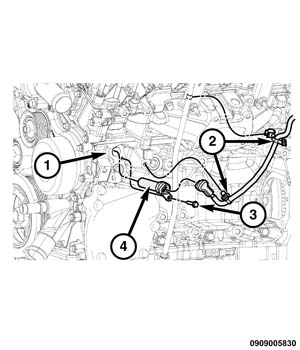

GC0159337Courtesy of CHRYSLER GROUP, LLC
  1. Clean the engine block core hole (1).
  2. Insert the engine block heater (4) and tighten the bolt (3) to the proper torque specification. Refer to (TECHNICAL SPECIFICATIONS  ).
  3. Install the power cord plug to block heater (2).
  4. Install the generator. Refer to 3.2L .
