3.7L Engine
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

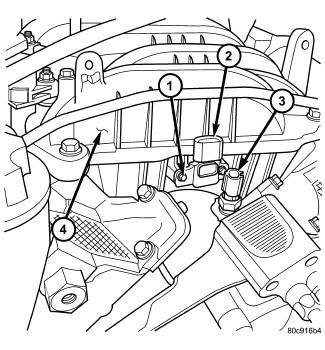

| 1 - MOUNTING SCREWS |
| 2 - MAP SENSOR |
| 3 - ECT SENSOR |
| 4 - FRONT OF INTAKE MANIFOLD |
- Apply thread sealant to sensor threads.
- Install sensor to engine.
- Tighten coolant temperature sensor to 11 N.m (8 ft. lbs.) torque.
- Replace any lost engine coolant.
