Home >> Jeep >> 2012 >> Grand Cherokee 2WD V8-5.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

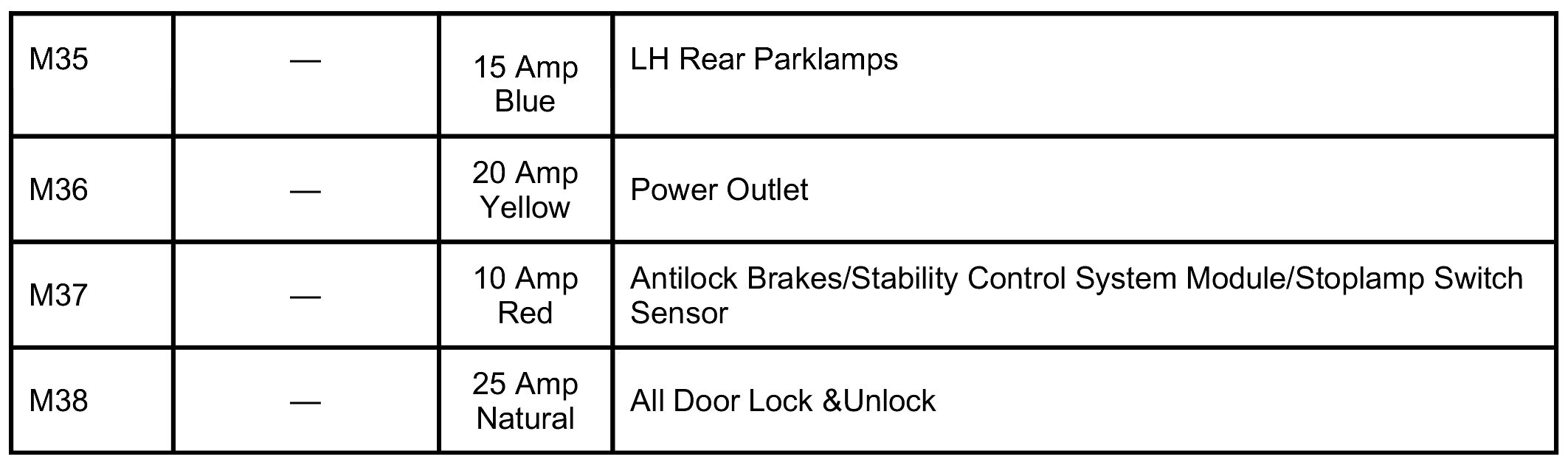

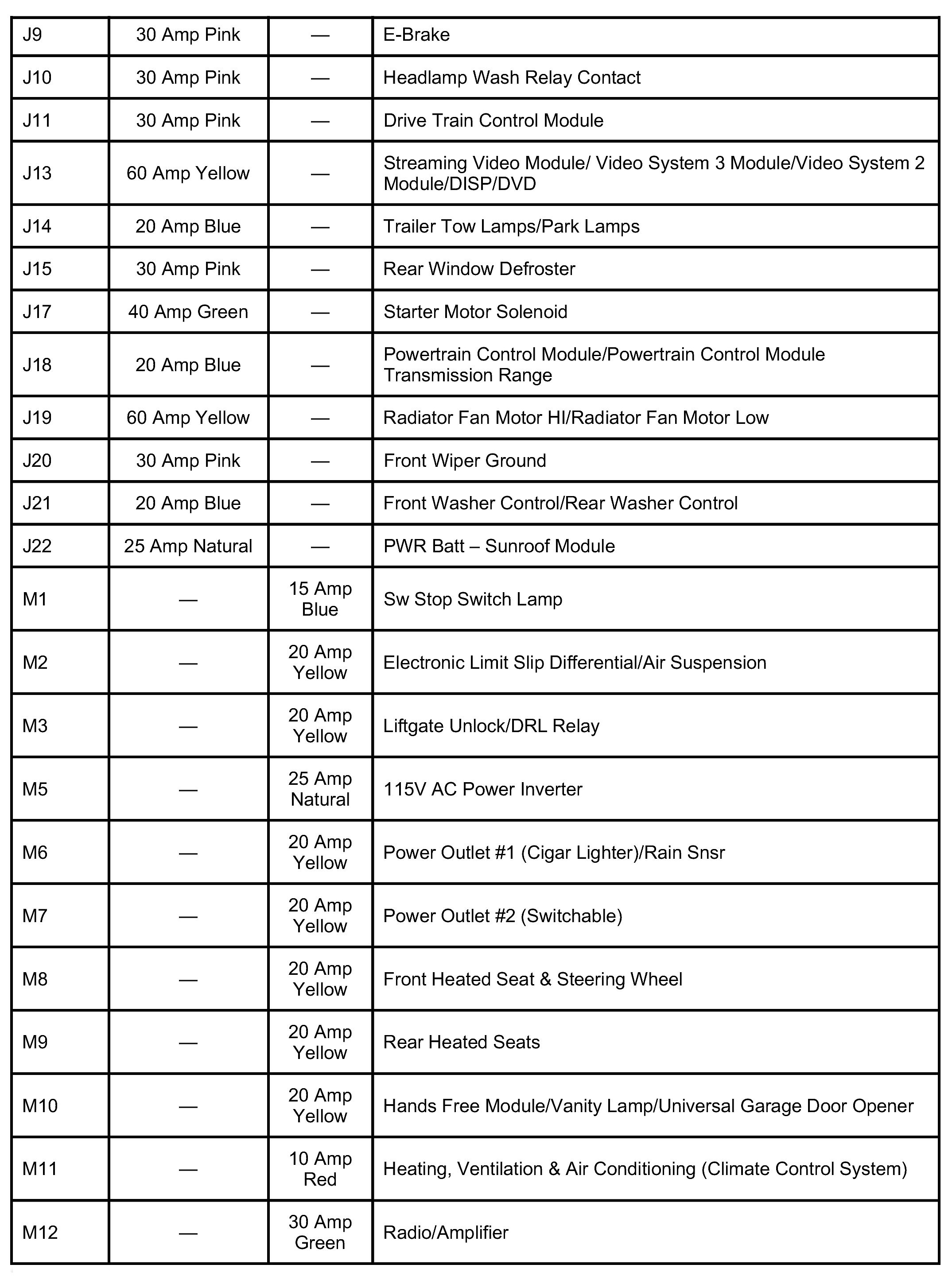

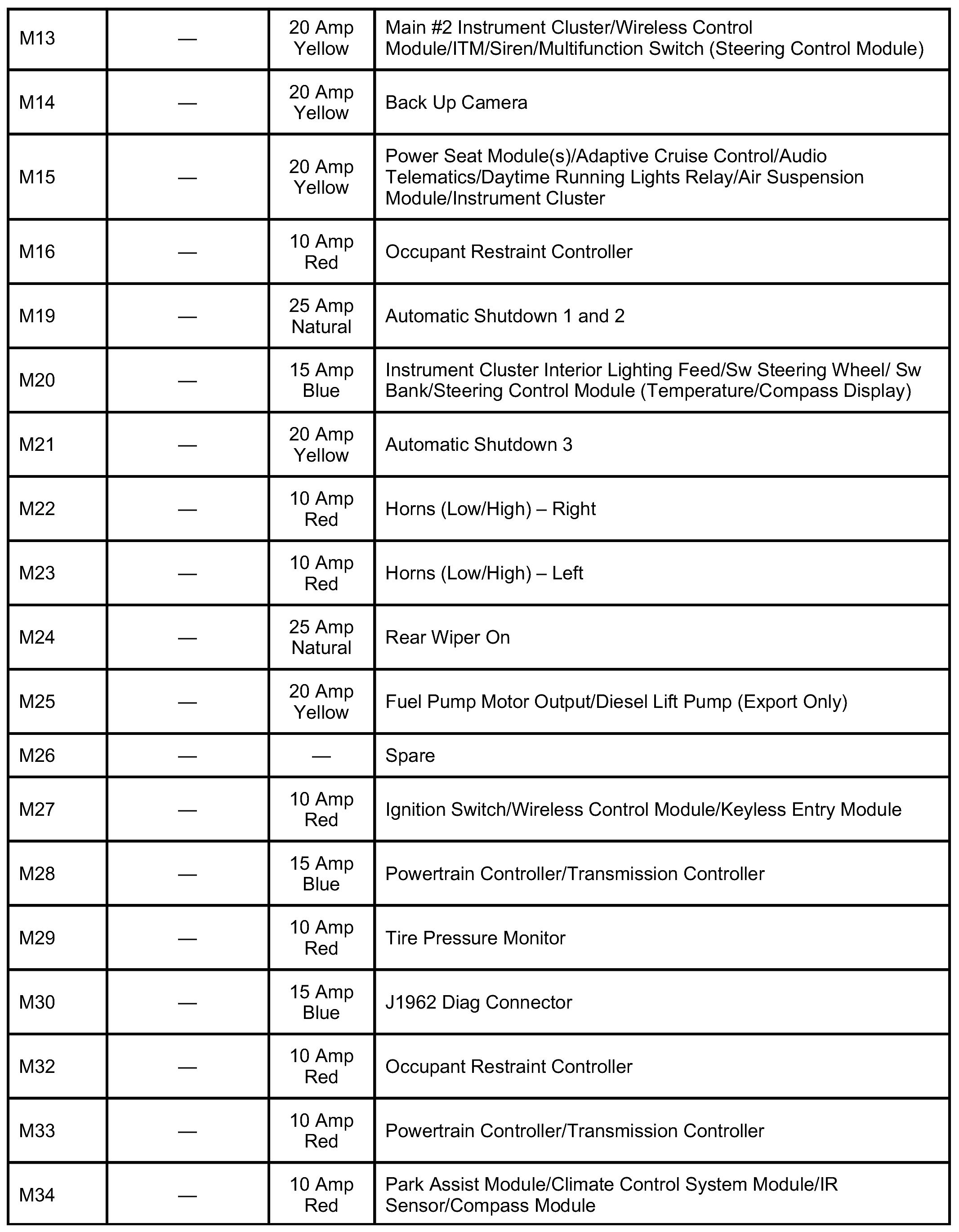

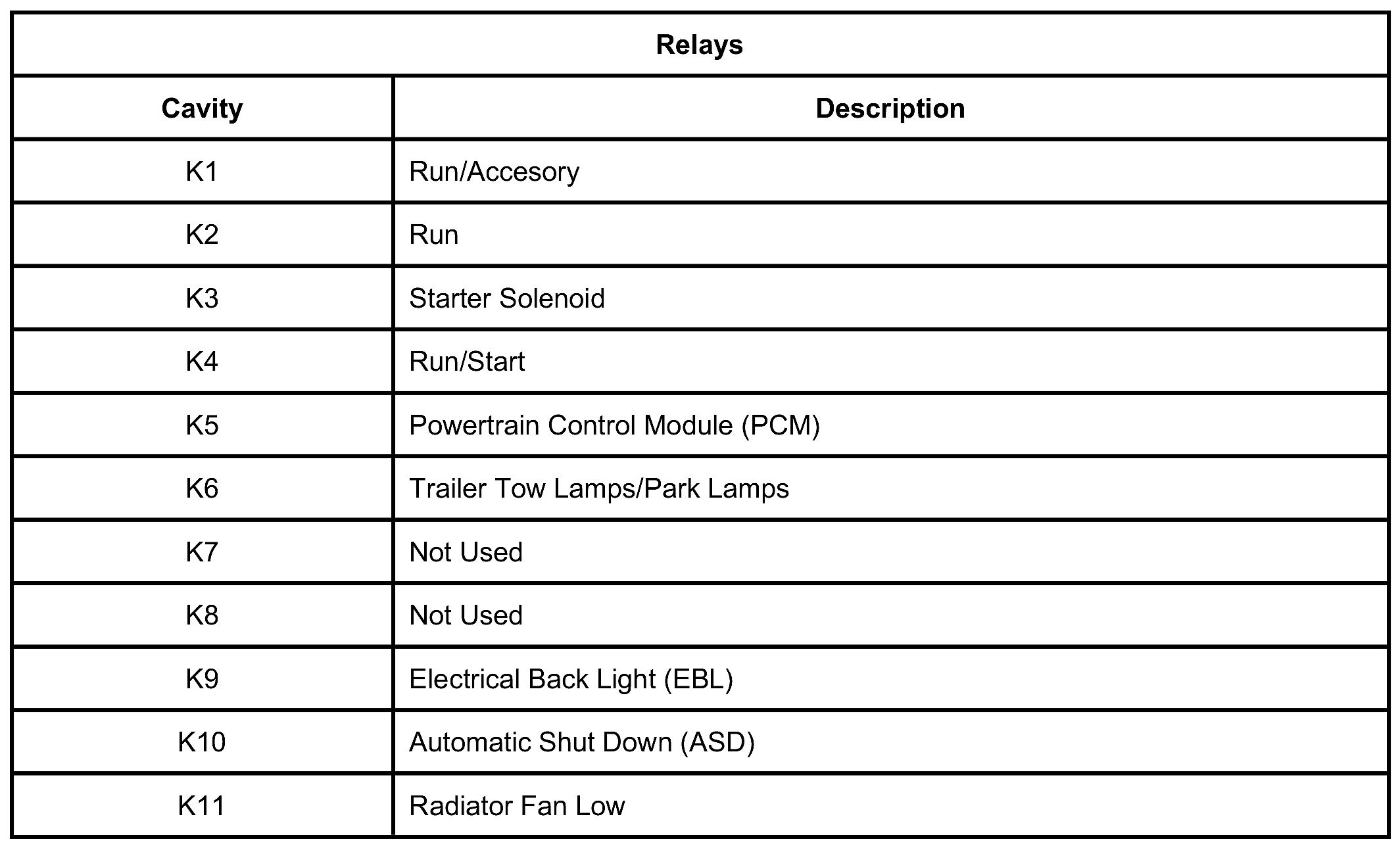

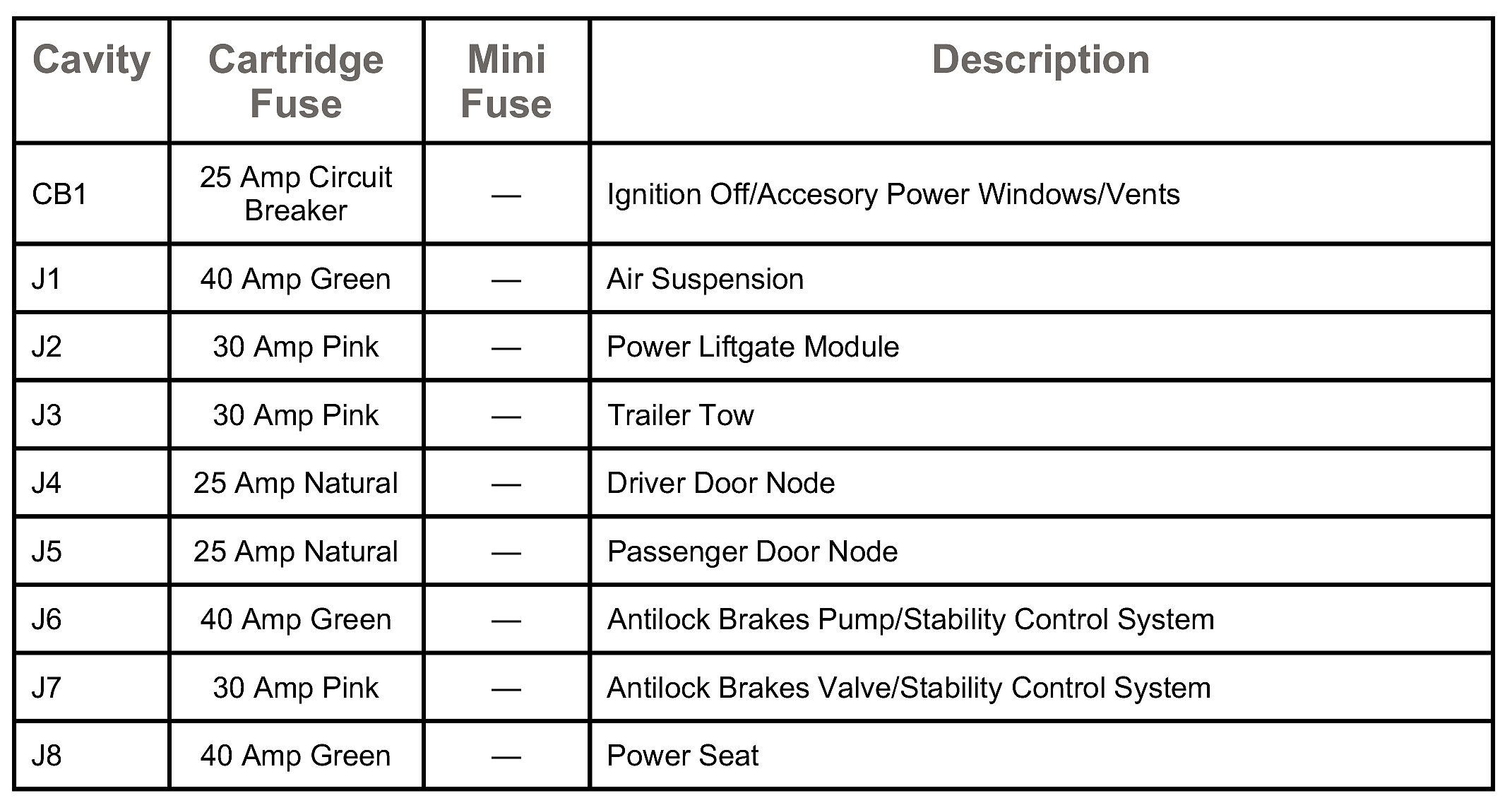

Fuse: Locations

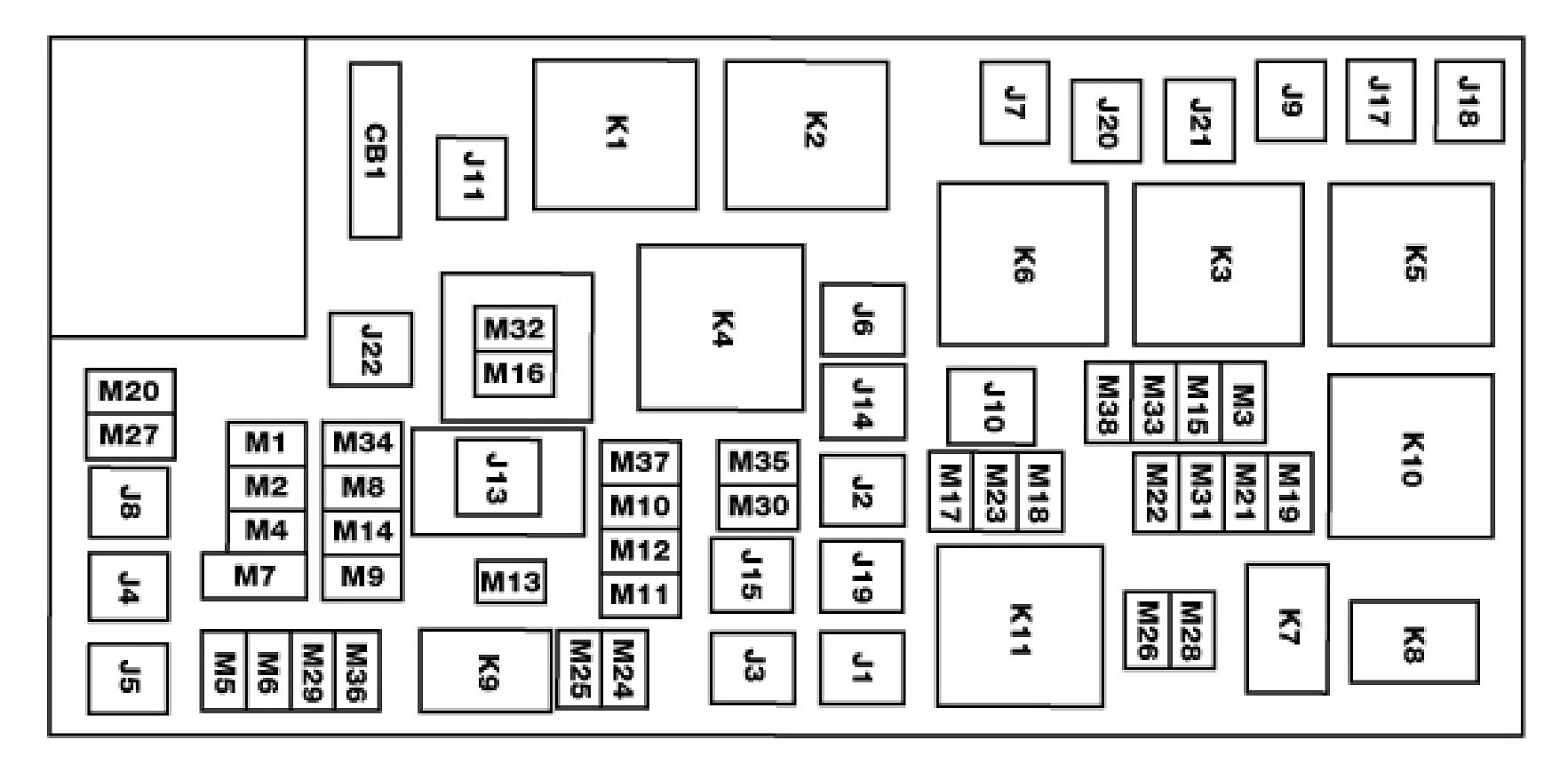

Totally Integrated Power Module
