Outside Rearview Mirror - Installation
INSTALLATION

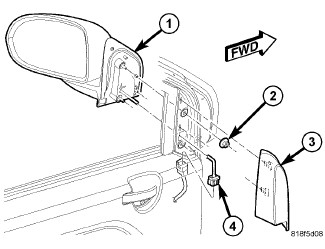

1. Install the mirror (1).
2. Install the nuts (2) and tighten to 5 Nm (44 in. lbs.).
3. Connect the electrical connector (4).
4. Position the mirror trim flag (3) and seat the clips fully.
INSTALLATION
1. Install the mirror (1).
2. Install the nuts (2) and tighten to 5 Nm (44 in. lbs.).
3. Connect the electrical connector (4).
4. Position the mirror trim flag (3) and seat the clips fully.
