Ambient Temperature Sensor - Installation





INSTALLATION

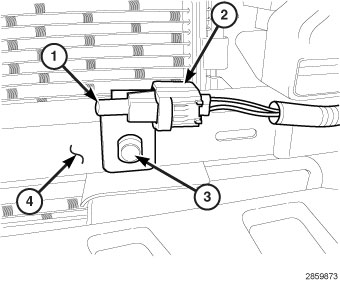

1. Position the ambient air temperature sensor (1) onto the lower grille support bracket (4) and install the push-pin fastener (3).
2. Connect the wire harness connector (2) to the ambient air temperature sensor.
3. Install the grille Grille - Installation.
4. Reconnect the negative battery cable.
