Satellite Video Module - Description





DESCRIPTION





The satellite receiver is located under the driver's side quarter trim panel. It is secured with three mounting fasteners

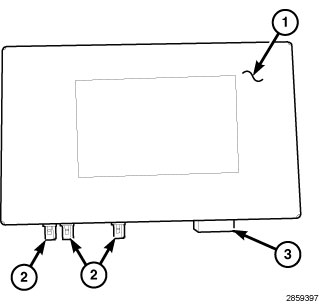

The satellite receiver (1) has three antenna connectors (2) and one wire harness connector (3).
