Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Integrated Power Module
Integrated Power Module

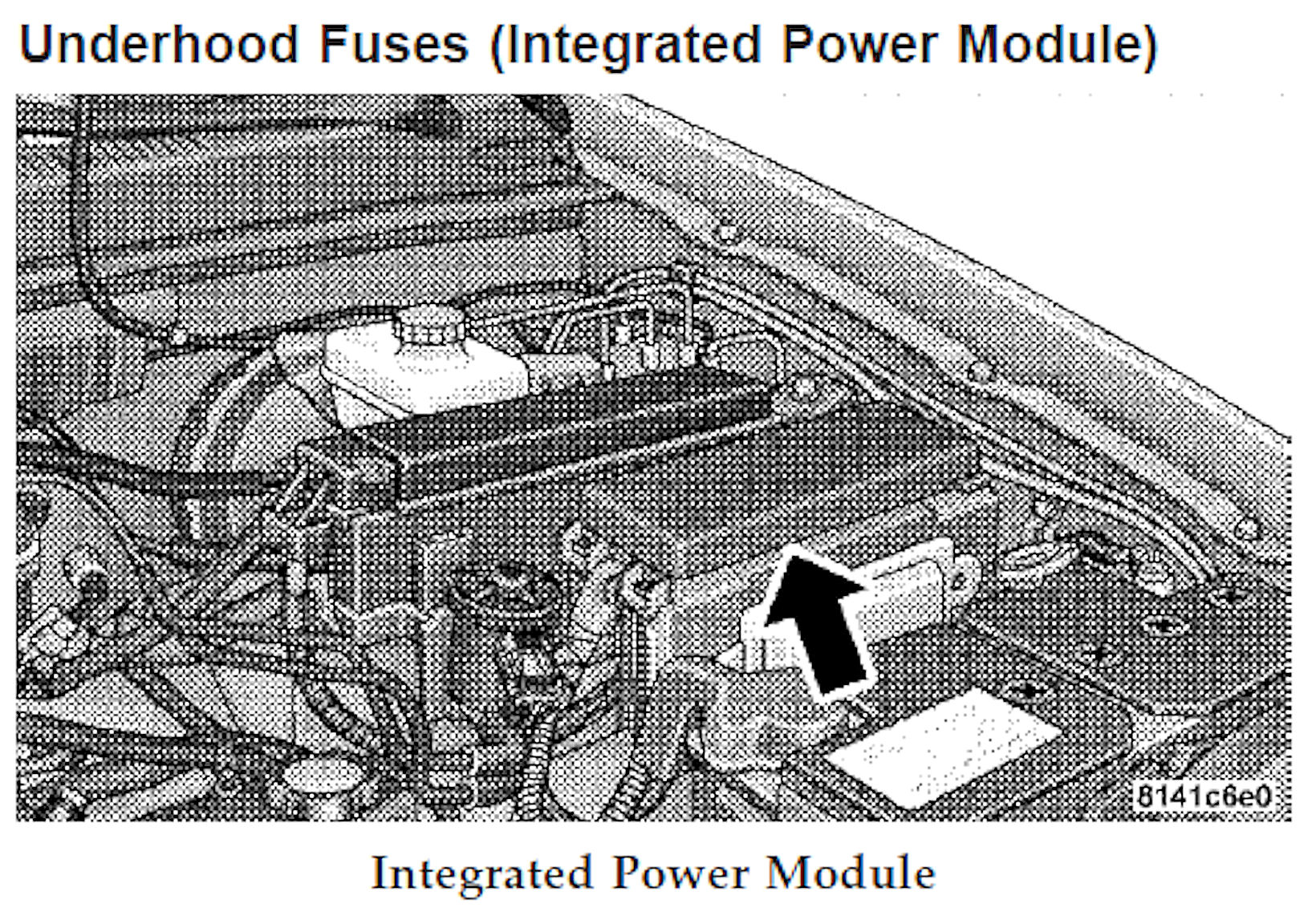

Location:

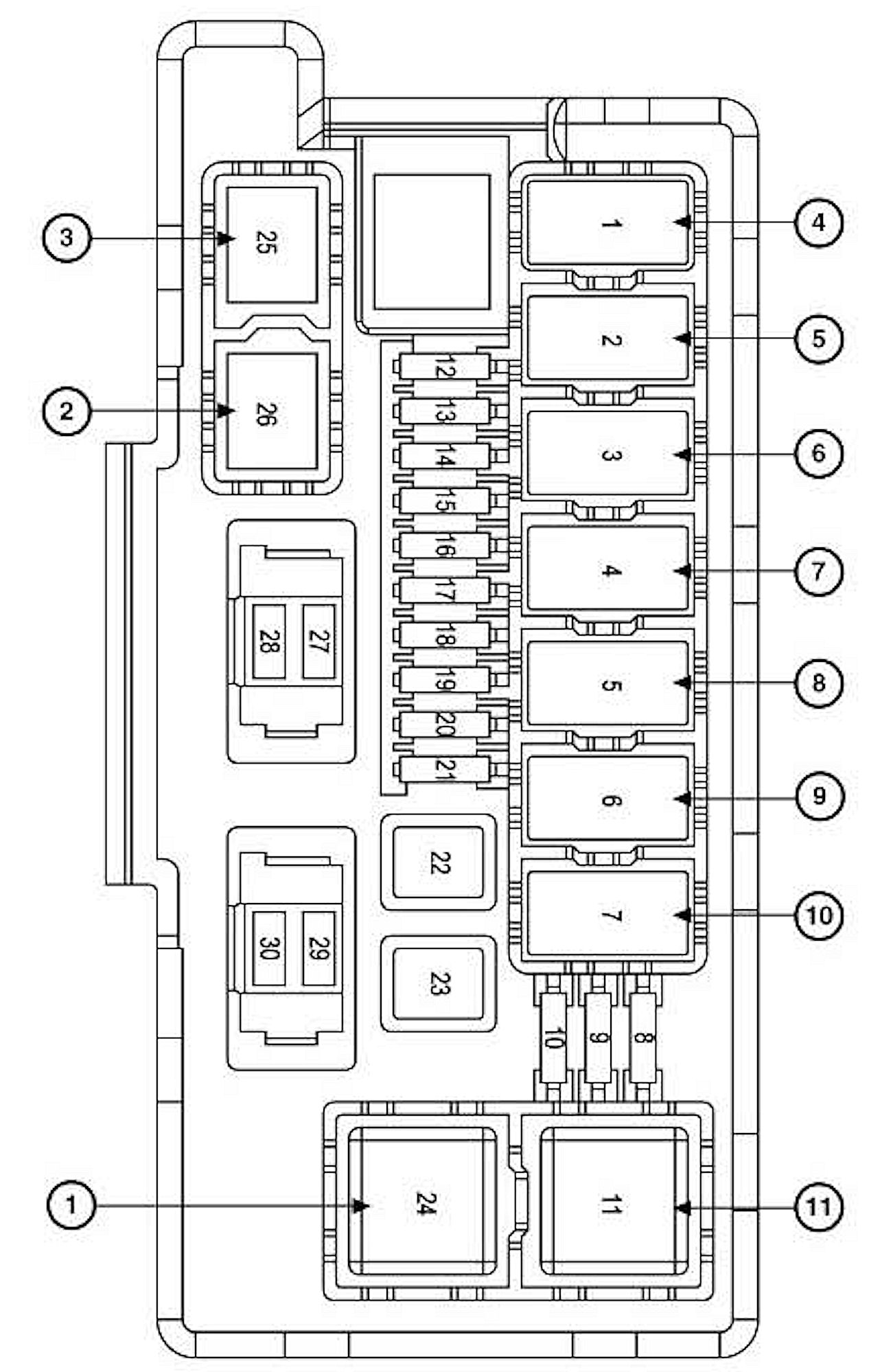

Integrated Power Module:

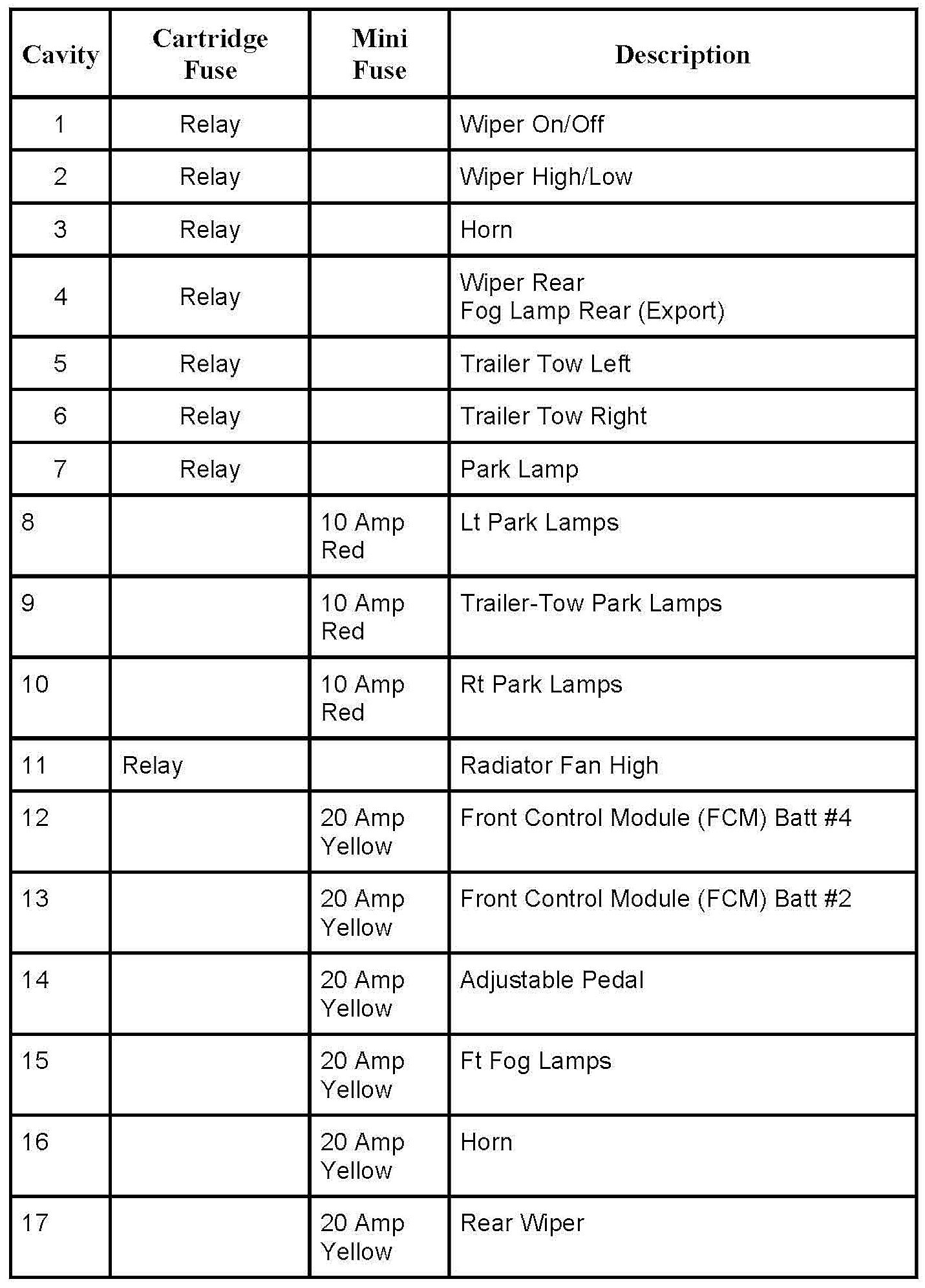

Fuse 1 - 17:

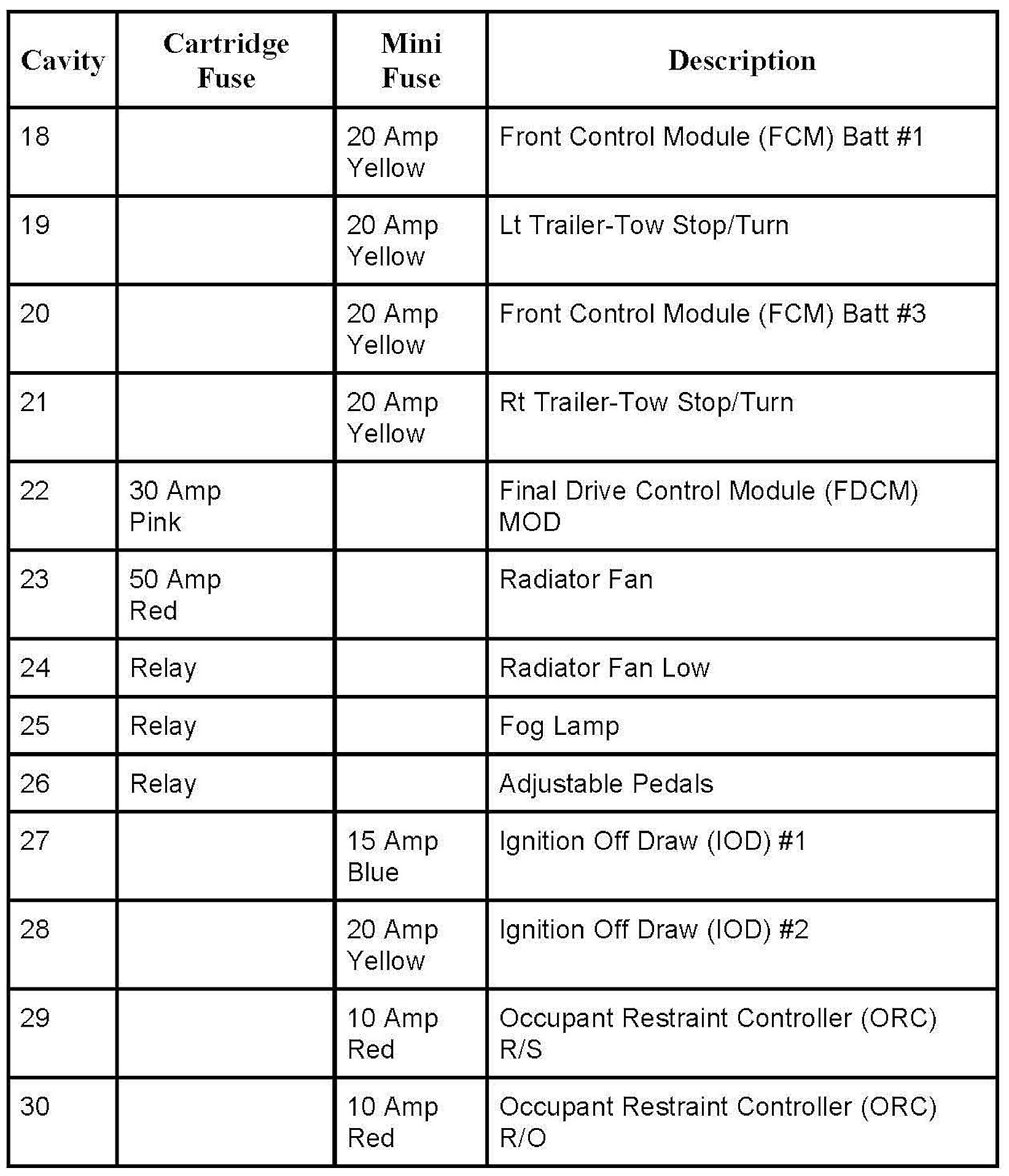

Fuse 18 - 30:
