P0161-O2 Sensor 2/2 Heater Performance: Notes

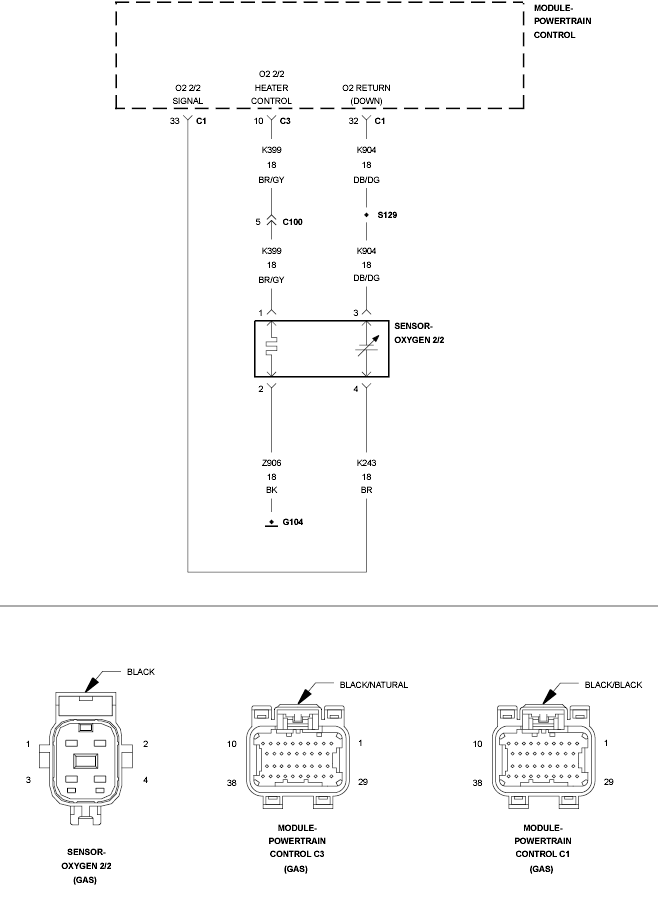

Fig 1: O2 Sensor Heater Circuit

GC0131879

Courtesy of CHRYSLER LLC
