Home >> Jeep >> 2009 >> Wrangler Rubicon, Automatic >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DTCS P0131 To P0204 - NGC >> P0132-O2 Sensor 1/1 Circuit High >> Notes

P0132-O2 Sensor 1/1 Circuit High: Notes

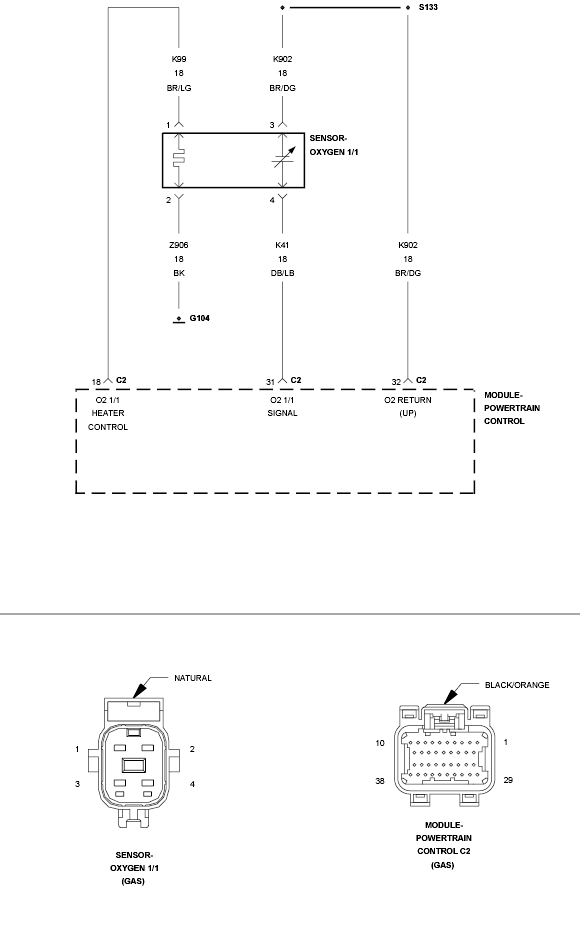

Fig 1: O2 Sensor Heater Circuit

GC0131876

Courtesy of CHRYSLER LLC
