Totally Integrated Power Module C6 (Instrument Panel) 40 Way

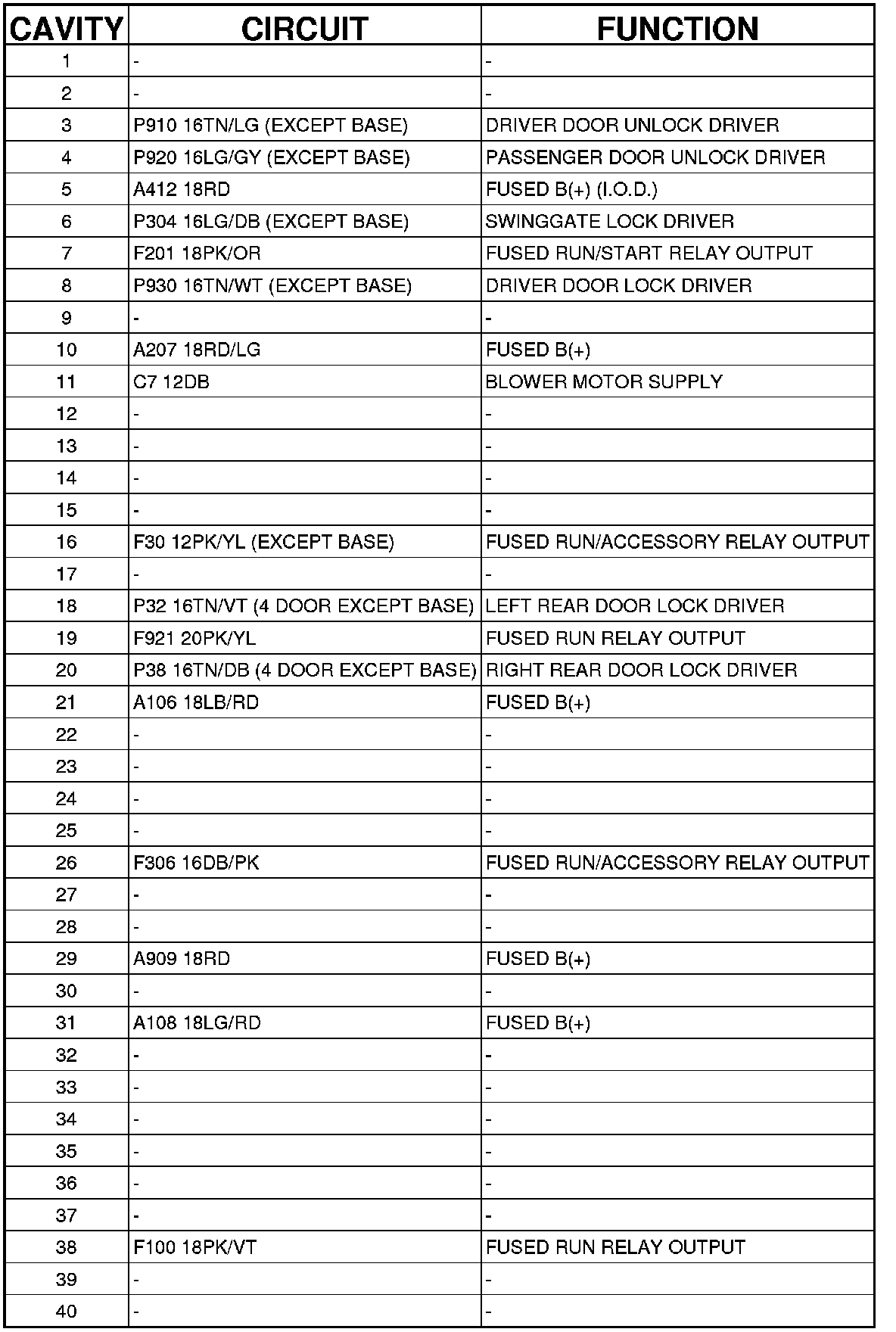

Connector C6 - (INSTRUMENT PANEL) 40 WAY




MODULE-TOTALLY INTEGRATED POWER - (INSTRUMENT PANEL) 40 WAY
