Totally Integrated Power Module C5 (Instrument Panel) 40 Way

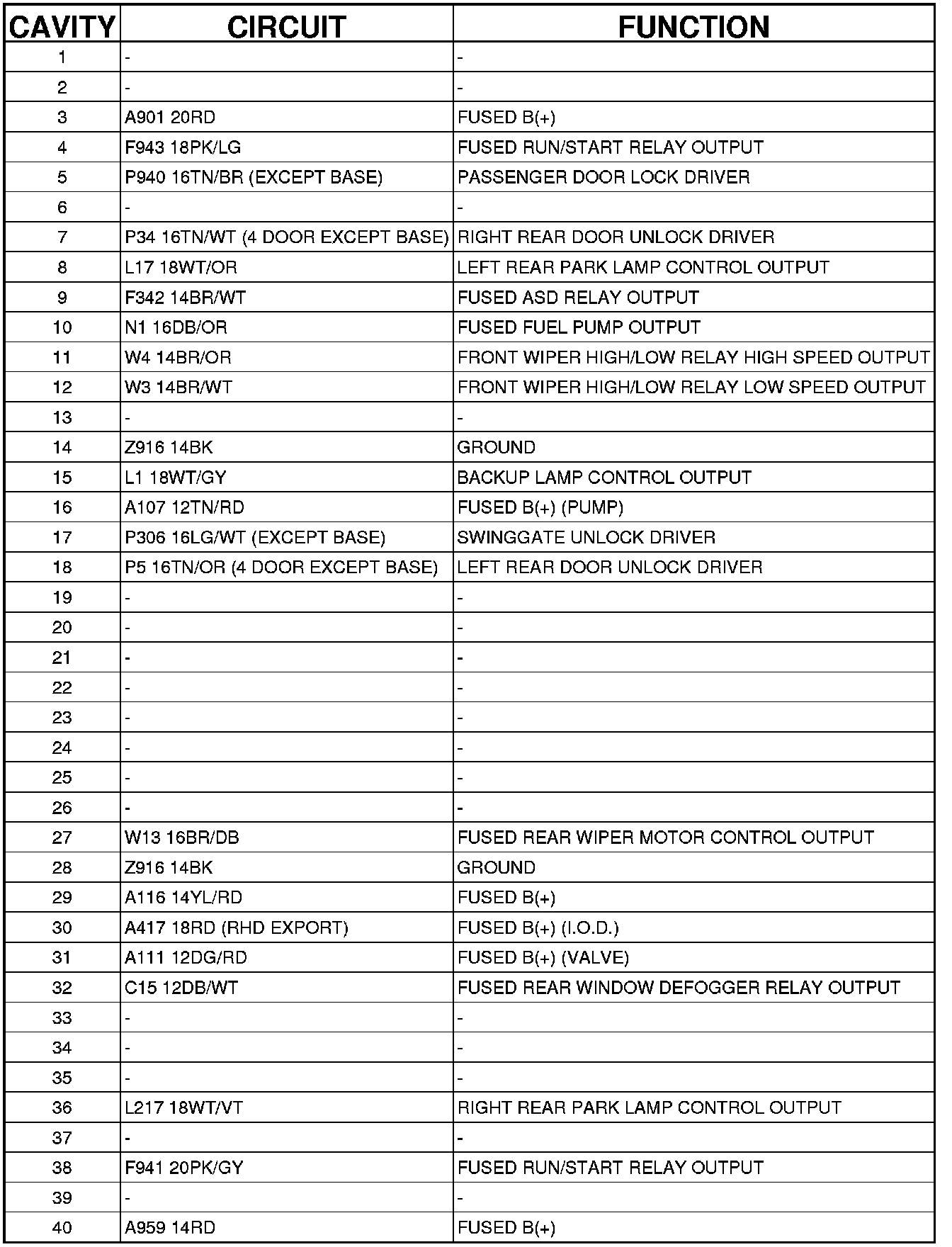

Connector C5 - (INSTRUMENT PANEL) 40 WAY




MODULE-TOTALLY INTEGRATED POWER - (INSTRUMENT PANEL) 40 WAY
