Totally Integrated Power Module C1 (Dash) 50 Way
Totally Integrated Power Module C1 (Dash) 50 Way

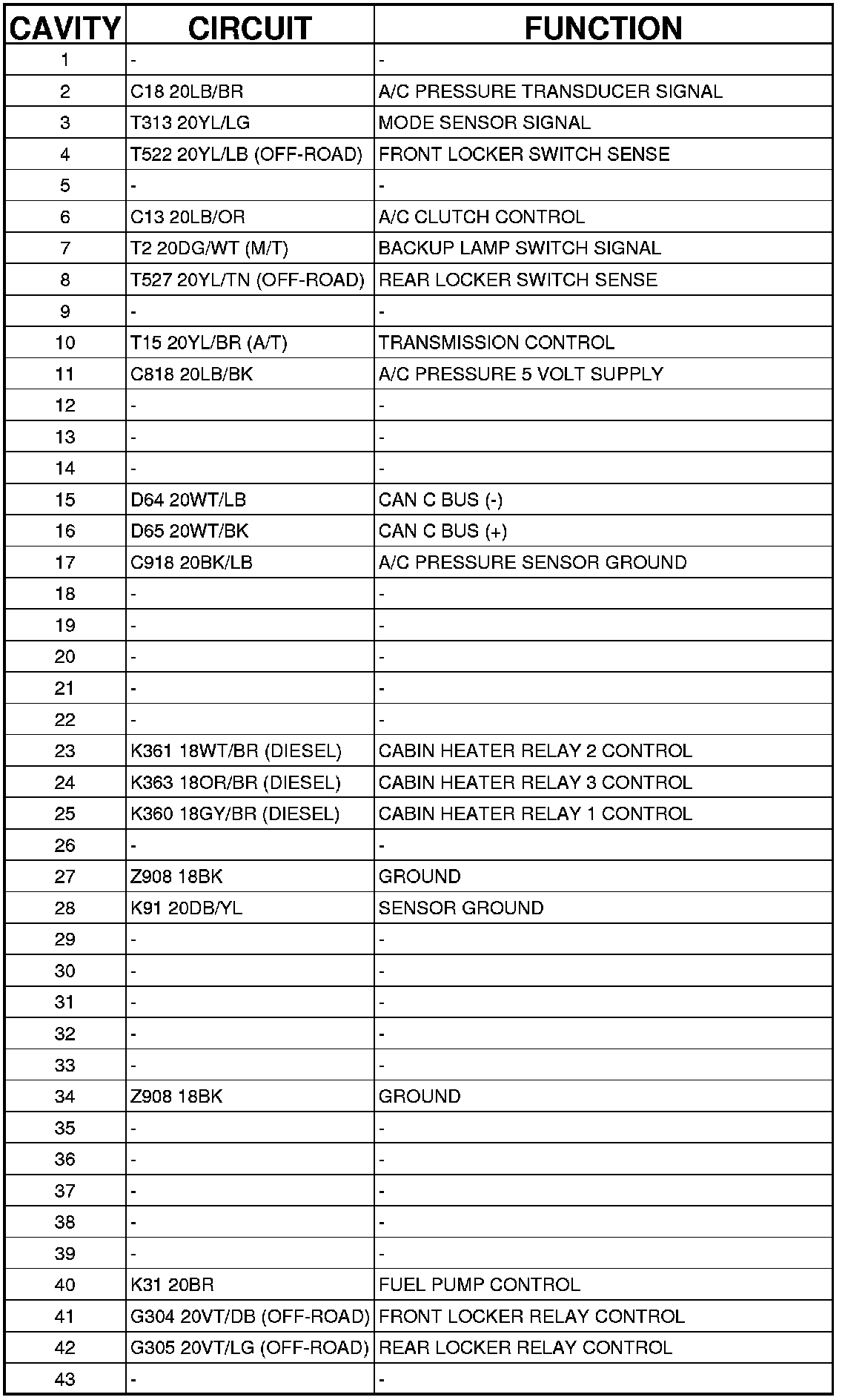

Connector C1 - (DASH) 50 WAY
MODULE-TOTALLY INTEGRATED POWER - (DASH) 50 WAY
