Totally Integrated Power Module C7 (Body) 50 Way
Totally Integrated Power Module C7 (Body) 50 Way

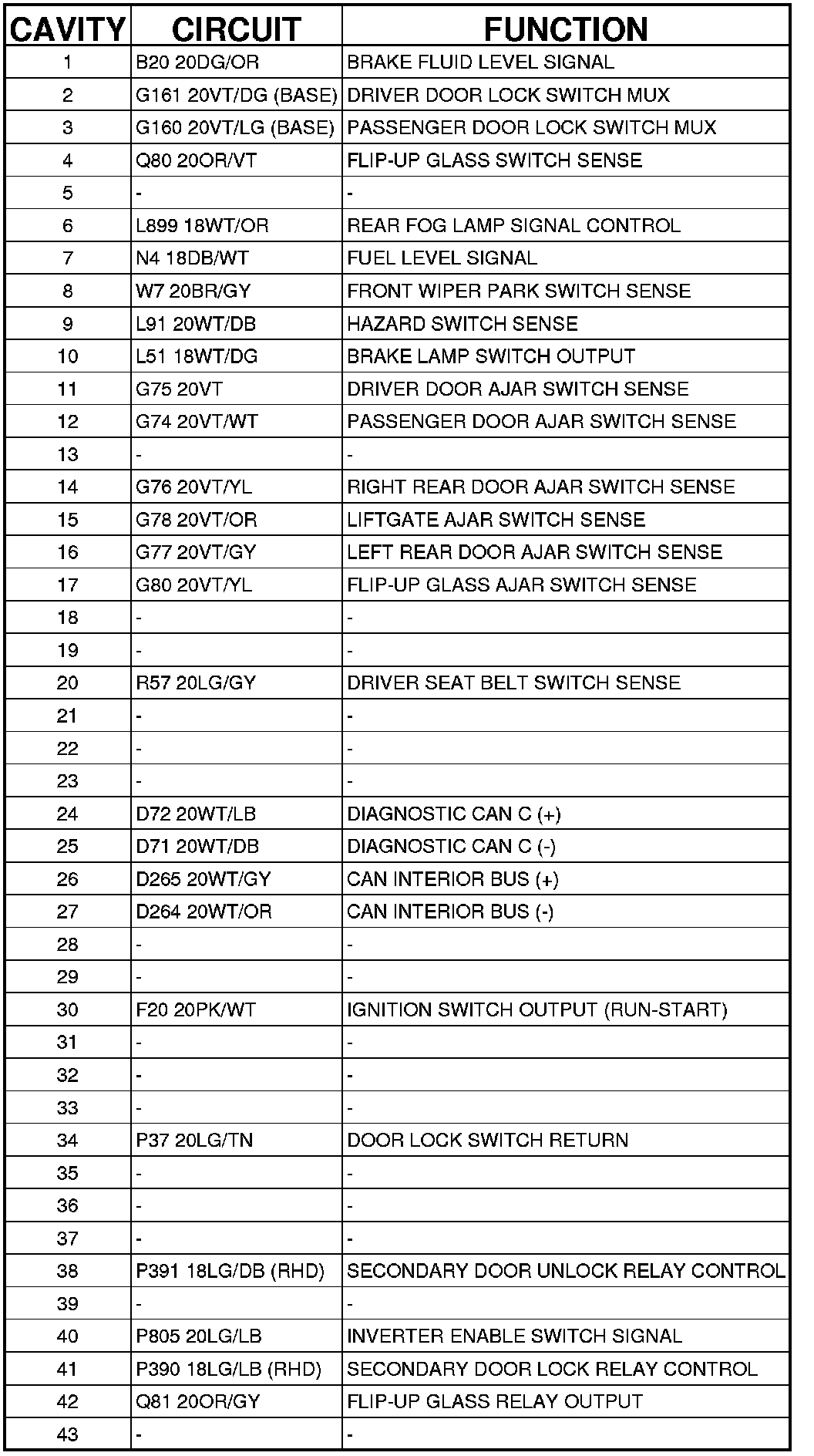

Connector C7 - (BODY) 50 WAY
MODULE-TOTALLY INTEGRATED POWER - (BODY) 50 WAY
