Totally Integrated Power Module C6 (Body) 40 Way
Totally Integrated Power Module C6 (Body) 40 Way

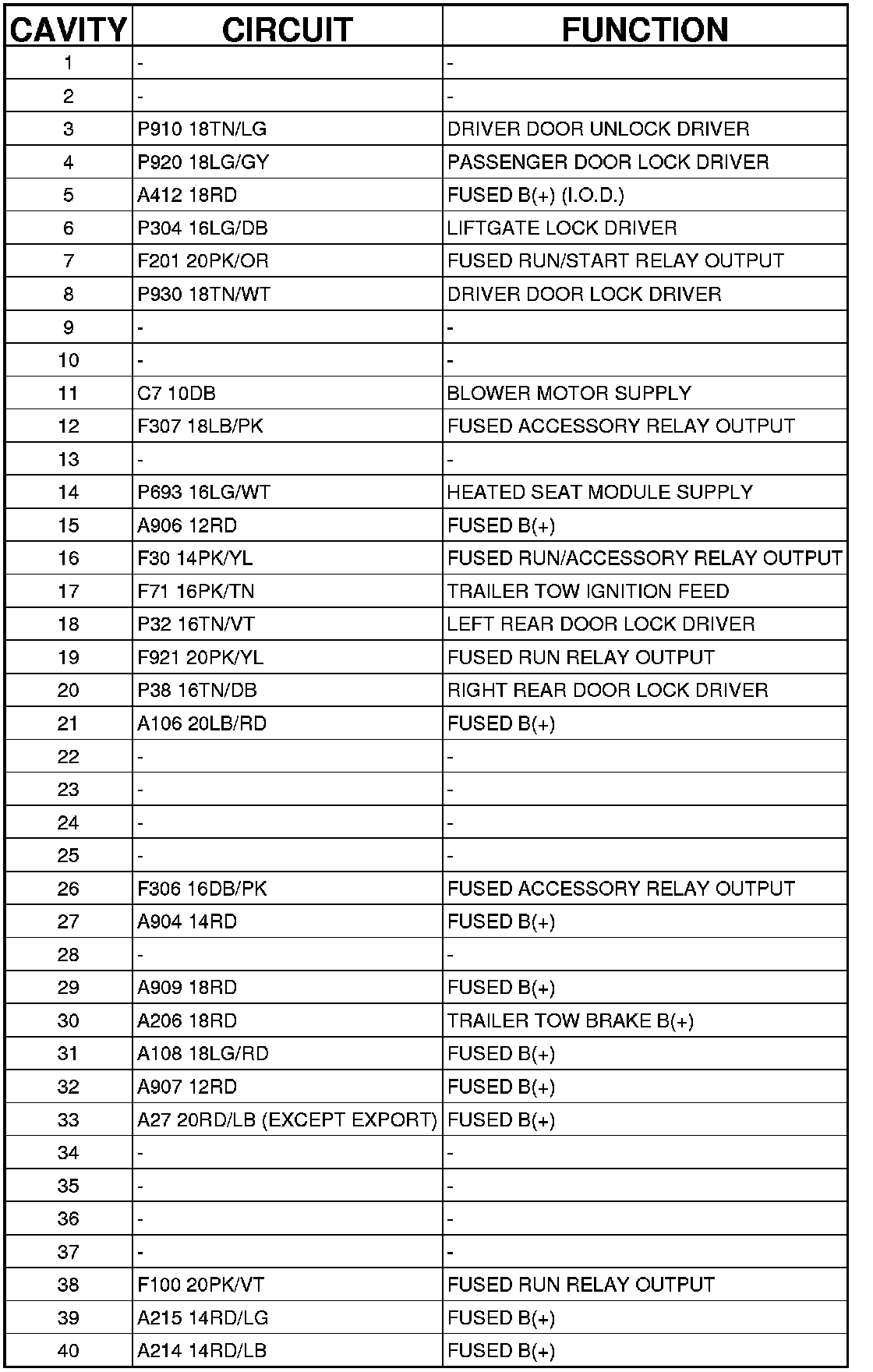

Connector C6 - (BODY) 40 WAY
MODULE-TOTALLY INTEGRATED POWER - (BODY) 40 WAY
