Integrated Power Module C1 (Headlamp And Dash) 40 Way
Integrated Power Module C1 (Headlamp And Dash) 40 Way

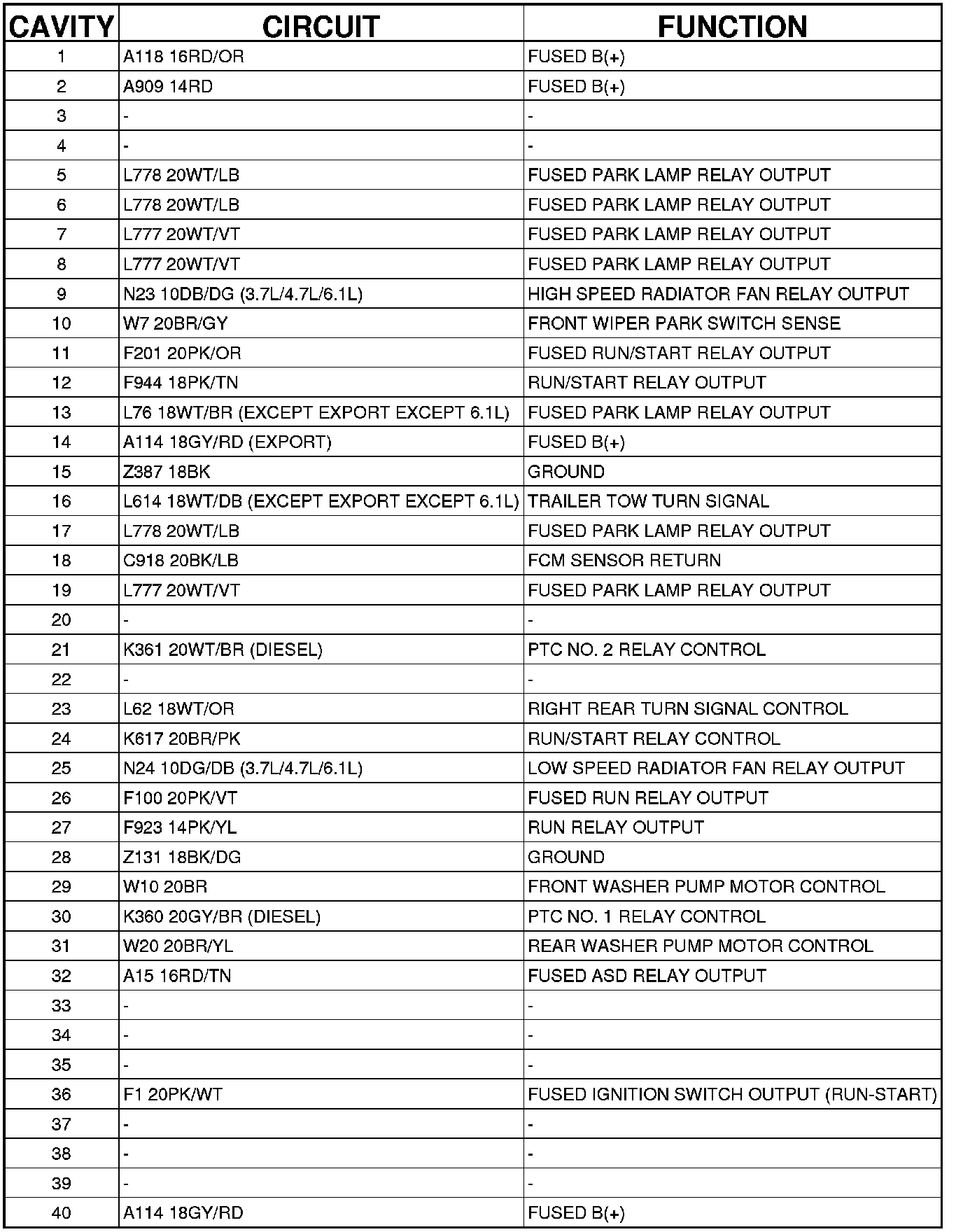

Connector C1 - (HEADLAMP AND DASH) 40 WAY
MODULE-INTEGRATED POWER - (HEADLAMP AND DASH) 40 WAY
