Driver Power Window Switch C2 (Left/Right Front Door) 8 Way

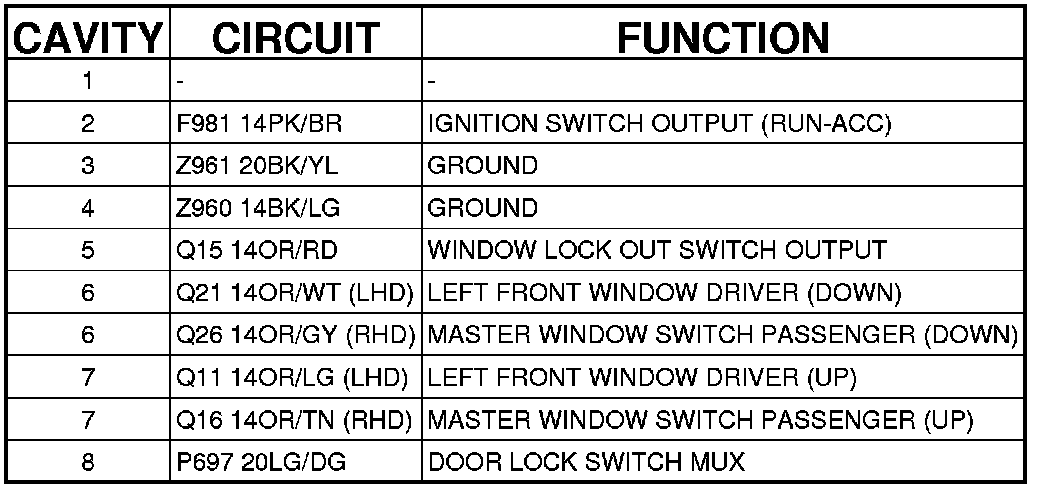

Connector C2 - (LEFT/RIGHT FRONT DOOR) 8 WAY

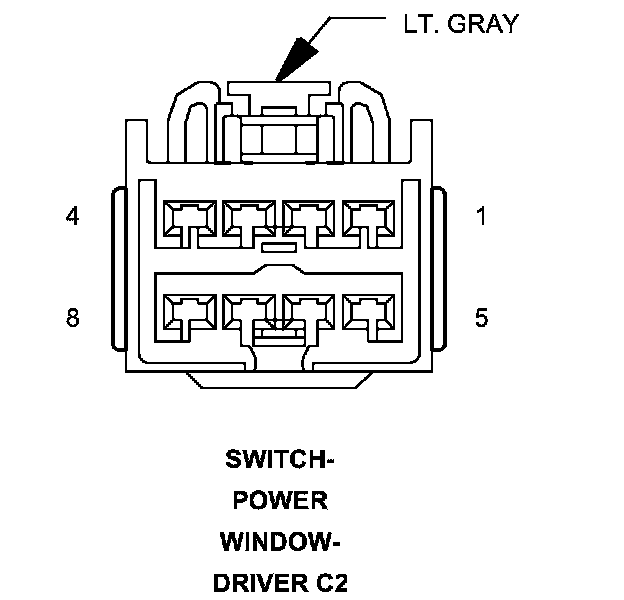

SWITCH-POWER WINDOW-DRIVER - (LEFT/RIGHT FRONT DOOR) 8 WAY
