Sunroof / Moonroof Motor

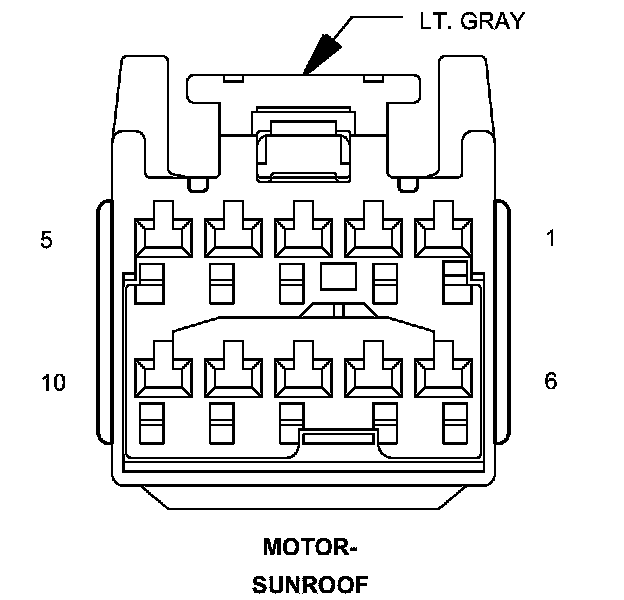

Connector - (A-PILLAR JUMPER) 10 WAY

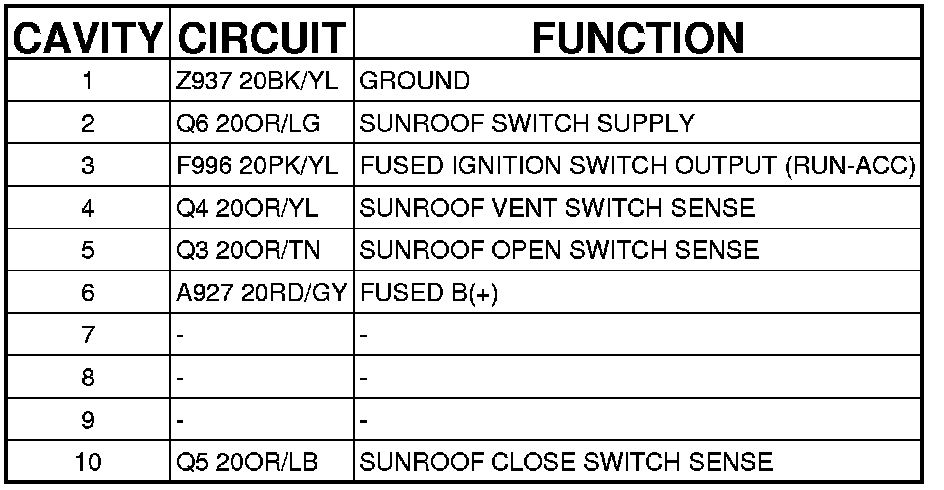

MOTOR-SUNROOF - (A-PILLAR JUMPER) 10 WAY
