P0521-Engine Oil Pressure Sensor Performance: Notes

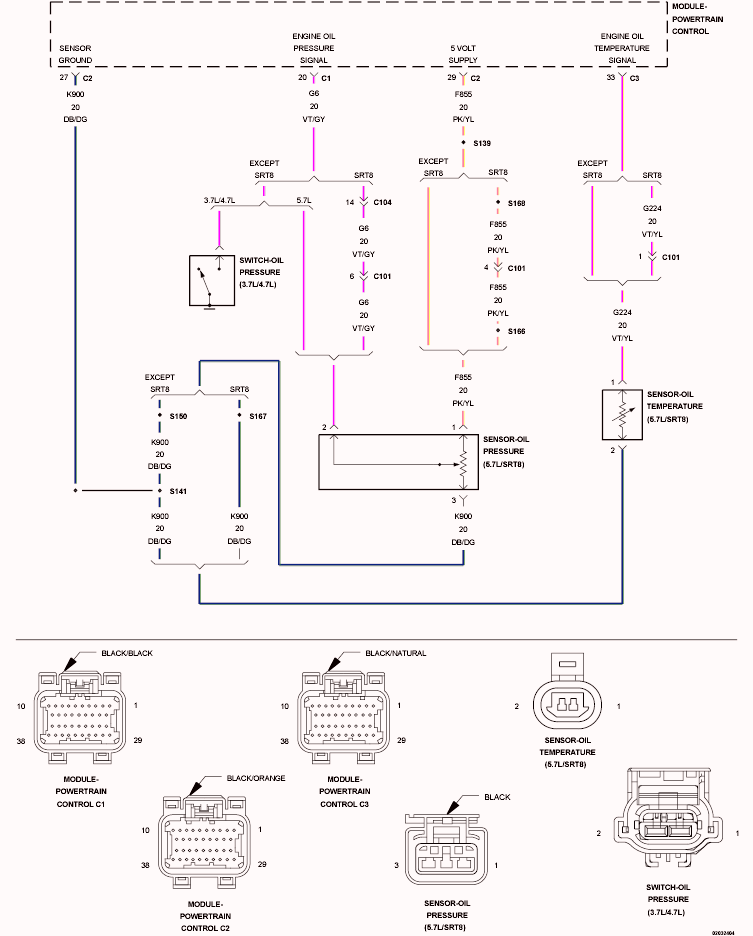

Fig 1: Engine Oil Pressure Sensor Circuit

GC0132721

Courtesy of CHRYSLER LLC
