Splash Shield - Installation

INSTALLATION

Front

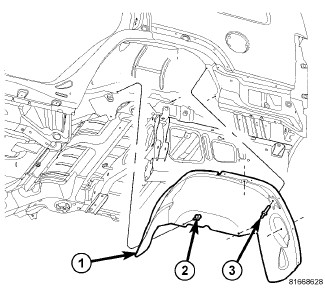

1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner . Body Side Molding - Installation
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.

Rear





1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner . Body Side Molding - Installation
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.
