Junction Block C2 (Instrument Panel) 40 Way

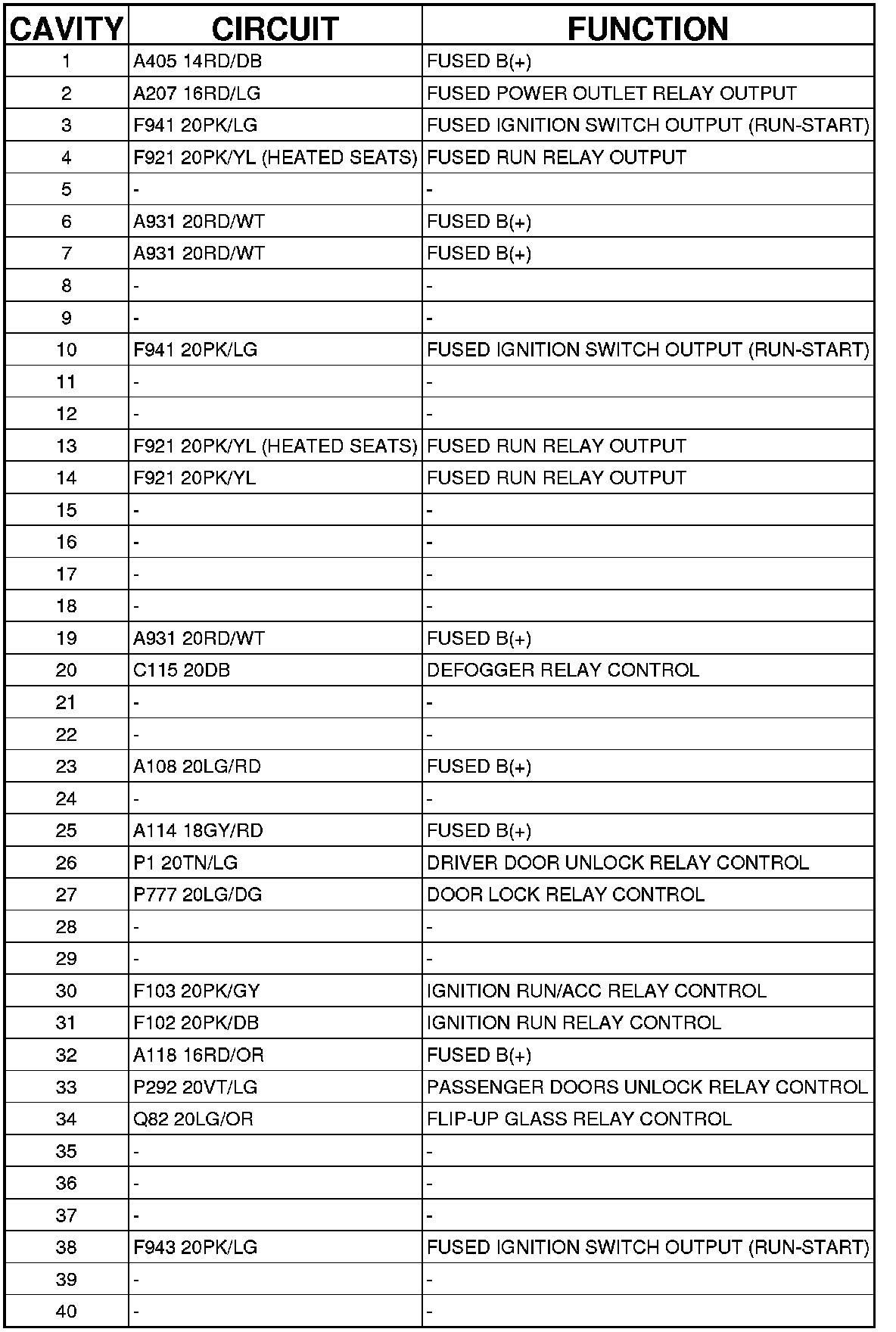

Connector C2 - (INSTRUMENT PANEL) 40 WAY
JUNCTION BLOCK - (INSTRUMENT PANEL) 40 WAY
