EGR Control Solenoid: Locations

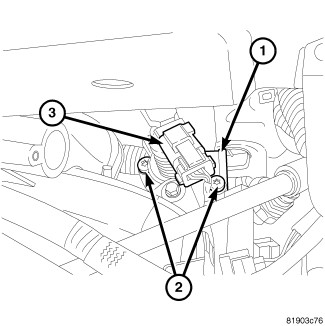

The electronic EGR valve and solenoid assembly (1) is attached to the rear of the left cylinder head.
